15.4 Matrix5 Operator Interface
The Matrix5 operator interface is used to enter and display molding parameters. It consists of
two main components: the touch monitor and the master control unit (MCU). Refer to
Figure 15-12.
The operator interface is also available in the configurations shown in Table 15-1.

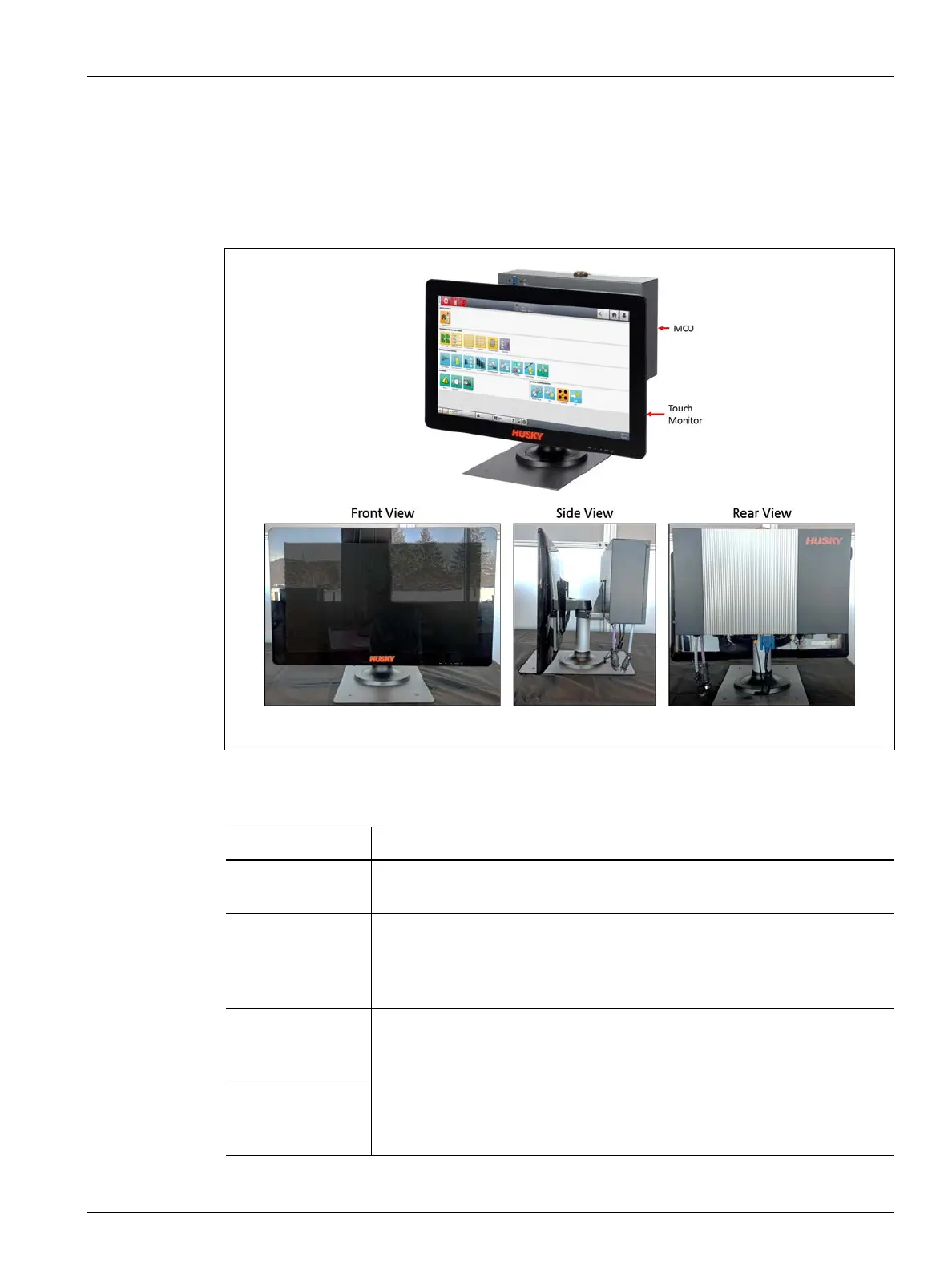

Figure 15-12 Matrix5 Operator Interface
Table 15-1 Configuration Alternatives
Configuration Description
Standalone This is the standard configuration with the operator interface assembly
mounting to the top of the controller mainframe.
Alternative Mount This configuration is used for tall mainframes where the touch monitor is out
of reach for the average user. It moves the touch monitor to the front of the
controller, so it is easier to access. The MCU remains on mounted to the top
of the controller mainframe.
Remote Mount This configuration includes 7.6 m (25 ft) cables that allow the operator
interface assembly to be mounted at a location away from the controller
mainframe. This is a paid option.
Dual Monitor This configuration includes a second touch monitor that can be mounted at
a location away from the standalone operator interface to allow the
controller to be accessed from two separate locations. This is a paid option.
