160 Curve Data Point
Available process variables for heat zones are:
• Actual Current
• Actual Earth Leakage (shown only when configured in System Setup)
• Actual Power
• Actual Temperature
• Actual Temperature Setpoint
• Actual Voltage
Available process variables for UltraSync-E (if installed) are:
• Close Position
• Closing Duration
• Closing Peak Force
• Motor I2T
• Motor Temperature
• Open Position
• Opening Duration
• Opening Peak Force
The Cycle Time process variable is always available also.
The process history holds 20,000 records. Records contain values for all of the logged values
for each zone in the system. A frequent sample rate fills the database faster than a slower
sample rate.
12.2.1 Curve Data Point
For a description of the data at a some point on the graph, touch that location and the
description shows in a box. Refer to Figure 12-4.
The curve information is described in Table 12-2.

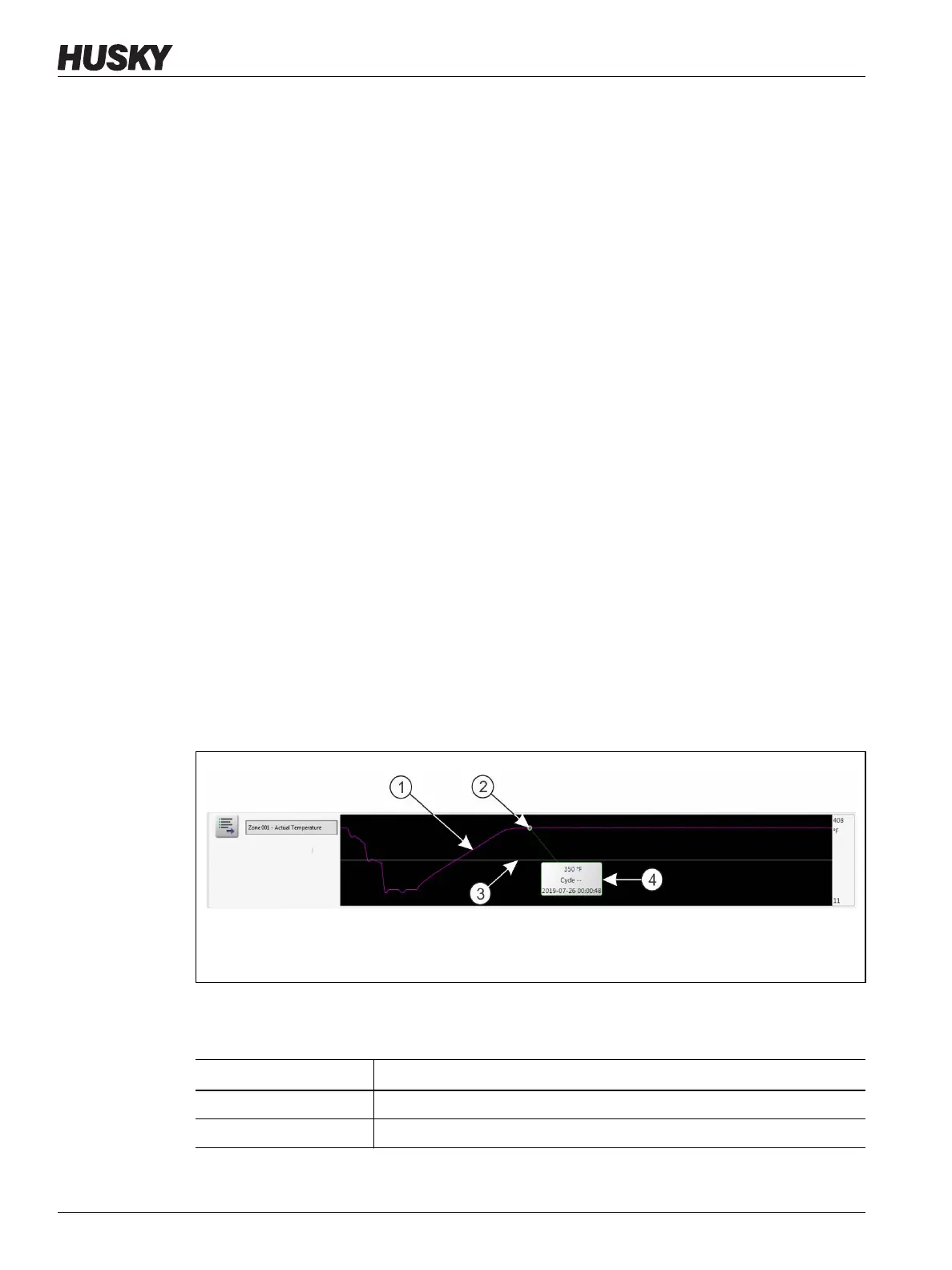

Figure 12-4 History Plot Curve
1. Curve 2. Curve Data Point 3. Midline 4. Description of Data
Table 12-2 History Plot Screen Curve Data Descriptions
Screen Element Description
Curve Graphical representation of data values.
Curve Data Point A selected data point value on the curve.
