(tandem axles). This Alternate Driving Configuration is
shown in Figure 3-19.
Standard Driving Configuration
In the Standard Driving Configuration, push and hold the
right side of the Rear Steer Switch to cause the wheels on
the rear tandem axles to turn left, causing the crane to turn
right as shown in Figure 3-20. Release the switch when the
rear wheels are pointed in the desired direction.
Push and hold the left side of the Rear Steer Switch to cause
the wheels on the rear tandem axles to turn right, causing the
crane to turn left as shown in Figure 3-21. Release the
switch when the rear wheels are pointed in the desired
direction.
When rear wheels are not centered, the Rear Wheels Not
Centered Indicator in the Alerts Area (1, Figure 4-74) of the
Operating Display Module (ODM) comes on.
In the Standard Driving Configuration, if rear wheels are
turned to the left, straighten the rear wheels by pushing and
holding the left side of the switch (turns the wheels right) until
the Rear Wheels Not Centered Indicator goes off.
In the Standard Driving Configuration, if rear wheels are
turned to the right, straighten the rear wheels by pushing and
holding the right side of the switch (turns the wheels left) until
the Rear Wheels Not Centered Indicator goes off.

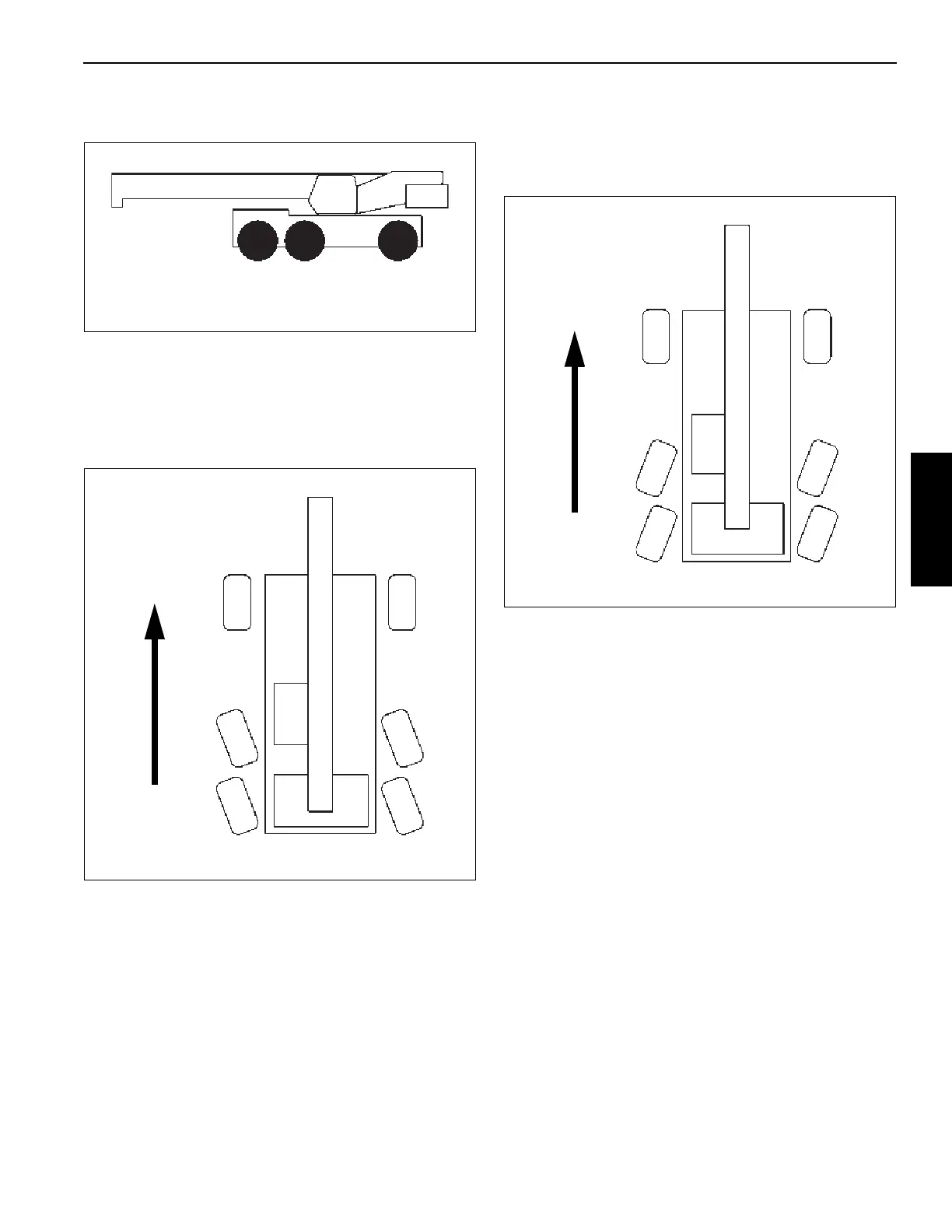

FIGURE 3-19
Alternate Driving Configuration
9898-2
FIGURE 3-20
Direction
of Travel
9898-8
FIGURE 3-21
Direction
of Travel
9898-7
