OPERATING CONTROLS AND FEATURES GRT9165 OPERATOR MANUAL
3-4 Published 7-23-2020, Control # 668-02

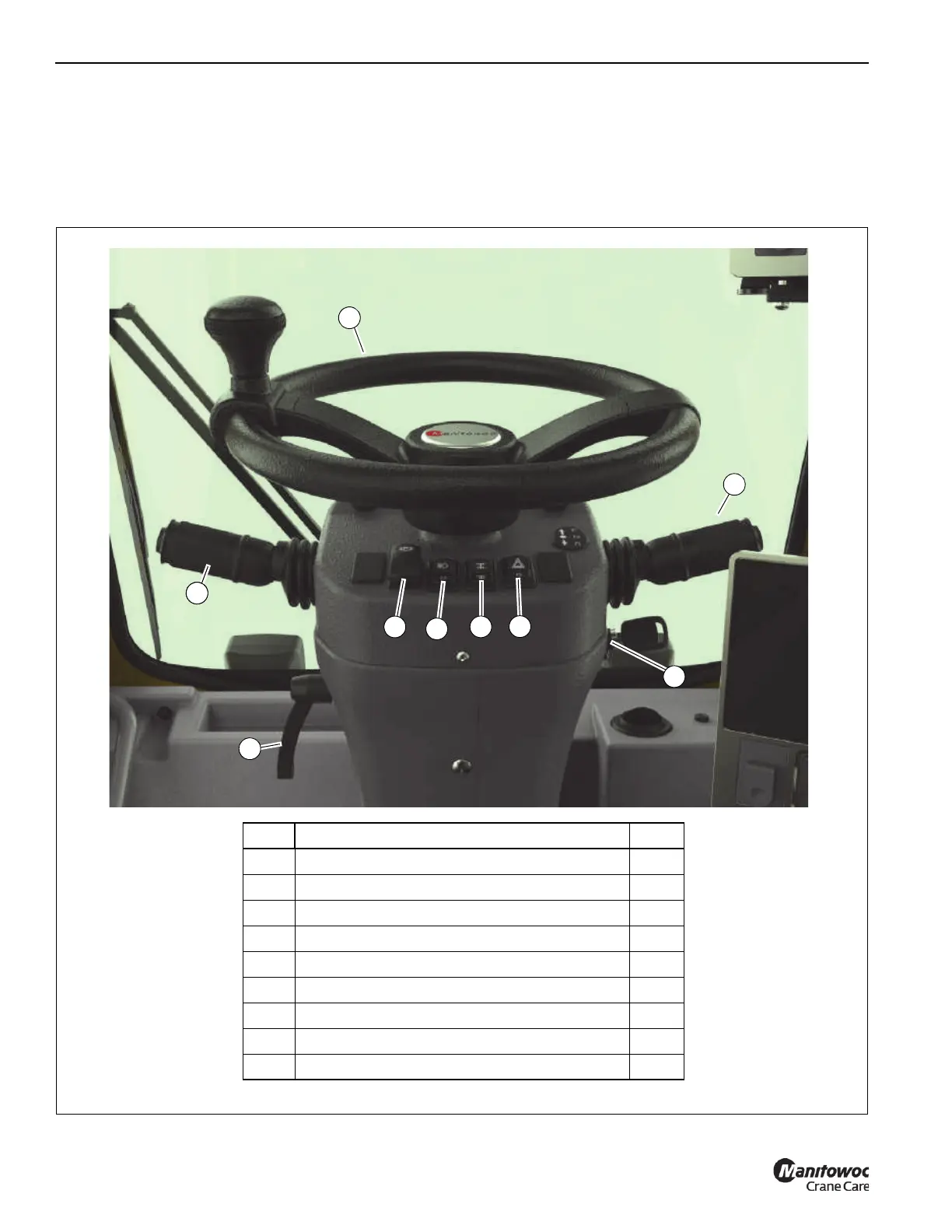

STEERING WHEEL AND COLUMN
The steering wheel and column assembly is a pedestal style
tilt and telescoping steering column. It can tilt rearward 30° or
telescope 60 mm (2.3 in). The steering column includes the
ignition switch, as well as levers, and switches for driving the
crane (Figure 3-2).
Item Description Page
1 Steering Wheel 3-5
2 Turn Signal Lever and Horn Controls 3-6
3 Parking Brake Switch 3-7
4 Headlights Switch 3-7
5 Drive Axle Selector Switch 3-7
6 Hazard Lights Switch 3-8
7 Transmission Shift Lever 3-8
8 Ignition Switch 3-8
9 Steering Column Tilt and Telescope Lock Lever 3-9
9838-6
FIGURE 3-2
4
3
65
7
1
9
2
1
8
