Manitowoc Grove GRT9165 User Manual

Grove Published 7-23-2020, Control # 668-02 3-21
GRT9165 OPERATOR MANUAL OPERATING CONTROLS AND FEATURES
3
Rated Capacity Limiter Display Module
(RDM)
The Rated Capacity Limiter Display Module (RDM)
(1, Figure 3-14) allows the operator to easily program the
RCL by entering a code number from the Load Chart Manual
or by using the RCL setup wizard.
Refer to Using the Rated Capacity Limiter Display Module
(RDM), page 4-159 for more information regarding the use of
the module in the operation of the crane.
Operator Display Module (ODM)
The Operator Display Module (ODM) (2, Figure 3-14) allows
the operator to do the following actions:
• Monitor performance of crane systems
• Telescope the boom (semi-automatic and manual
modes)
• Extend/retract the outriggers
• Remove/install the counterweight
• Operate the 360° superstructure lock mechanism
• Operate the boom extension stowage actuators
• Raise/lower the suspension
• Set the working range limits (WRL)
• View engine, transmission, and crane fault codes
• View software versions, license information, and hours
of operation for each crane function
• Set controller curves and maximum speeds,
engage/disengage ECO mode, and inhibit operation of
the engine cleaning system
• Set units of measure (metric/imperial), screen display
brightness, and time (24 hour or AM/PM)
Refer to Using the Operator Display Module (ODM), page
4-72 for more information regarding the use of the module in
the operation of the crane.
Navigation Control Pad
The Navigation Control Pads (3, Figure 3-14) on the RDM
and ODM allow the operator to navigate through the function
screens of the related module. The control buttons on the
two Navigation Control Pads are identical in configuration
and perform the same navigation functions.

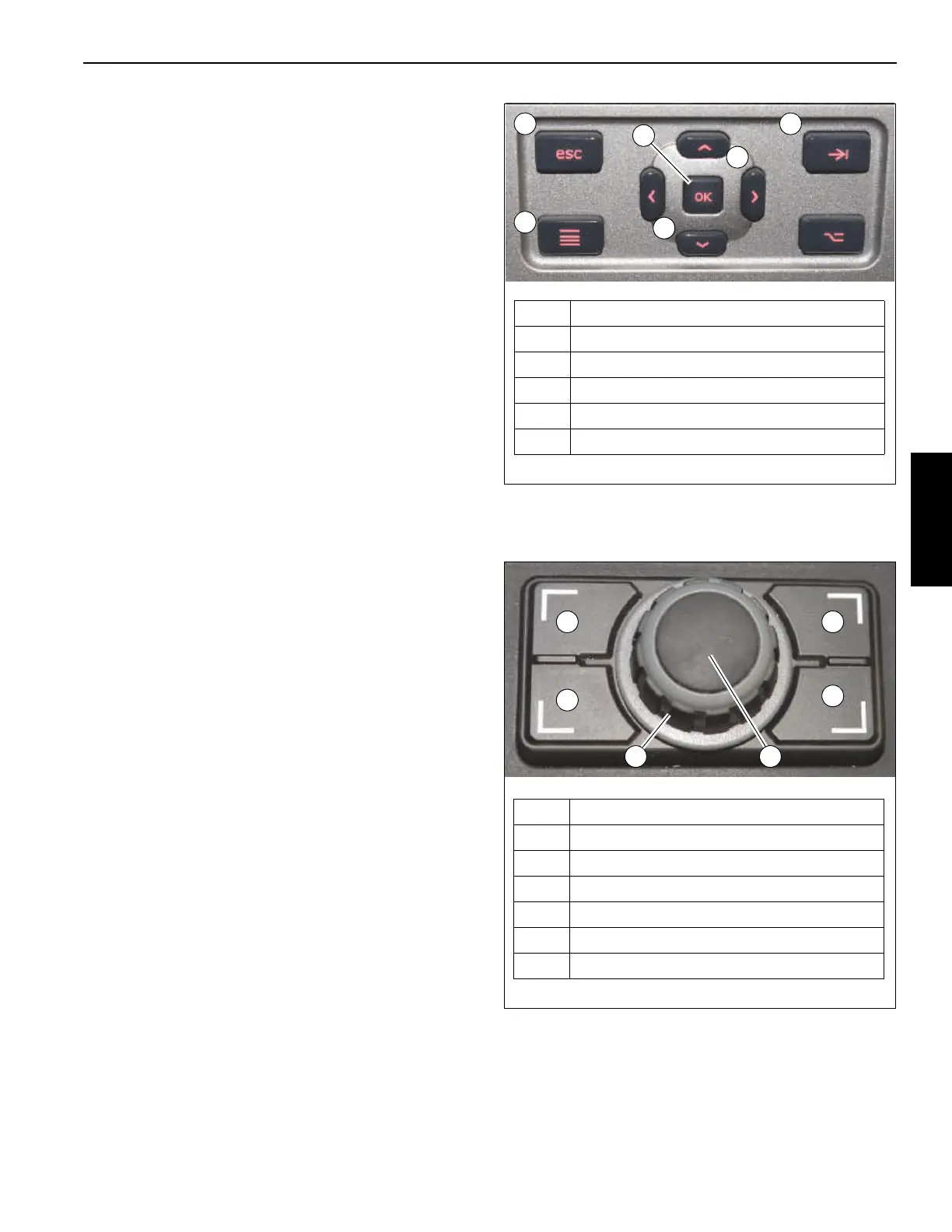

The Tab Button (2, Figure 3-15) on the Navigation Control
Pad of the ODM and RDM can be pushed to temporarily
silence active audible alarms.
The Jog Dial (Figure 3-16), mounted on the right armrest
(see Jog Dial, page 3-26), can be used to navigate the two
modules in a similar manner as the Navigation Control Pads.
Refer to Navigating the Operator Display Module and Rated
Capacity Limiter Display Module, page 4-71 for information
on how the Navigational Controls Pads and Jog Dial are
used in the operation of the crane.
Item Description
1 Escape Button
2 Tab Button
3 Menu Button
4 Left/Right/Up/Down Arrow Buttons
5 OK Button
FIGURE 3-15
1 2
4
3
4
5
9221-1
FIGURE 3-16
Item Description
1 Escape Button
2 Tab Button
3 Screen Toggle Button
4 Menu Button
5 Jog Dial (Rotate dial to move cursor)
6 OK Button (Press Jog Dial to select)
9221-2
1 2
3
4
5 6
