5-2 Published 7-23-2020, Control # 668-02
SET-UP AND INSTALLATION GRT9165 OPERATOR MANUAL
SETUP OF CRANE BEFORE AND AFTER
TRANSPORTING
Figure 5-1 shows the components that must be placed in to
their transport positions before transporting the crane.
Securing all valve cover latches with tie-straps is
recommended to prevent accidental opening during
transportation. After transporting the crane, place these
components into their working positions.
1
3
2
4
6
6
7
8
8
10
9

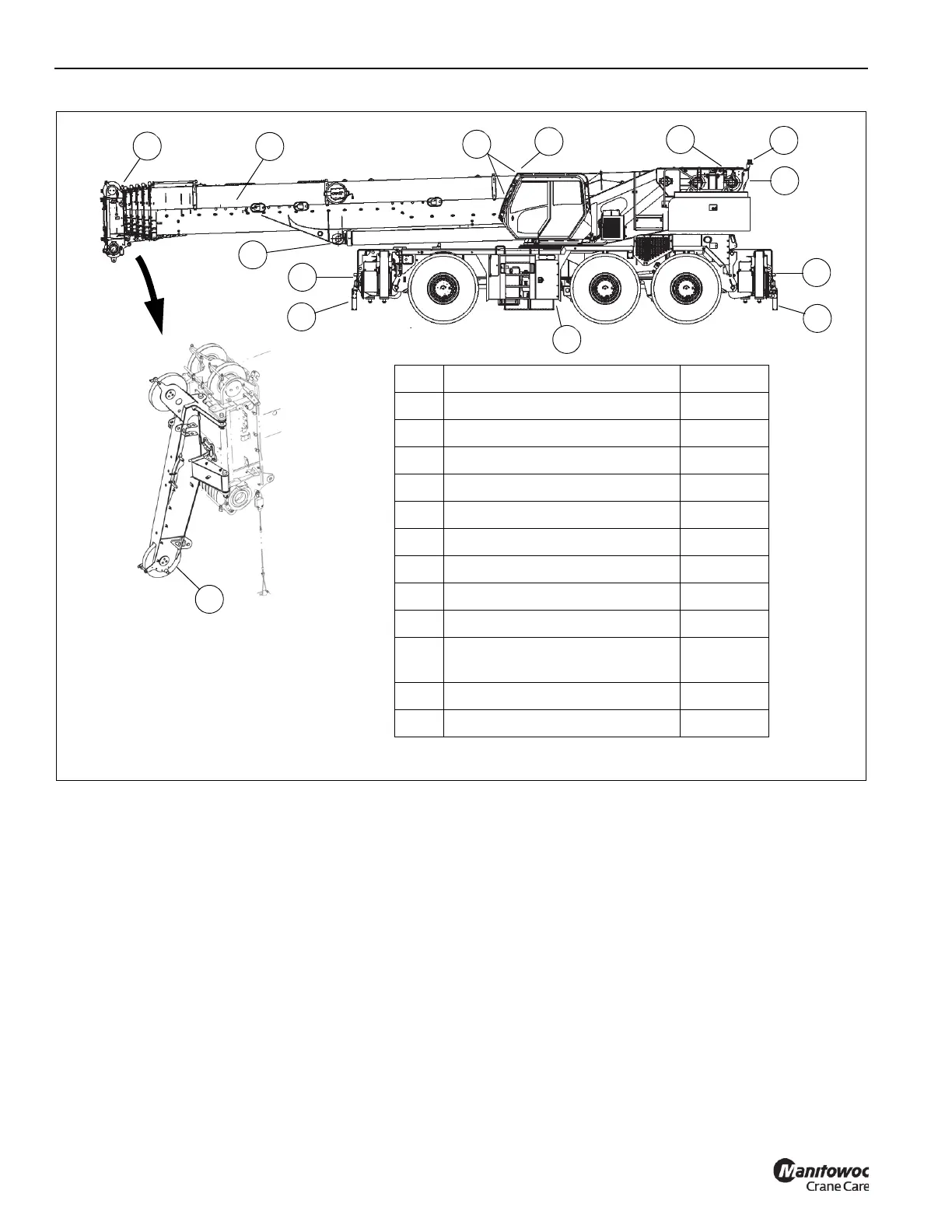

FIGURE 5-1
5
12
9909
11
Item Description Page
1 Hoist Camera page 5-3
2 Hoist Platform page 5-4
3 Beacon Lights (Optional) page 5-5
4 Cab Mirrors page 5-6
5 RCL Light Tower (Optional) page 5-7
6 Access Ladders page 5-8
7 Auxiliary Ladder (Right Side) page 5-8
8 Outrigger Floats page 5-10
9 Hydraulic Hose Drum (Optional) page 5-11
10
Boom Position Indicator Light
and Anemometer (Optional)
page 5-11
11 Auxiliary Boom Nose page 5-11
12 Boom Lift Cylinder page 5-11
10021
