Grove Published 7-23-2020, Control # 668-02 4-53
GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
USING THE REMOTE CONTROL UNIT
For an overview of the remote control unit’s controls and
features, and storage and charging information, refer to
Remote Control Unit, page 3-56.
The hand-held Remote Control Unit is provided to operate
the needed crane functions during crane set up only. The
Remote Control Unit is not intended to operate crane
functions during normal crane operation.
When operating the crane using the Remote Control Unit, all
limiters and their crane function lockouts are inoperable, to
include the following:
• RCL System (boom up/down, telescope extend, hoist
up)
• Anti Two-Block System (boom up/down, telescope
extend, hoist up)
• 3rd Wrap Limiter System (hoist down)
• Working Range Limiter (WRL) System
• Carrier Avoidance System
• -29°C Temperature Limiter System (optional)
Preparing for Remote Control Operation
1. Position the crane in the desired location.
2. Apply the parking brake.
3. Shift the transmission to neutral.
4. Stop the engine with the ignition switch (the engine will
be re-started with the remote control).
5. Set the ignition switch to RUN position.
6. Enable the Remote Control Unit by pressing the top of
the Remote Control Enable/Disable Switch
(12, Figure 3-9) on the Right Overhead Control Panel in
the cab.
When enabled, power is supplied to the remote module
and the E-Stop relay (in remote module) is added in
series to the E-Stop electrical circuit.
7. Make sure the E-Stop Button on the Remote Control
Unit is pulled out.
8. Set the Remote Control Unit to ON by pressing the
Power Button.

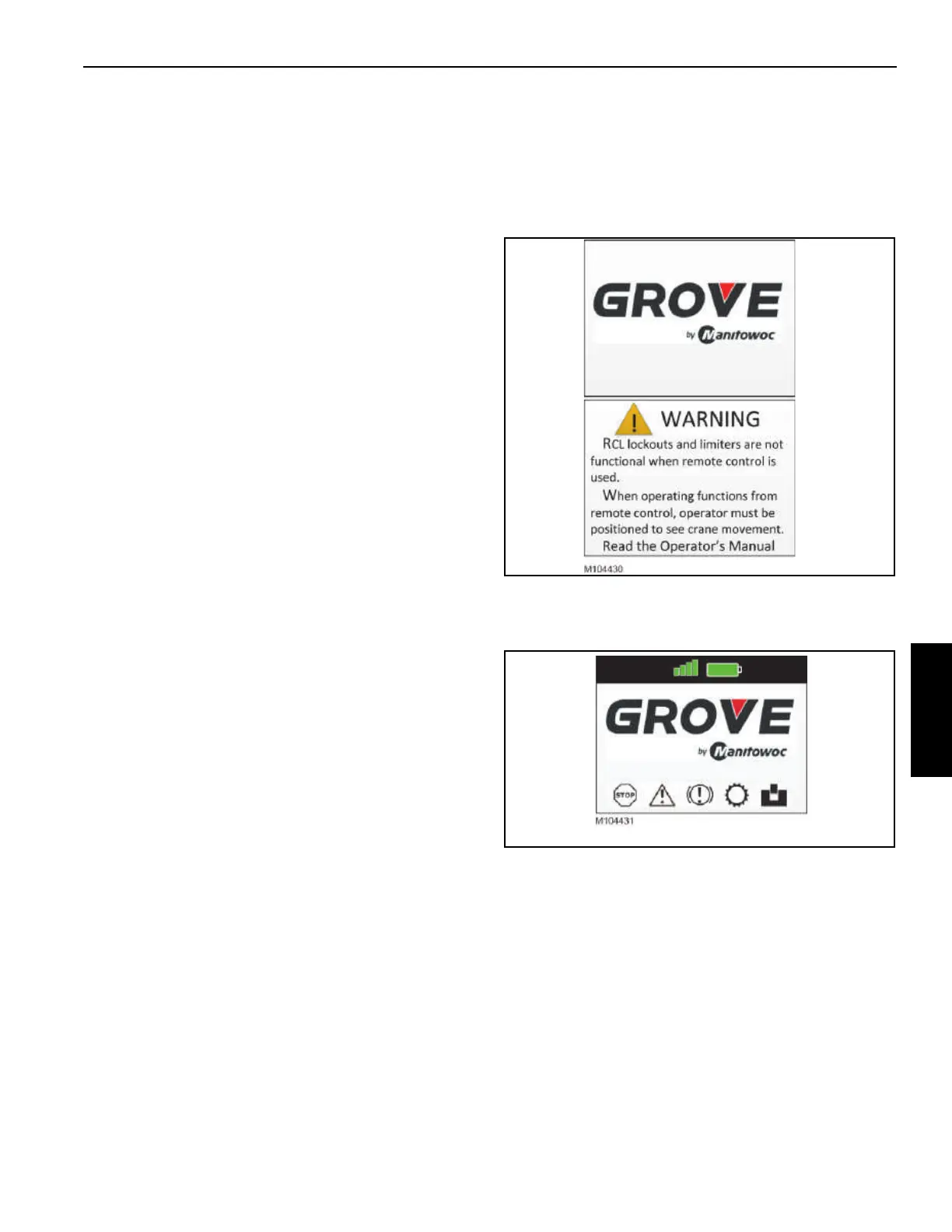

9. The SPLASH screen will appear for a few seconds,
followed by the WARNING screen (Figure 4-58).
10. Press the ESC Button on the Remote Control Unit to
confirm that you have read the warning and to bring up
the MAIN Screen (Figure 4-59).
