Grove Published 7-23-2020, Control # 668-02 5-43
GRT9165 OPERATOR MANUAL SET-UP AND INSTALLATION
Reeving/Unreeving the Hoist Rope
Use the following procedures to reeve and unreeve the hoist
rope.
Reeving Hoist Rope
1. Make sure the main hoist rope is in the rope guide. If
necessary, make sure the auxiliary hoist rope is over the
rope guide. For more information, see Reeving Hoist
Rope Over the Boom, page 5-42.

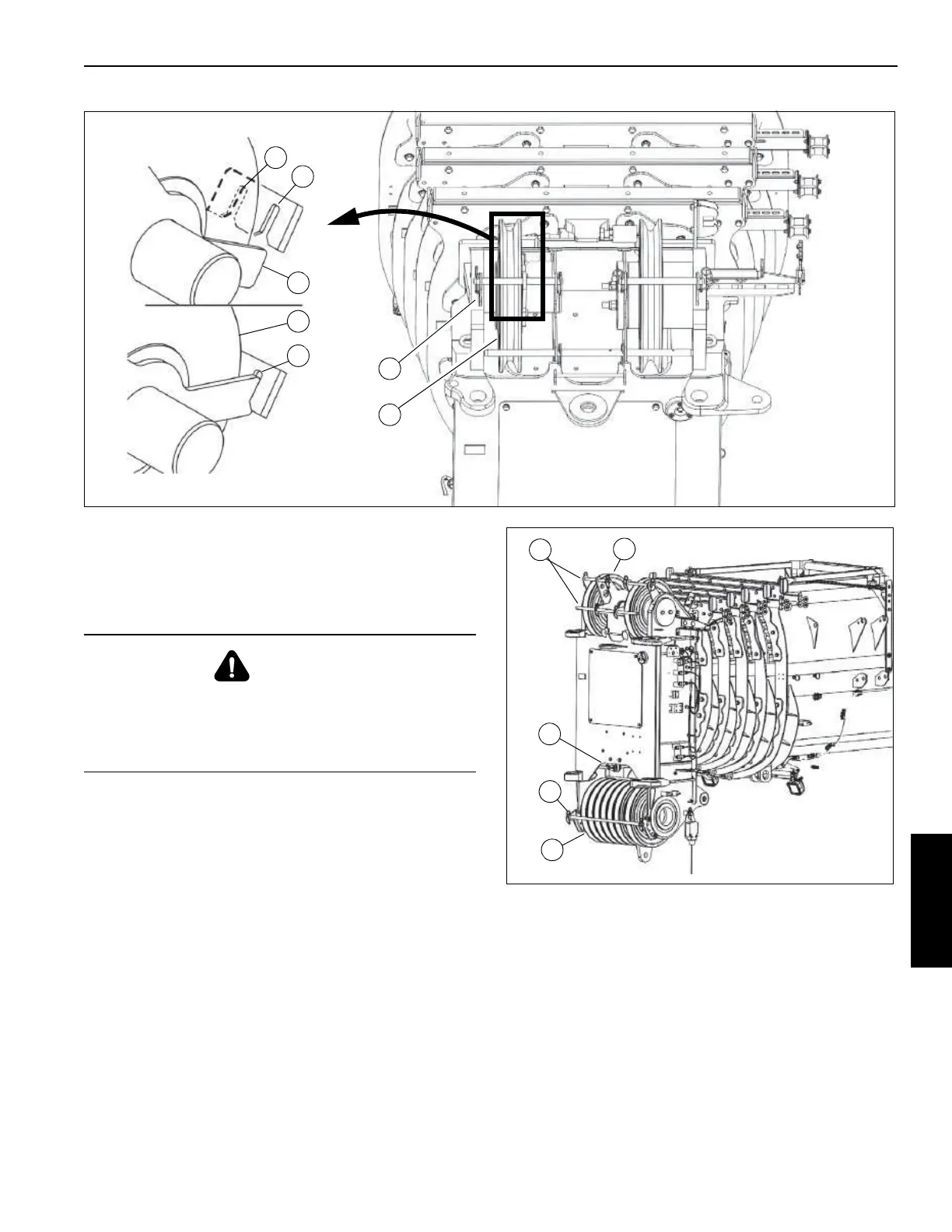

2. Remove the retaining rods (1, Figure 5-27).
3. Guide the rope over the upper boom nose sheave (2).
4. Guide the rope over the lower boom nose sheave (3).
5. Install the hook tackle or the hook block.
6. Reinstall all the retaining rods (1) and secure with
retaining clips.
Unreeving Hoist Cable
1. Remove the retaining rods (1, Figure 5-27).
2. Unreeve the hook block.
3. Take the hoist rope off of the upper boom nose sheave
(2) and place it on the ground on the left side. Spool the
hoist rope on the hoist drum.
4. Replace all retaining rods and secure them with
retaining clips.
3
1
1
2
FIGURE 5-26
5
4
4
9960
9961
CAUTION
Falling Objects Hazard!
Always make sure sheaves and pins that secure the hoist
rope are secured with clips. This prevents components
from coming loose, falling and causing injury.
