Grove Published 7-23-2020, Control # 668-02 5-19
GRT9165 OPERATOR MANUAL SET-UP AND INSTALLATION
Installing and Removing the Counterweight
on/from the Superstructure
Use the information in this section to remove and install the
counterweight from/on the superstructure using automatic or
manual mode.
For more information about controllers and switches, see
Section 3 - Operating Controls and Features. For more
information about the Operator Display Module (ODM), see
Using the Operator Display Module (ODM), page 4-72.
Overview of the Counterweight ODM Screen

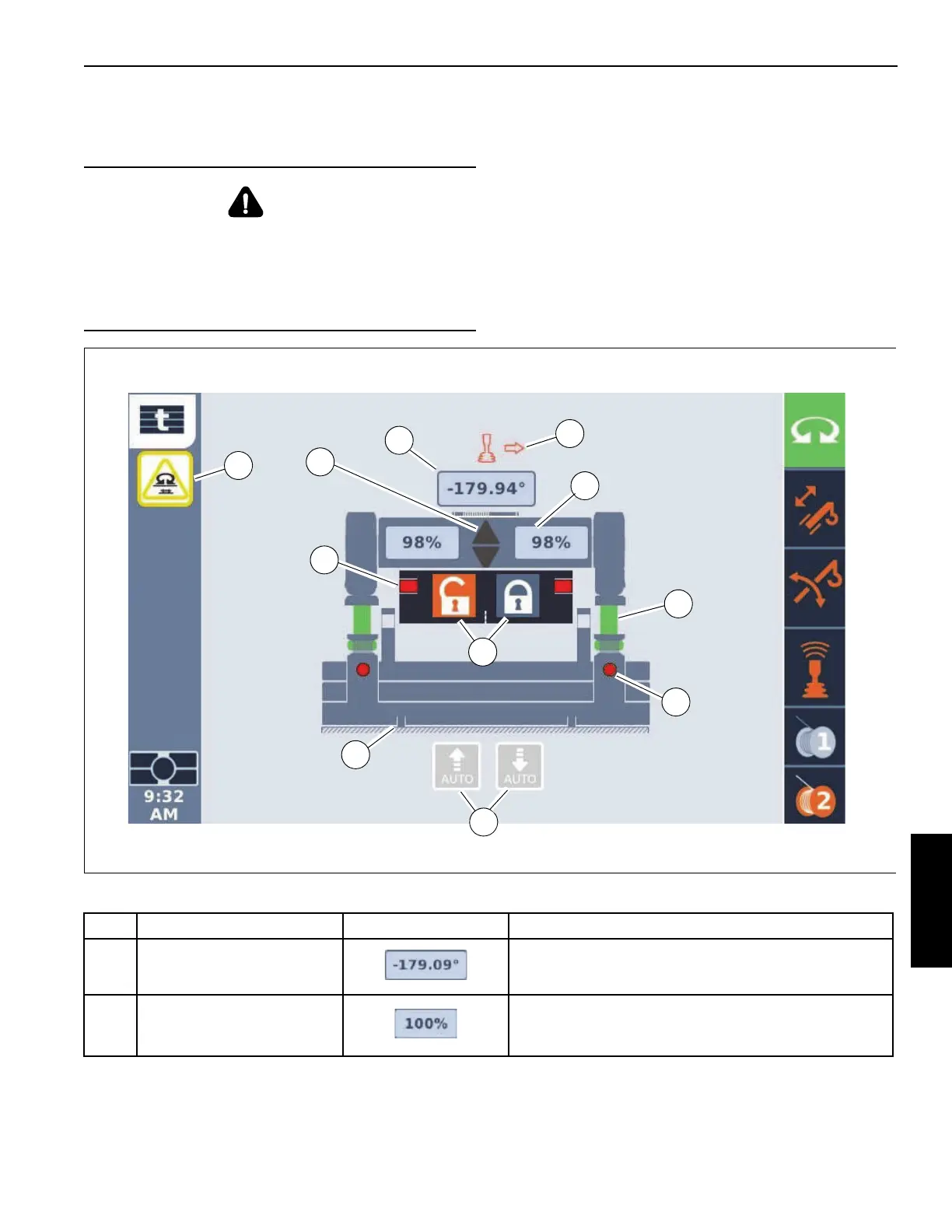

Figure 5-16 and Table 5-1 describe the elements of the
Counterweight screen in the ODM.
DANGER
Crushing Hazard!
Death or serious injury could result from being crushed by
falling counterweight
Follow instructions in Operator and Safety Handbook for
counterweight installation and removal procedure.
FIGURE 5-16
2
8
3
9
4
5
1
7
10
11
6
9910
Table 5-1 ODM Counterweight Overview
Item Name Symbol Description
1 Swing Indicator
Displays the orientation of the superstructure. The range
is -180° to 180°.
2
Counterweight Cylinder
Length Indicator
Displays the length of the counterweight cylinder in
percent. The range is 0% (fully retracted) to 100% (fully
extended).
To Next Page
