OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-32 Published 7-23-2020, Control # 668-02
Assignment for Display

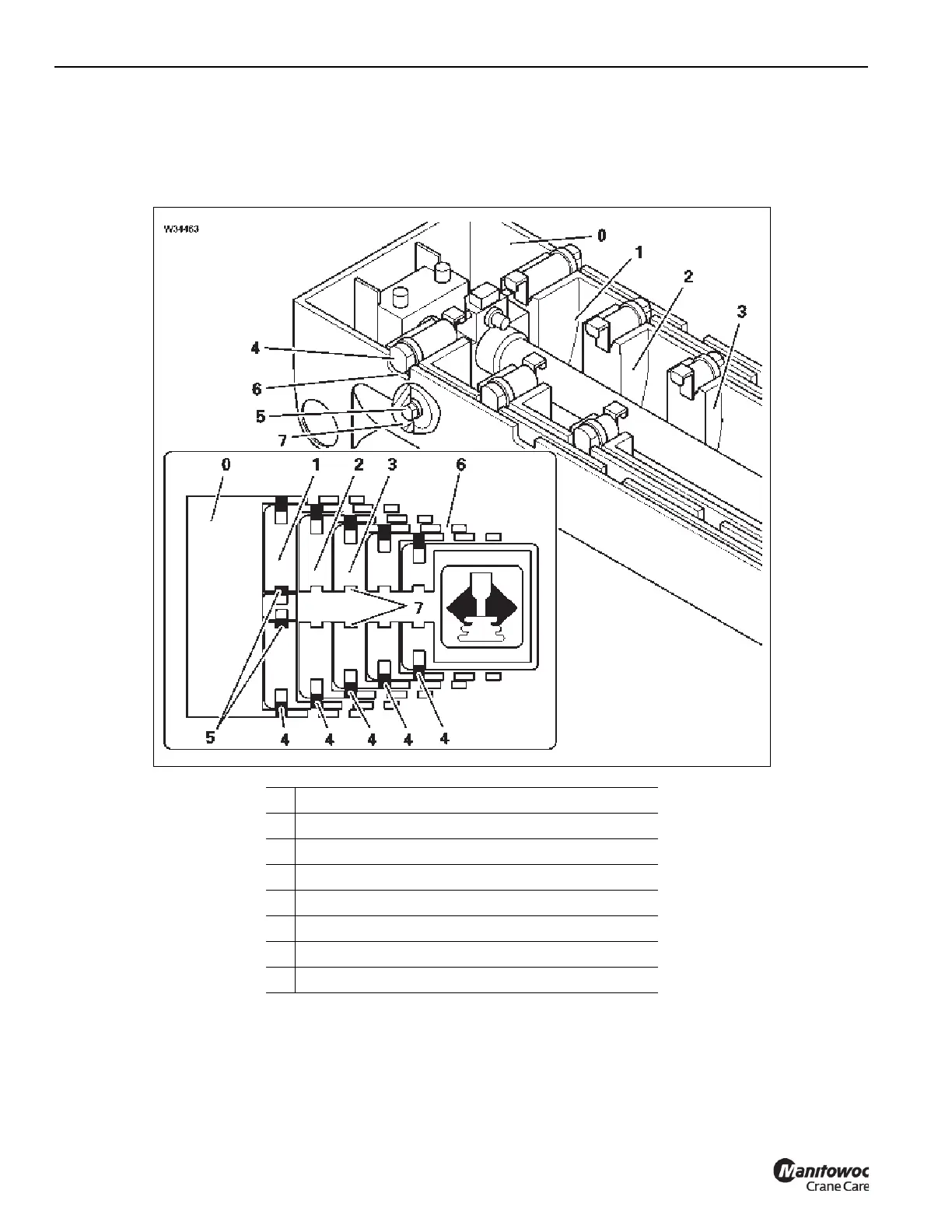

The CCS display shows a sectional view of the main boom in
the menus.
The following elements are displayed Figure 4-15:
0 Base section
1 Telescopic section I
2 Telescopic section II
3 Telescopic section III
4 Section locking pin on the telescopic section
5 Cylinder locking pins on the telescoping cylinder
6 Section pin cutouts (holes)
7 Cylinder pin engagement cutouts (holes)
FIGURE 4-15
