OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-92 Published 7-23-2020, Control # 668-02
Permanent Quick Select Menu Area
The Permanent Quick Select Menu Area (Figure 4-81) of the
ODM Main Screen shows six function icons that are
frequently used in the operation of the crane. These six
function icons are constantly shown and cannot be changed.
Use the Navigation Control Pad or Jog Dial to select one of
the function icons.
These six function icons can also be found in the Menu
Screen of the ODM. Selecting one of the six icons in the
Permanent Quick Select Menu Area or in the Menu Screen
will open the same function screen.

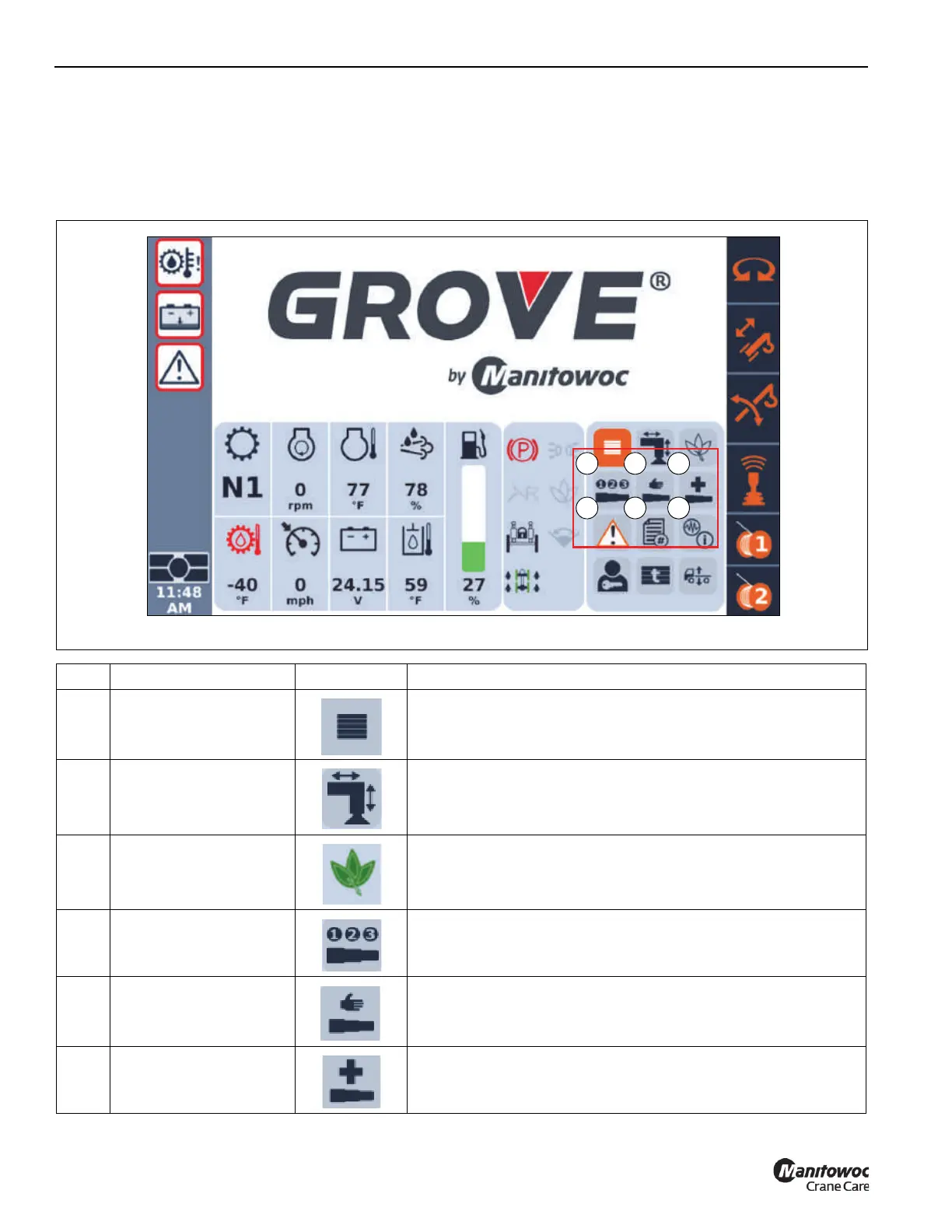

FIGURE 4-81
9902-1A
1 3
64
2
5
Item Name Symbol Description
1 Menu Screen Icon Opens the Menu Screen (page 4-93)
2
Outrigger Function
Icon
Opens the Outrigger Extend/Retract function screen (page 4-100)
3
ECO Mode Function
Icon
Opens the ECO Mode function screen (page 4-153)
4
Semi-automatic
Telescope Mode
Function Icon
Opens the Semi-automatic Telescope Mode function screen
(page 4-96)
5
Manual Telescope
Mode Function Icon
Opens the Manual Telescope Mode function screen (page 4-131)
6
Emergency Telescope
Mode Function Icon
Opens the Emergency Telescope Mode function screen
(page 4-133)
