GRT9165 OPERATOR MANUAL SET-UP AND INSTALLATION
5
Installing Auxiliary Single-Sheave Boom
Nose
1. If necessary, remove and store the retaining clips from
the boom nose attachment lugs (1, Figure 5-76).
2. Use an auxiliary crane attached to the lifting eyes (2) on
the auxiliary boom nose and lift it to the front of the main
boom head.
3. Align the auxiliary single-sheave boom nose so that the
attachment lugs line up to the boom nose attachment
lugs (1).
4. Secure the auxiliary single-sheave boom nose to the
main boom nose using pins (3).
5. Secure the pins (3) with retaining clips (4).
6. Insert catch hook (5) in to the flange (6) to secure the
auxiliary single sheave boom to the main boom for
transport.
7. Depending on the application, bring the auxiliary
single-sheave boom nose into transport position or
working position.
Removing the Auxiliary Single-Sheave
Boom Nose
In the working position, the auxiliary single-sheave boom
nose is positioned in front of the main boom head and is
fastened with four pins (3, 8, and 10, Figure 5-76).
In the transport position, the auxiliary single-sheave boom
nose is positioned to the side of the main boom head and is
fastened with two pins (2) and catch hook (5).
1. Attach an auxiliary crane to the lifting eyes (2) of the
auxiliary boom nose (1).
2. Remove catch hook (5) from flange (6) on the side of the
main boom.
3. Remove the retaining clip (7) and remove pin (8).
4. Remove the retaining clip (9) and remove pin (10).
5. Lift the auxiliary single-sheave boom nose from the head
of the main boom.
Rigging the Auxiliary Single-Sheave Boom
Nose for Transport
Use the following procedures to rig the auxiliary
single-sheave boom nose for transport.

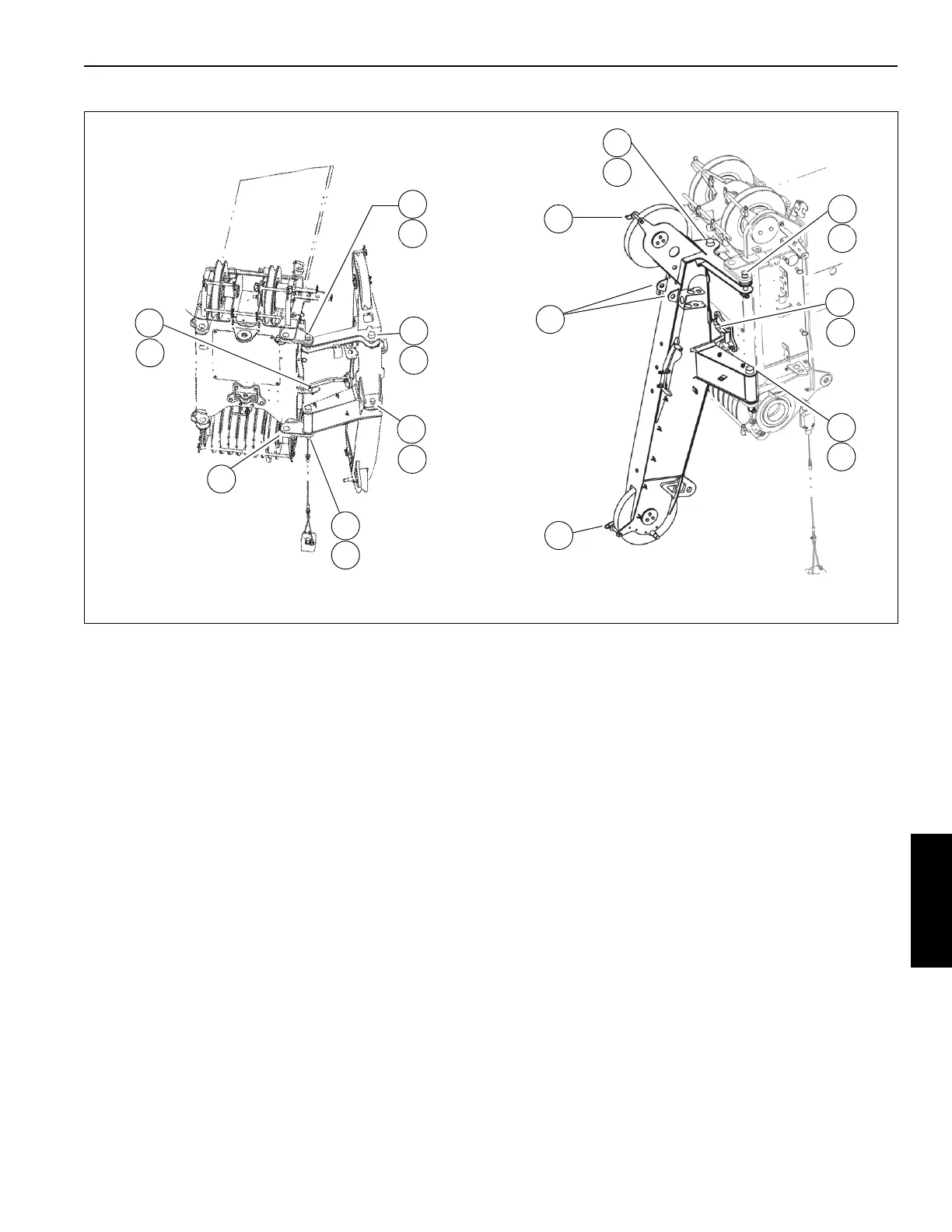

FIGURE 5-76
10020
TRANSPORT POSITION
WORKING POSITION
1
3
4
3
4
5
6
2 Places
9
10
7
8
7
8
2
9
10
11
11
10021
3
4
3
4
