GRT9165 OPERATOR MANUAL OPERATING CONTROLS AND FEATURES
Auxiliary Hoist – Swing Controller (Dual
Axis)
The Auxiliary Hoist – Swing Controller (21, Figure 3-17) is
located on the left armrest. The controller operates the
auxiliary hoist and swing functions.
Push controller forward to lower the auxiliary hoist rope. Pull
controller rearward to raise the auxiliary hoist rope.
Push controller left or right for 360-degree continuous
rotation of the superstructure in the desired direction.
Move controller in a diagonal direction to operate the two
enabled functions at the same time.
Seat Backrest Adjustment Lever
The Seat Backrest Adjustment Lever (22, Figure 3-17) is
located at the left rear of the seat.
Lift up the lever to allow the seat backrest angle to be pivoted
fore and aft. Once seat backrest is in the desired position,
release the lever to lock the backrest in position.
Seat Adjustment Control Panel
The Seat Adjustment Control Panel (23, Figure 3-17) is
located at the bottom, left side of the seat.
The panel has three electric switches which are used to
adjust the position of the seat and armrest assembly.
The Front Adjustment Switch (1, Figure 3-17) controls the
height of the front of the seat. Pull switch up to raise front of
seat. Push switch down to lower front of seat.
The Rear Adjustment Switch (2, Figure 3-17) controls the
height of the rear of the seat. Pull switch up to raise rear of
seat. Push switch down to lower rear of seat.
The 4-Way Adjustment Switch (3, Figure 3-17) controls the
height of the seat and the seat fore-to-aft position. Pull switch
up to raise the seat and armrests. Push switch down to lower
the seat and armrests. Push switch forward to move the seat
and armrests forward. Push switch rearward to move the
seat and armrests rearward.
To adjust the seat relative to the armrests, use the Seat Slide
Lever (refer to Seat Slide Lever, page 3-27).
Armrest Adjustment Buttons
The Armrest Adjustment Buttons (24, Figure 3-17) are
located at the rear of the armrest.
The buttons allow the left and right armrest to be rotated.
Push and hold button to allow the entire armrest to be
rotated. Release button to lock the armrest in the desired
position.
Seat Heat Switch (Optional)
The Seat Heat Switch (25, Figure 3-17) is a three-position,
rocker type switch located at the front of the seat cushion.
Push bottom of switch to cause seat heater to operate at a
low temperature. Push top of switch to cause seat heater to
operate at a high temperature. Set switch to center position
to set seat heater to off.
Seat Headrest (Not Shown)
The Seat Headrest (26, Figure 3-17) is located at the top of
the seat backrest.
Pull up to raise the head rest. Push down to lower the head
rest.

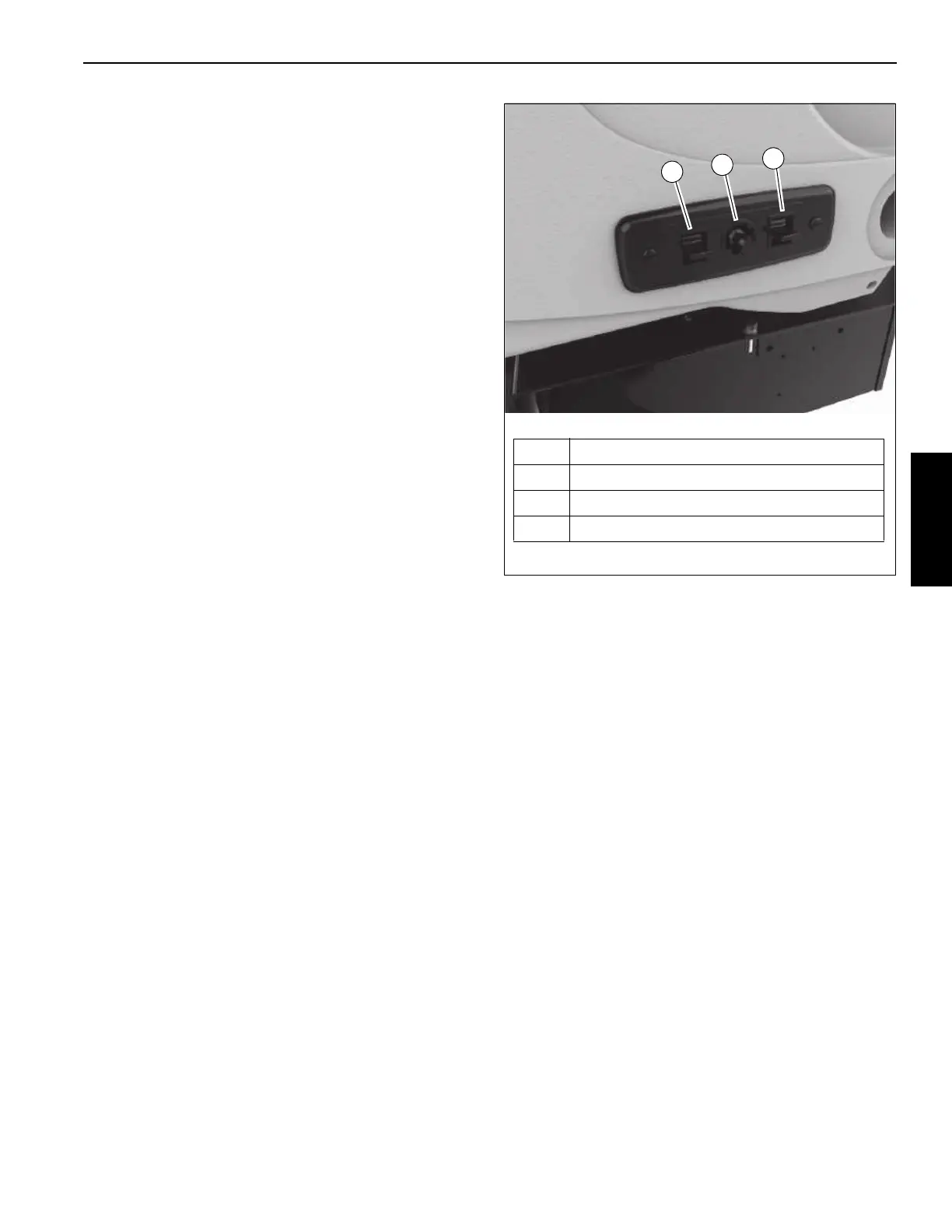

FIGURE 3-24
Item Description
1 Front Adjustment Switch
2 Rear Adjustment Switch
3 4-Way Adjustment Switch
9838-12
3
2
1
