Manitowoc Grove GRT9165 User Manual

OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-156 Published 7-23-2020, Control # 668-02
(2, Figure 4-167) will interrupt the manual cleaning
process.
Make sure the crane and surrounding area are
monitored during manual cleaning. If any unsafe
condition occurs, stop engine immediately.
Engine will return to normal idle speed when the manual
cleaning process is complete.
Inhibit Exhaust System Cleaning
NOTE: Refer to section Exhaust System Cleaning, page
4-9 for information on the manual and automatic
exhaust cleaning modes.
To inhibit, or prevent, the exhaust system from entering the
active cleaning mode or to stop the exhaust cleaning
process that was manually initiated, do the following:
1. Using the Jog Dial or the Up/Down Arrow Buttons on the
Navigation Control Pad, select the Inhibit Cleaning
Process Icon (1, Figure 4-169) (icon changes to
orange).
2. Press the Jog Dial or OK Button on the Navigation
Control Pad to set the cleaning process to inhibit (Inhibit
Cleaning Process Icon changes to green).
The Inhibit Exhaust System Cleaning Indicator comes
on in the Alerts Area of the ODM, and the active and
manual modes of exhaust system cleaning are
prevented.
Service Menu
Select the Service Menu icon (1, Figure 4-170) under the
User Settings Menu Group to show the Service Menu
function screen.
CAUTION
Crane Damage!
Exhaust system damage can occur if crane is operated
for long periods of time with the exhaust cleaning system
set to inhibit.
During normal operation of the crane, do not set the
exhaust system cleaning to inhibit.

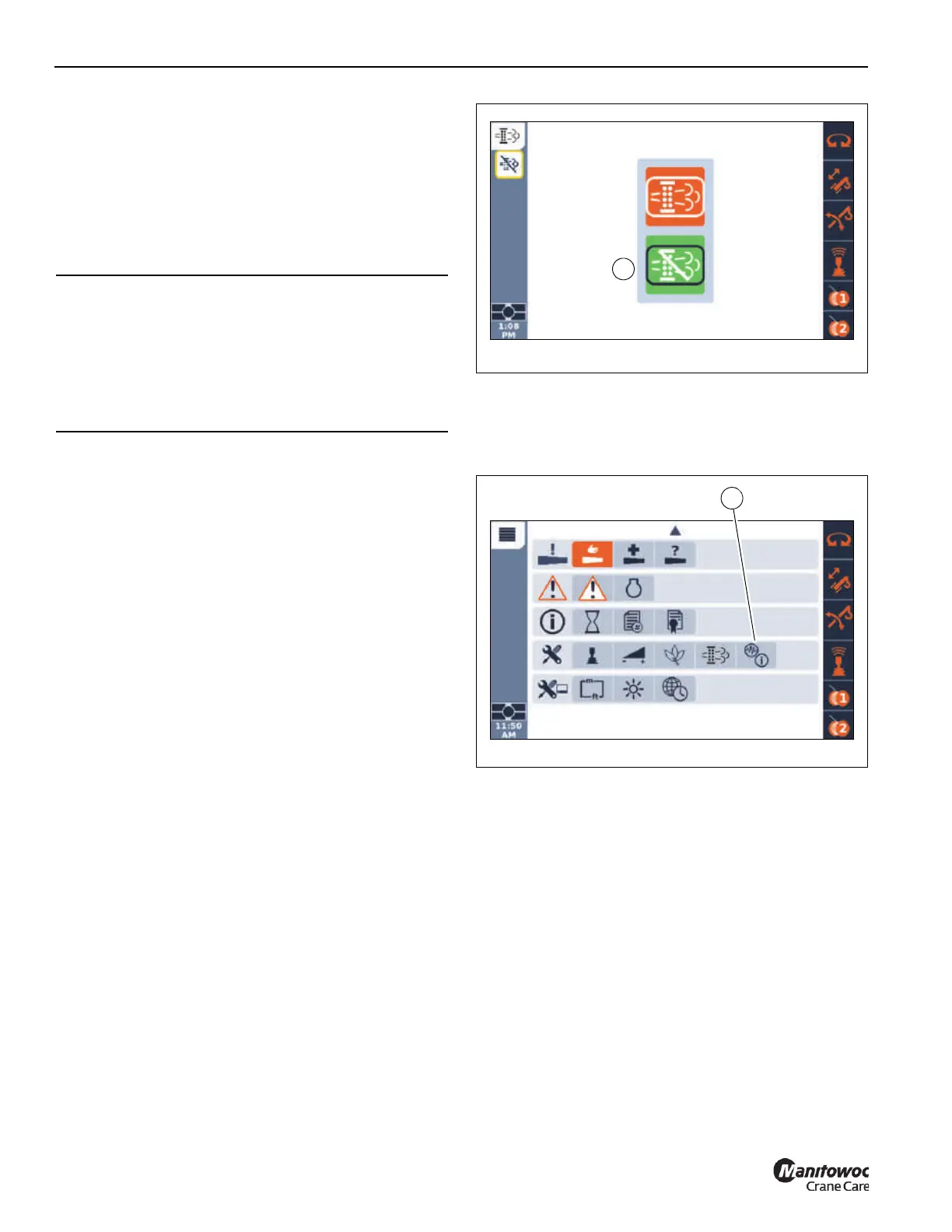

FIGURE 4-169
1
9902-28
FIGURE 4-170
9902-3
1
