OPERATING CONTROLS AND FEATURES GRT9165 OPERATOR MANUAL
3-10 Published 7-23-2020, Control # 668-02
RIGHT OVERHEAD CONTROL PANEL

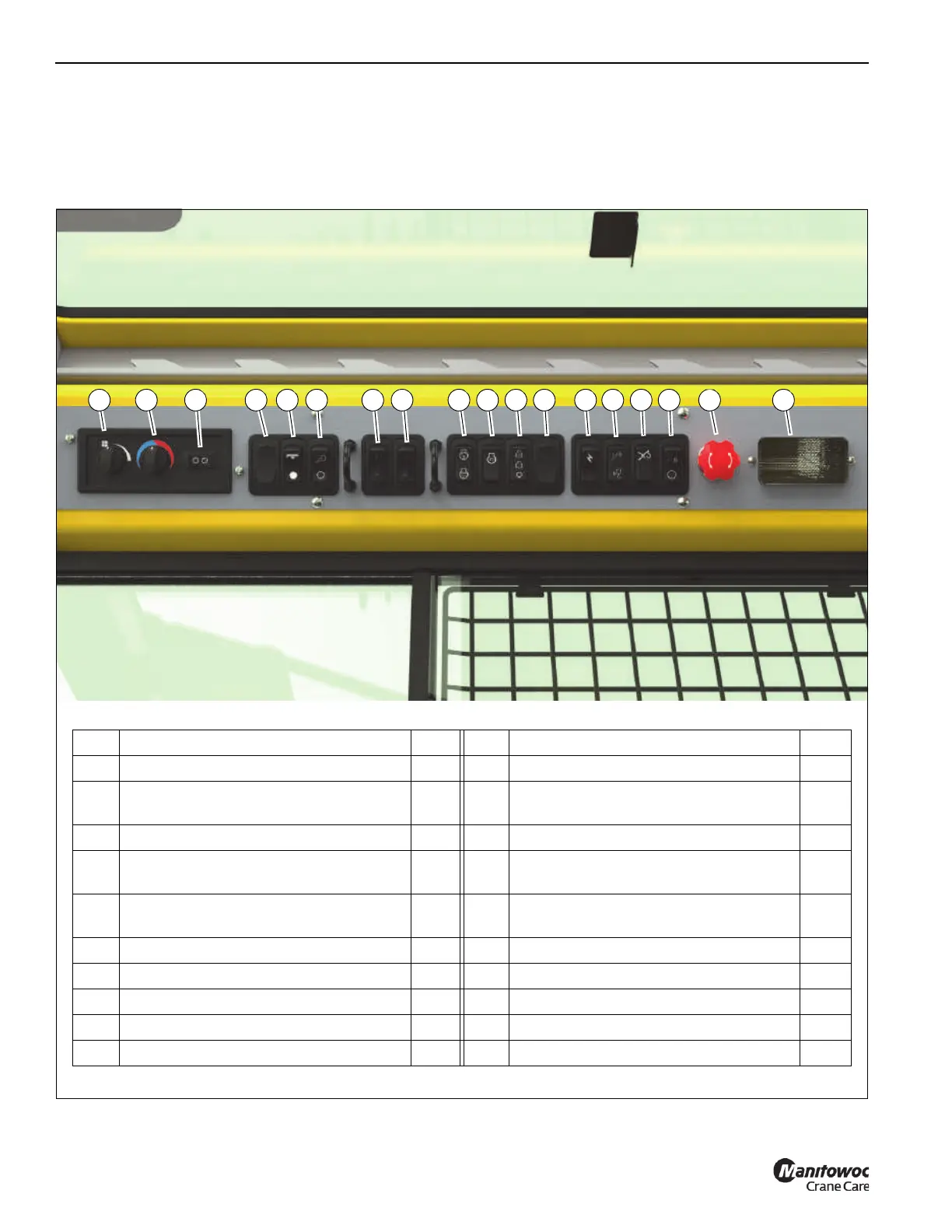

The right overhead control panel (Figure 3-9) includes
controls for operating the heating and air conditioning
system, front and skylight window wipers, engine, and
craning functions.
FIGURE 3-9
9838-3c
Item Description Page Item Description Page
1 Heater/Air Conditioner Fan Speed Switch 3-11 11 Engine Brake Switch (Optional) 3-12
2
Heater/Air Conditioner Temperature
Control Switch
3-11 12 Remote Control Enable/Disable Switch 3-12
3 Fresh Air/Recirculation Air Switch 3-11 13 Crane Function Enable/Disable Switch 3-12
4
Boom-Mounted Lights Motor Switch
(Optional)
3-11 14
Momentary Limit Bypass Switch (Non-CE
Certified Cranes)
3-13
5 Boom-Mounted Lights Switch (Optional) 3-11 14
Limit Bypass Set-up Switch (CE Certified
Cranes)
3-13
6 Cab-Mounted Lights Switch 3-11 15 Boom Up Bypass Switch 3-14
7 Front Window Wiper and Washer Switch 3-11 16 Steering Reversal Switch 3-14
8 Skylight Wiper and Washer Switch 3-11 17 Emergency Stop Button (E-Stop) 3-15
9 Increment/Decrement – Start/Stop Switch 3-11 18 Cab Dome Light 3-15
10 Engine Wait-To-Start Indicator 3-12
1 32 4 5 6 7 8 9 10 11 12 13 14 15 17 1816
