Radius Limitation
If the Radius Limitation is selected from the Menu of WRL
Limitations, then the Radius Limitation Screen will be shown
(5, Figure 4-115).
Using the Left Arrow and Right Arrow function on the display
or the jog dial changes the Icon highlighted on the screen. As
the Icons, with the color orange typically meaning that the
Icon is selected and can be affected by subsequent actions.
Table 4-9 lists the WRL Limitation Screen Symbols.
NOTE: The Working Radius can be “typed in” or set by
boom position.
WRL - Working Radius Limit Menu
The Working Radius Menu allows the operator to set
minimum and maximum working radii limits.

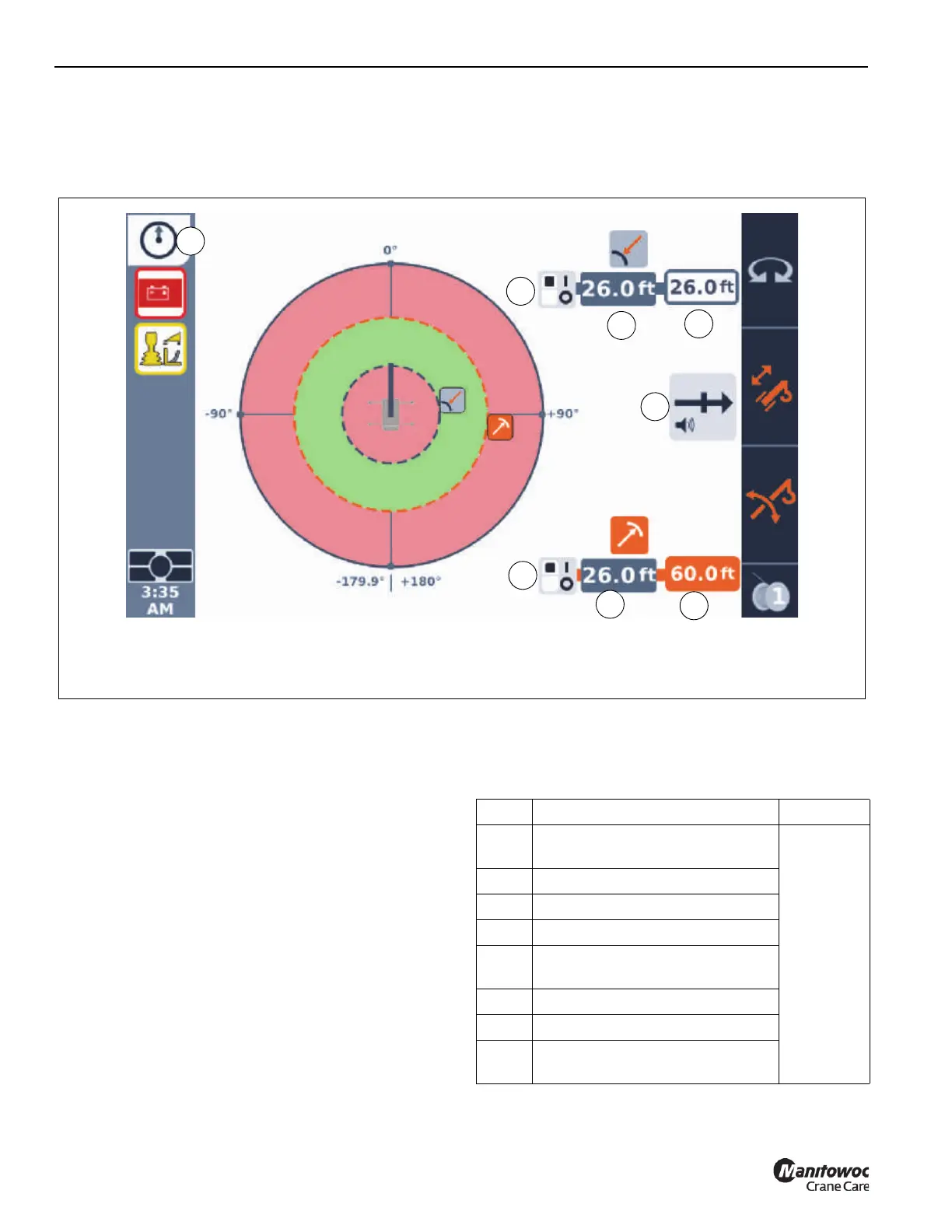

FIGURE 4-118
8882-9c
Working Radius Limitation Screen
Example Only - Display Values May Vary
1
2
3
4
8
5
6
7
Item Description Refer to
1
Minimum Radius Enable/Disable
Switch
Figure 4-1
18
2 Current Working Radius
3 Minimum Working Radius Limit
4 Audible Alert or Lock-out Icon
5
Maximum Radius Enable/Disable
Switch
6 Current Working Radius
7 Maximum Working Radius Limit
8
Icon for WRL Working Radius
Limitation
To Next Page
