MAINTENANCE AND LUBRICATION GRT9165 OPERATOR MANUAL
6-22 Published 7-23-2020, Control # 668-02
Item
Lube Point
Description
Figure No.
Approved
Lubricant
Approximate
Capacity
Service Interval
Service
Application
Steering and Suspension
13
Upper and Lower
King Pins
See NOTE 18.
Figure 6-6 A
Until grease
extrudes
Every 500 hours, or
3 months, whichever
interval comes first
LUBRICATE
4 grease fittings
per axle, 3 axles
12 service points
14
Steering Cylinder
Pivot Pins
See NOTE 18.
Figure 6-6 A
Until grease
extrudes
Every 500 hours, or
3 months, whichever
interval comes first
LUBRICATE
4 grease fittings
per axle, 3 axles
12 service points
16
Tie Rod Pivots
See NOTE 18.
Figure 6-7 A
Until grease
extrudes
Every 500 hours, or
3 months, whichever
interval comes first
LUBRICATE
2 grease fittings
per axle, 3 axles
6 service points
17
Panhard Rod
Pivots
See NOTE 18.
Figure 6-7 A
Until grease
extrudes
Every 500 hours, or
3 months, whichever
interval comes first
LUBRICATE
2 grease fittings per
rod pivot, 2 axles
1 rod pivot Axle 2,
1 rod pivot Axle 3
4 service points
18
Drag Link Pivots
See NOTE 18.
Figure 6-8 A
Until grease
extrudes
Every 500 hours, or
3 months, whichever
interval comes first
LUBRICATE
2 grease fittings
per drag link,
2 drag links
4 service points
19
Trailing Rod
Pivots
See NOTE 18.
Figure 6-8 A
Until grease
extrudes
Every 500 hours, or
3 months, whichever
interval comes first
LUBRICATE
2 grease fittings per
rod pivot, 2 axles
4 rod pivots Axle 2,
4 rod pivots Axle 3
16 service points
NOTE 18: Use grease fittings provided.
9900-04
13
14
13

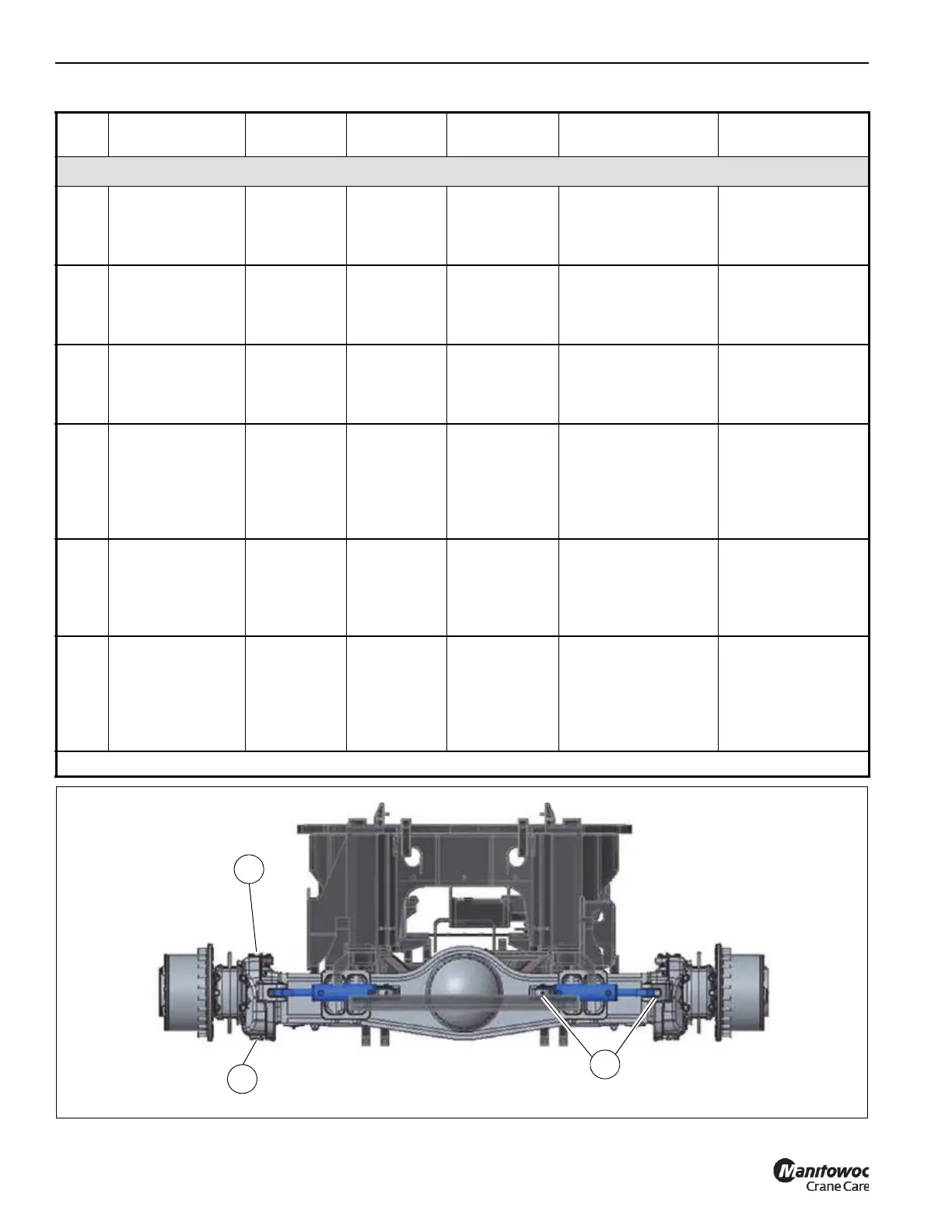

FIGURE 6-6
FRONT DRIVE AXLE – FRONT VIEW
