OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-144 Published 7-23-2020, Control # 668-02
Faults Menu Group
The Fault Menu Group includes the following function icons:
• Crane Faults (page 4-144)
• Engine Faults (page 4-145)
Crane Faults

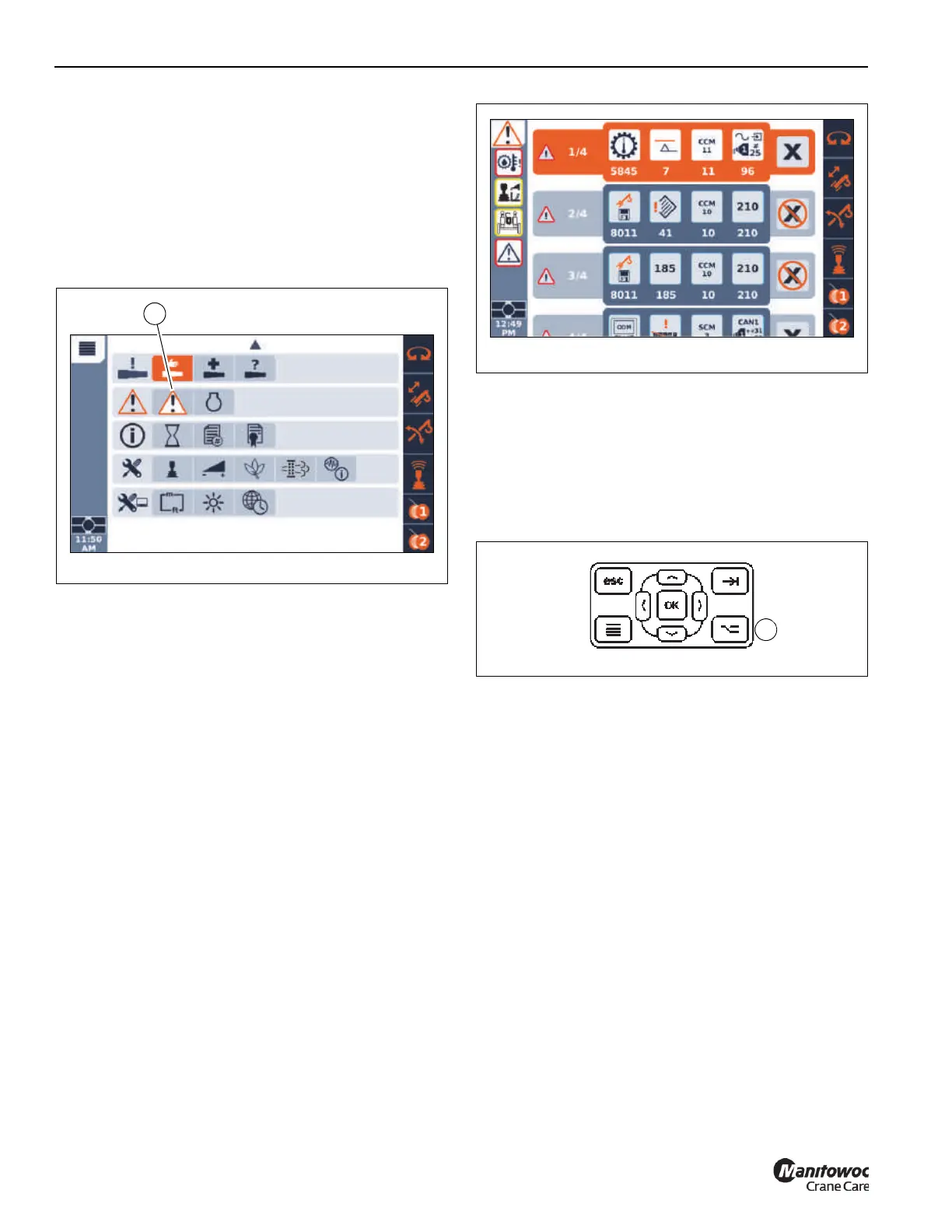

Select the Crane Faults icon (1, Figure 4-145) under the
Faults Menu Group to view active crane fault codes.
The Crane Fault Code function screen (Figure 4-146)
displays active crane fault codes.
If several fault codes are active, use the Jog Dial or Arrow
Buttons on the Navigation Control Pad to select the arrow at
the top or bottom of the screen to scroll through the codes
Crane fault codes with an “X” beside them can be cleared by
the operator. Crane fault codes with an “X” surrounded by a
red circle with strike-through cannot be cleared without first
correcting the malfunction, then cycling the ignition key to the
Off position and back to the On position.
Additional information about the fault can be accessed by
first highlighting a fault code, then pressing the lower right
button (1, Figure 4-147) at the ODM Navigation Control Pad.
FIGURE 4-145
9902-3
1
FIGURE 4-146
9902-20
FIGURE 4-147
1
