Grove Published 7-23-2020, Control # 668-02 3-5
GRT9165 OPERATOR MANUAL OPERATING CONTROLS AND FEATURES
Steering Wheel
The Steering Wheel (1, Figure 3-2) is used to turn the wheels
on the front single axle.
The GRT9165 crane can be driven with the boom centered
over the front (single axle). This Standard Driving
Configuration is shown in Figure 3-3.
The GRT9165 crane can also be driven with the boom
centered over the rear (tandem axles). This Alternate Driving
Configuration is shown in Figure 3-4.
Standard Driving Configuration
The Standard Driving Configuration for the GRT9165 is with
the boom centered over the front single axle.
In this Standard Driving Configuration, turning the steering
wheel counterclockwise turns the wheels on the front single
axle to the left, which causes the crane to turn left
(Figure 3-5).
Turning the steering wheel clockwise turns the wheels on the
front single axle to the right, which causes the crane to turn
right (Figure 3-6).

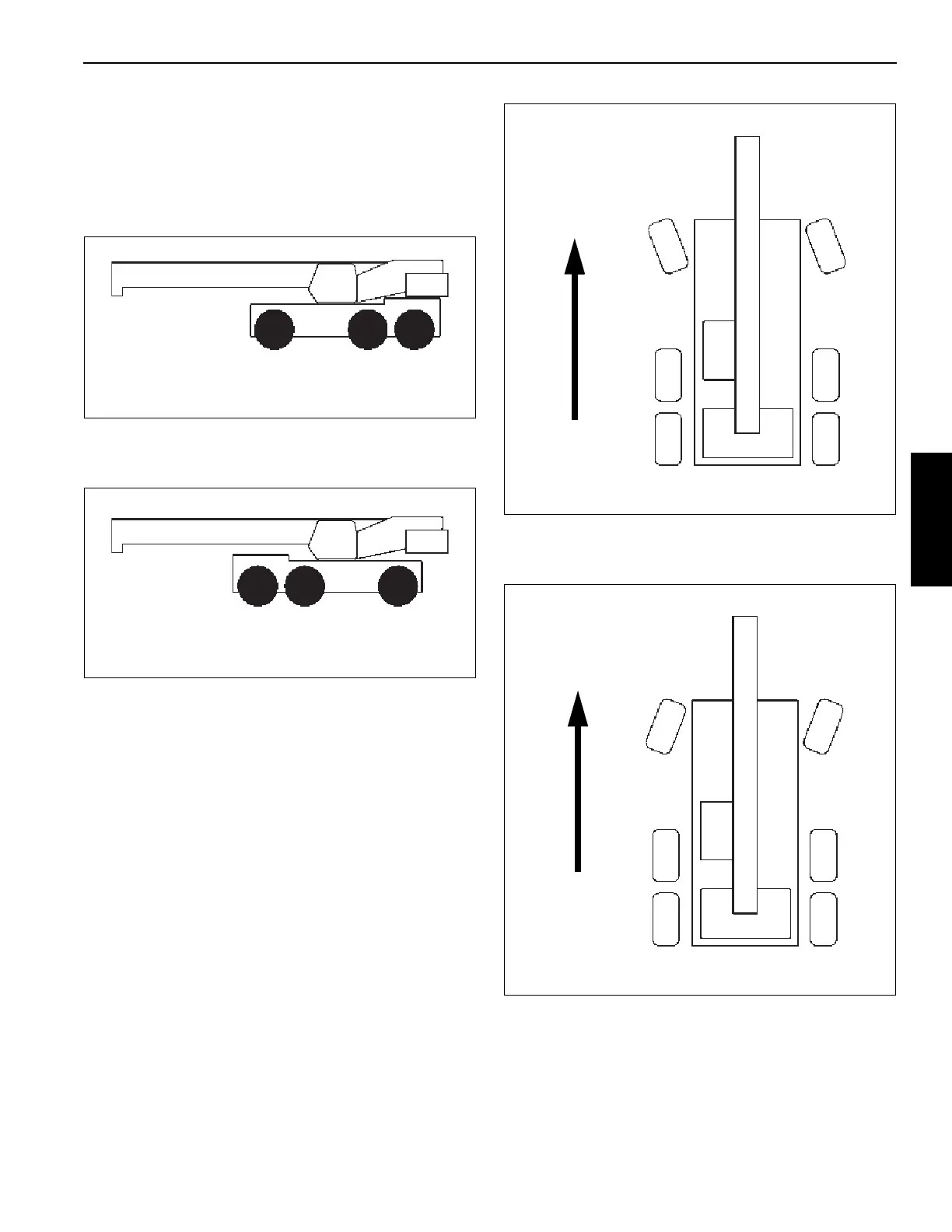

FIGURE 3-3
Standard Driving Configuration
9898-1
FIGURE 3-4
Alternate Driving Configuration
9898-2
FIGURE 3-5
Direction
of Travel
9898-4
FIGURE 3-6
Direction
of Travel
9898-6
