Manitowoc Grove GRT9165 User Manual

Grove Published 7-23-2020, Control # 668-02 4-131
GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
4

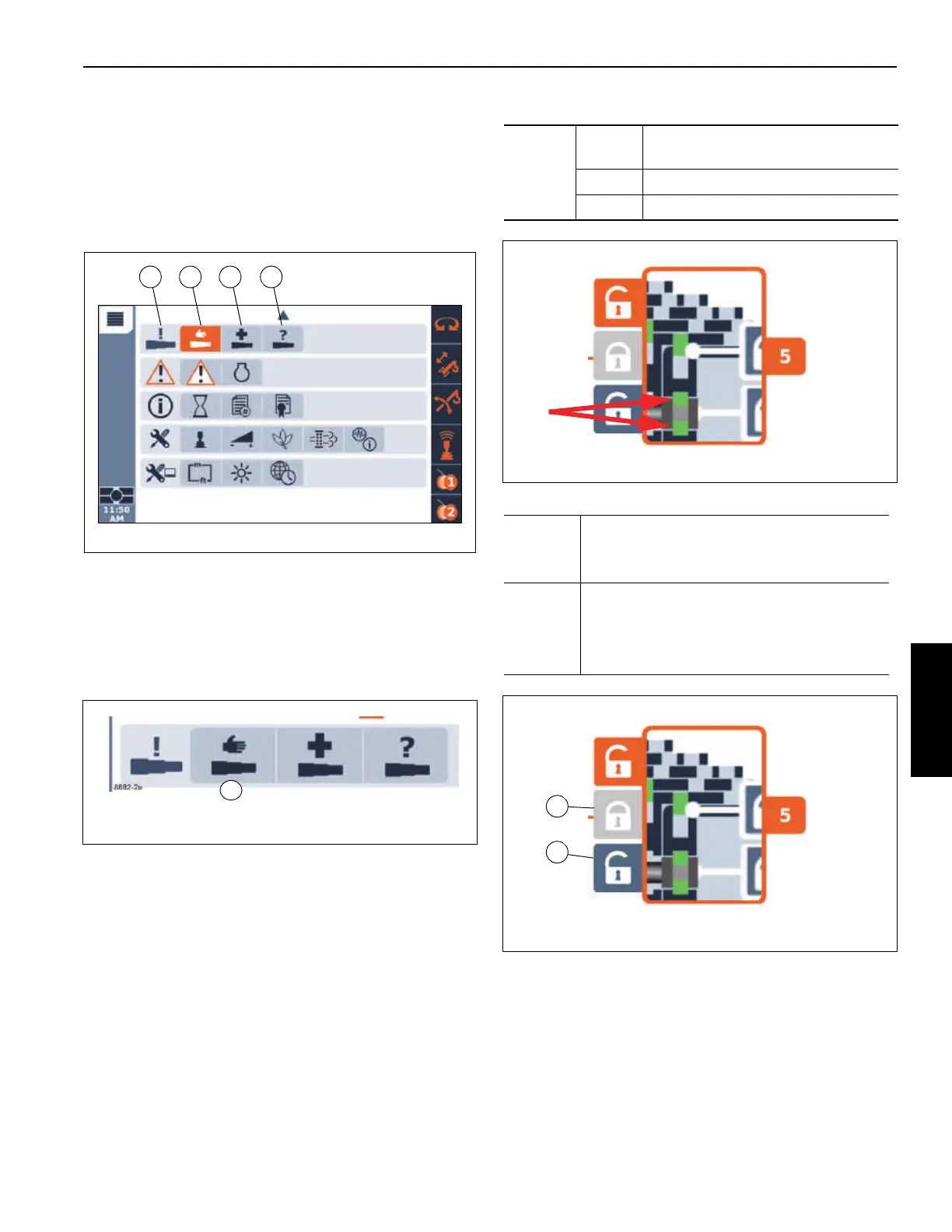

Emergency Program Menu Group
The Emergency Program Menu Group (1, Figure 4-122)
includes the following boom telescoping function icons:
• Manual Mode (2)
• Emergency Mode (3)
• Tele Recovery (4)
Manual Telescope Mode
NOTE: Refer to Boom Configurator, page 4-48 for more
information on how the Boom Configurator screen
is used in the telescoping operation.
To open: Select symbol (1) and confirm – menu is opened
Figure 4-123.
Telescoping Cylinder Locked/Released
Locking/releasing the Telescoping Cylinder
FIGURE 4-122
9902-3
1 2 3 4
FIGURE 4-123
8882-2e
1
Display
Yellow:
Locking pins intermediate position
Figure 4-124
Green: Telescoping cylinder locked
Red: Telescoping cylinder unlocked
To lock:
Telescopic section locked:
Select symbol (1, Figure 4-125) and confirm
– telescoping section is locked
To
unlock:
Telescopic section locked:
Select symbol (2) and confirm – telescoping
section is unlocked
FIGURE 4-124
10085-15a
FIGURE 4-125
10085-15a
1
2
