Grove Published 7-23-2020, Control # 668-02 5-27
GRT9165 OPERATOR MANUAL SET-UP AND INSTALLATION

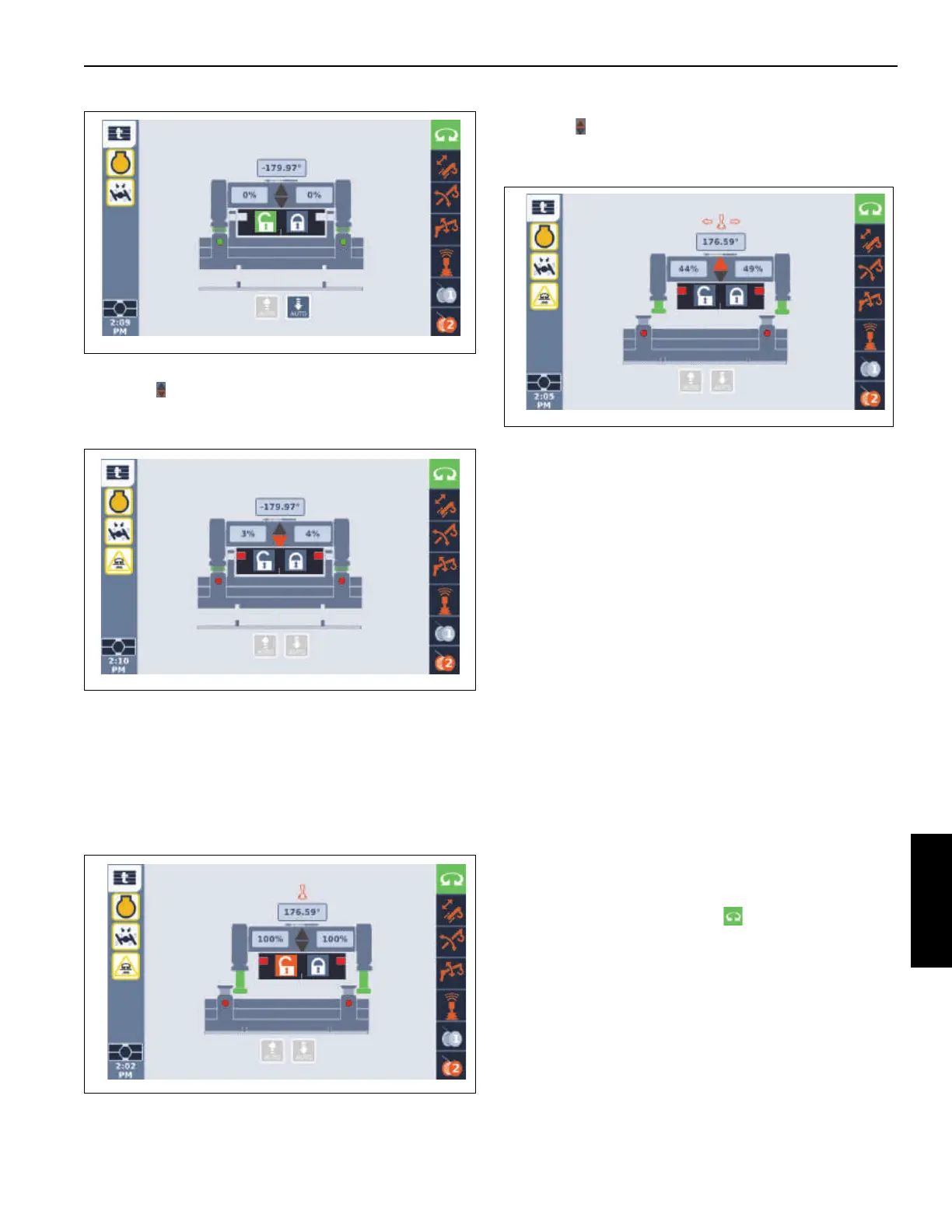

11. Using the ODM keypad or jog dial, highlight the down
arrow . Press and hold the OK button on the ODM
navigation control pad or the jog dial down until the
counterweight cylinders are fully extended.
12. Release the OK button on the ODM navigation control
pad or jog dial.
NOTE: The swing speed is restricted during this operation
when the counterweight cylinders are extended.
13. Using the Swing Controller (Dual Axis), swing the
superstructure to 176.5° or -176.5° to remove the
counterweight cylinders from the counterweight posts.
14. Using the ODM keypad or jog dial, highlight the Up
arrow . Press and hold the OK button on the ODM
navigation control pad or the jog dial down until the
counterweight cylinders are fully retracted.
When the counterweight cylinders are fully retracted, the
counterweight is removed.
Installing the Counterweight (Manual Mode)
NOTE: When possible, lift and lower the counterweight in
automatic mode. For more information, Installing
and Removing the Counterweight on/from the
Superstructure, page 5-19.
Use the following procedure to install the counterweight on
the superstructure in manual mode.
1. Fully extend the outriggers. For more information, see
Using the Outriggers, page 4-21.
2. Make sure the Turntable Swing Pin Lock Control is
unlocked.
3. Assemble the counterweight. For more information, see
Assembling the Counterweight for Operation, page
5-14.
4. Install the counterweight on the front of carrier. For more
information, see Installing the Counterweight on the
Carrier Platform, page 5-16.
5. Enable the Swing Enable/Disable Switch located on the
left armrest.
The Swing Enabled Indicator is enabled (green).
