Grove Published 7-23-2020, Control # 668-02 3-51
GRT9165 OPERATOR MANUAL OPERATING CONTROLS AND FEATURES
Battery Disconnect Switch

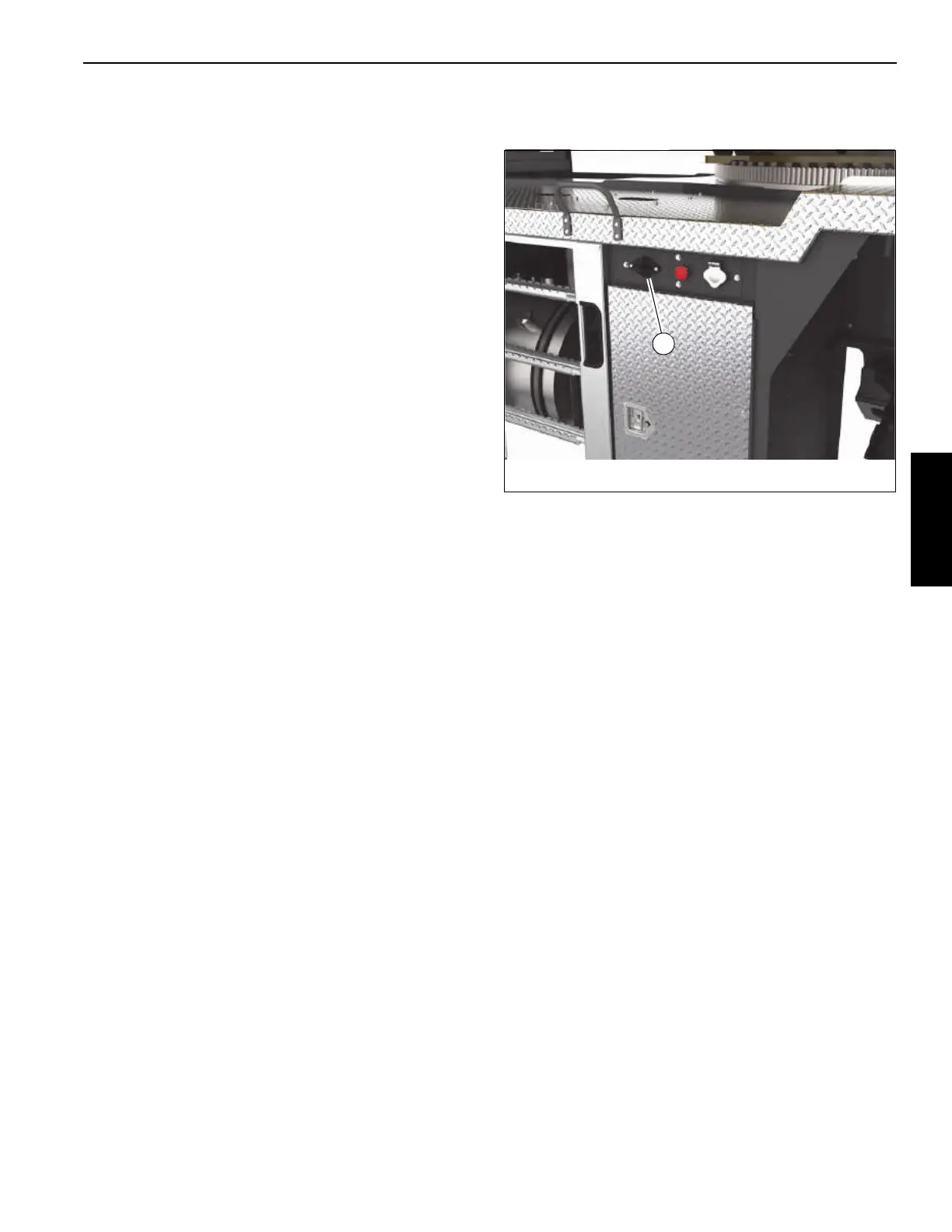

The Battery Disconnect Switch (1, Figure 3-39) is located on
the left side of the carrier.
The switch is a two-position ON/OFF rotary switch used to
disconnect power from the batteries to the crane.
Turn switch clockwise to the ON position to connect the
batteries. Turn switch counterclockwise to the OFF position
to disconnect the batteries.
Always disconnect batteries using the Battery Disconnect
Switch if crane will be inactive for over 24 hours.
The Battery Disconnect Switch has an integral lock feature
that allows the switch to be held in the ON position (battery
connected) or OFF position (battery disconnected) when
used with a padlock (useful for lockout/tagout programs).
NOTE: To avoid possible engine fault codes and undesir-
able operation, make sure that the Ignition Switch,
located on the right side of the steering column
(refer to Ignition Switch, page 3-8), has been in the
OFF (0) position for 2 minutes before discon-
necting the batteries from the crane.
