OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-100 Published 7-23-2020, Control # 668-02
Crane Function Menu Group
The Crane Function Menu Group includes the following
function icons:
• Outrigger Extend/Retract (page 4-100)
• Counterweight Removal/Installation (page 4-106)
• 360° Superstructure Lock/Unlock (page 4-106)
• Boom Extension Deployment/Stowage (page 4-107)
• Suspension Raise/Lower (page 4-107)
• Boom Removal/Installation (page 4-108)
Outrigger Extend/Retract

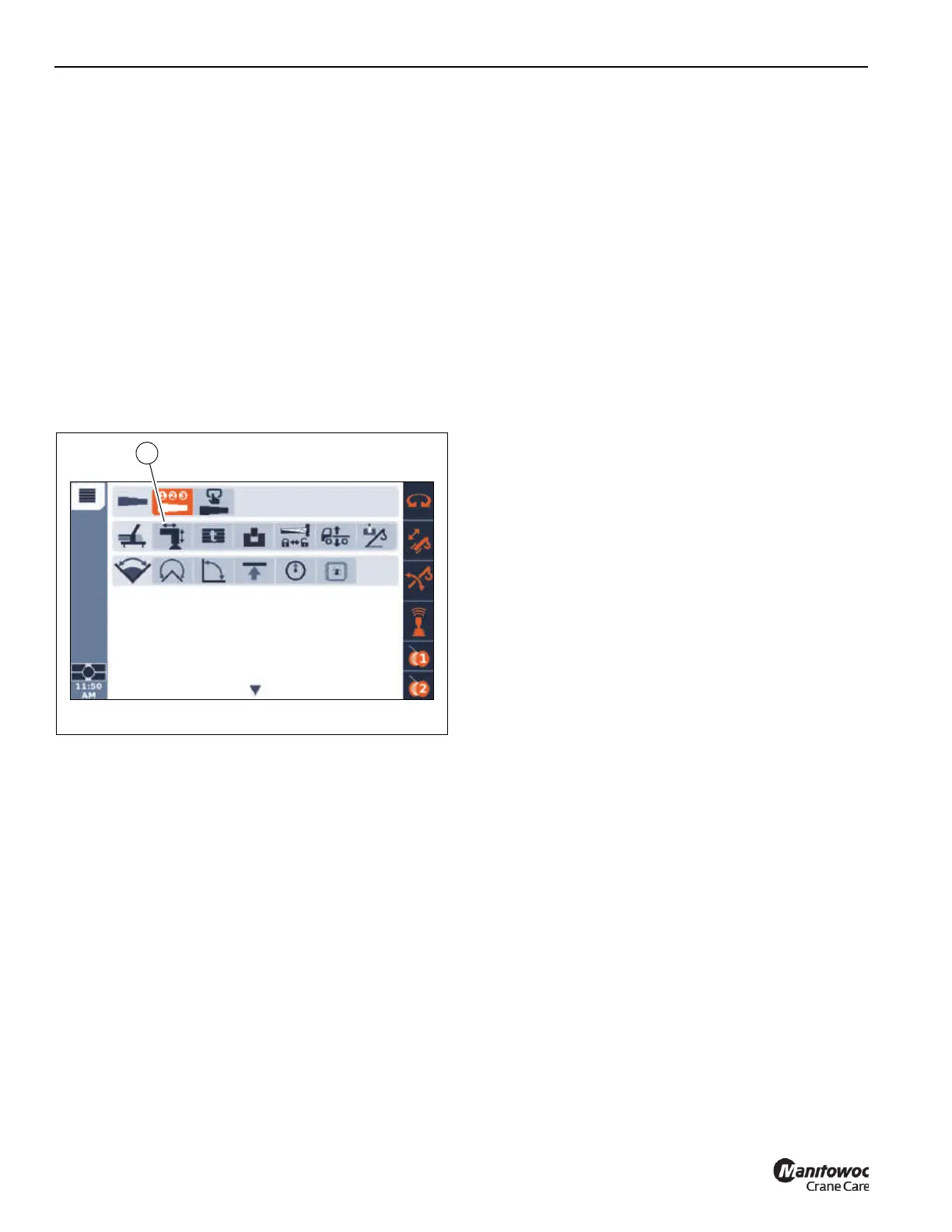

Select the Outrigger Extend/Retract icon (1, Figure 4-96)
under the Crane Function Group to show the Outrigger
Extend/Retract function screen.
The Outrigger Extend/Retract function screen (Figure 4-97)
allows the operator to set the outriggers and level the crane
using either a manual or semi-automatic mode. The
outriggers are also retracted and stowed from this function
screen.
NOTE: The outriggers are to be deployed with the boom
centered over the single front axle. In this
configuration, the direction the operator is facing is
considered the front of the crane.
The steering wheel symbol (6, Figure 4-97) shown
on the Outrigger Extend/Retract function screen
corresponds to the front of the crane. The terms left
and right correspond to the operator’s left and right
sides when looking forward over the front (single
axle) of the crane.
NOTE: Refer to Using the Outriggers, page 4-21 for
complete procedures to set the outriggers and level
the crane, and procedures to stow the outriggers.
NOTE: Outrigger controls are only enabled when the
engine is on, the parking brake is applied, and the
transmission is shifted to neutral and four-wheel
low.
