GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
4
Swing Range
• Select and confirm the symbol (1, Figure 4-188).
• Use the buttons (2) or (3) to select the required swing
range, e.g. 360°.
• Confirm the selection.
Entering the RCL Code
You may enter the RCL code for the rigging mode according
to the Lifting capacity table.
Refer to the Lifting capacity table for the current rigging
mode. The corresponding RCL code is specified at the top of
the table (e.g. 1100).
• Select and confirm the symbol (1, Figure 4-189).
• Use the buttons (2) or (3) to select the required RCL
code.
• Confirm the selection.
The other displays will show the corresponding rigging
mode.
Now you can enter the reeving and accept the rigging mode.
Selecting the Hoist and Entering the Reeving
Entering the reeving does not have an effect on any other
component that has already been entered.
8849-38a

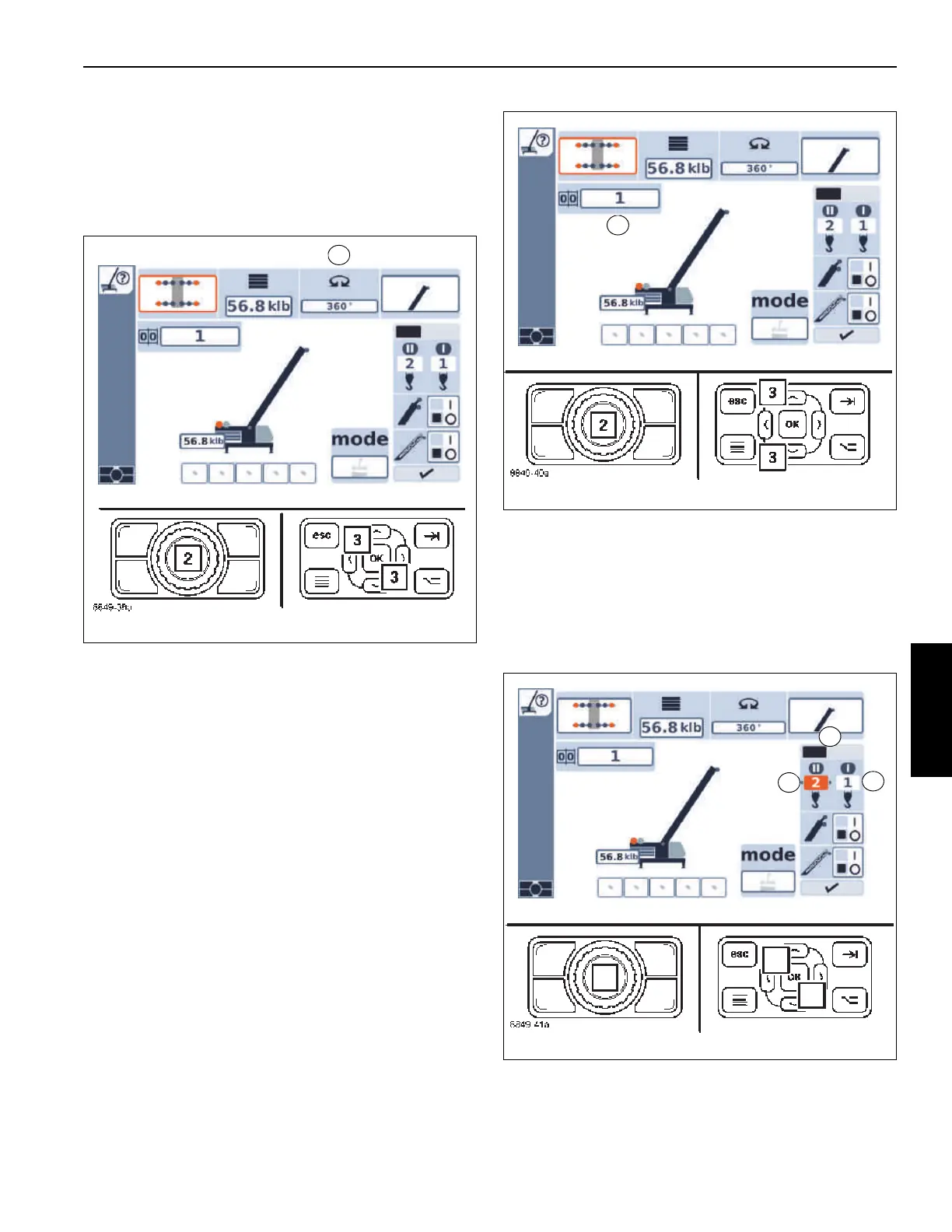

FIGURE 4-188
1
9905-6
8849-40a
FIGURE 4-189
1
9905-6
8849-41a
FIGURE 4-190
1
8882-28a
2
9905-3
3
4
5
5
