OPERATING CONTROLS AND FEATURES GRT9165 OPERATOR MANUAL
3-20 Published 7-23-2020, Control # 668-02
RATED CAPACITY LIMITER DISPLAY
MODULE AND OPERATOR DISPLAY
MODULE

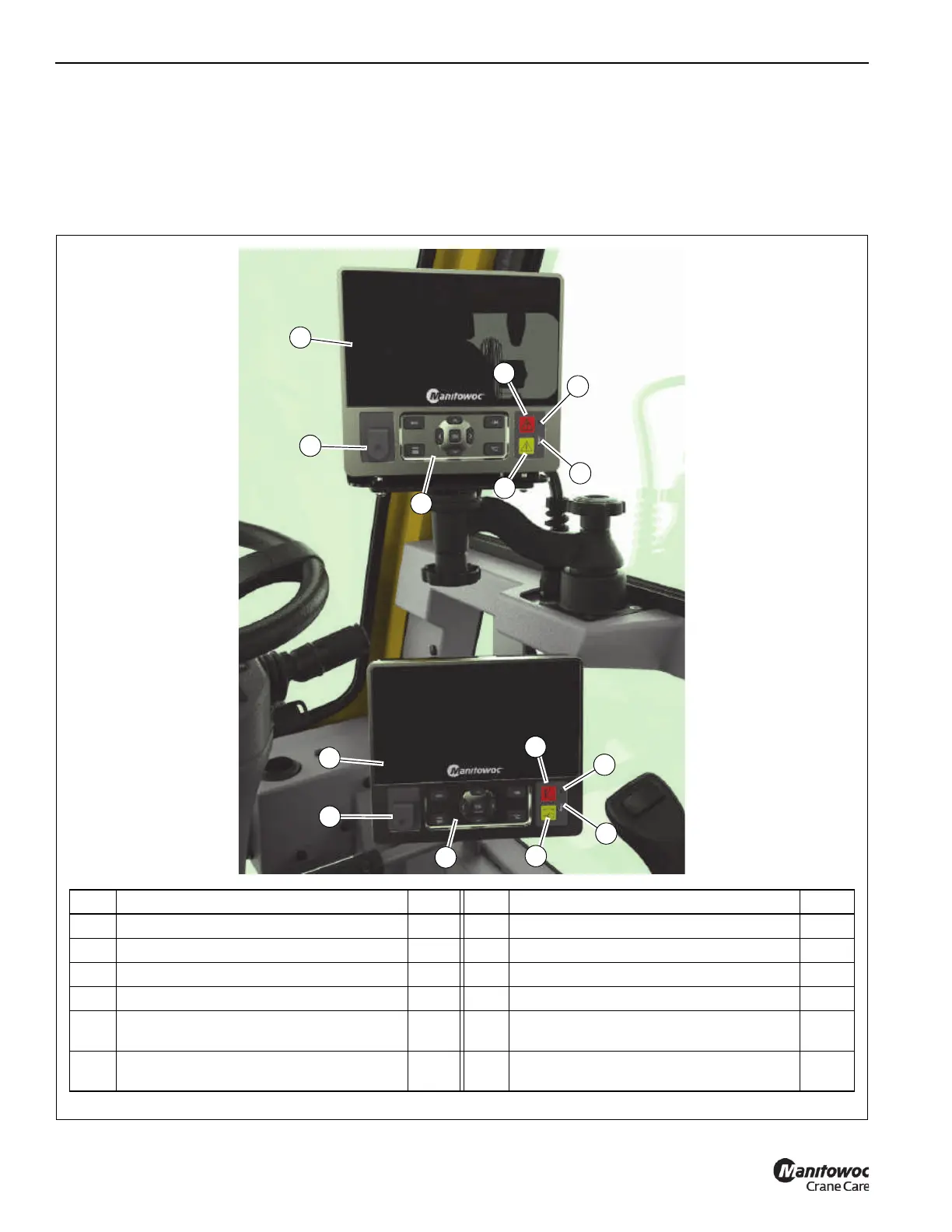

The Rated Capacity Limiter Display Module (RDM) and the
Operator Display Module (ODM) (Figure 3-14) are located to
the right of the steering column.
Each module consists of a display screen, navigation control
pad, warning indicators, screen brightness sensor, and USB
diagnostic connector.
Item Description Page Item Description Page
1 Rated Capacity Limiter Display Module (RDM) 3-21 6 RCL Early Warning Indicator 3-22
2 Operator Display Module (ODM) 3-21 7 Anti-Two-Block (A2B) Indicator 3-22
3 Navigation Control Pad 3-21 8 Swing Brake Engaged Indicator 3-23
4 USB Connector 3-22 9 Brightness Sensor 3-23
5
RCL Shutdown Warning Indicator (Non-CE
Certified Cranes)
3-22 10 Internal Temperature Warning Indicator 3-23
5
RCL Shutdown Warning Indicator (CE Certified
Cranes)
3-22
9838-10
FIGURE 3-14
2
1
7
8
4
9
10
4
6
3
3
9
5
10
