address to access the Internet. The ONU connects to the optical line terminal (OLT) in
GPON access mode and then connects to the upper-layer network, to provide the high-
speed Internet access service.
l Voice service ports connect to phone sets, fax machines, or point of sale (POS) machines.
l TVs connect to an ONU through set top boxes (STBs) to receive VoD and multicast
services.
l The Internet access, voice, and IPTV services are secure.
– The Internet access service is protected against unauthorized access, user account
forgery or unauthorized borrowing, MAC or IP address spoofing, and attacks from
malicious users.
– The voice and IPTV services are protected against MAC or IP address spoofing, attacks
from malicious users, and heavy traffic.
l A service fault is easy to locate, and services are easy to maintain.
Usage Scenario

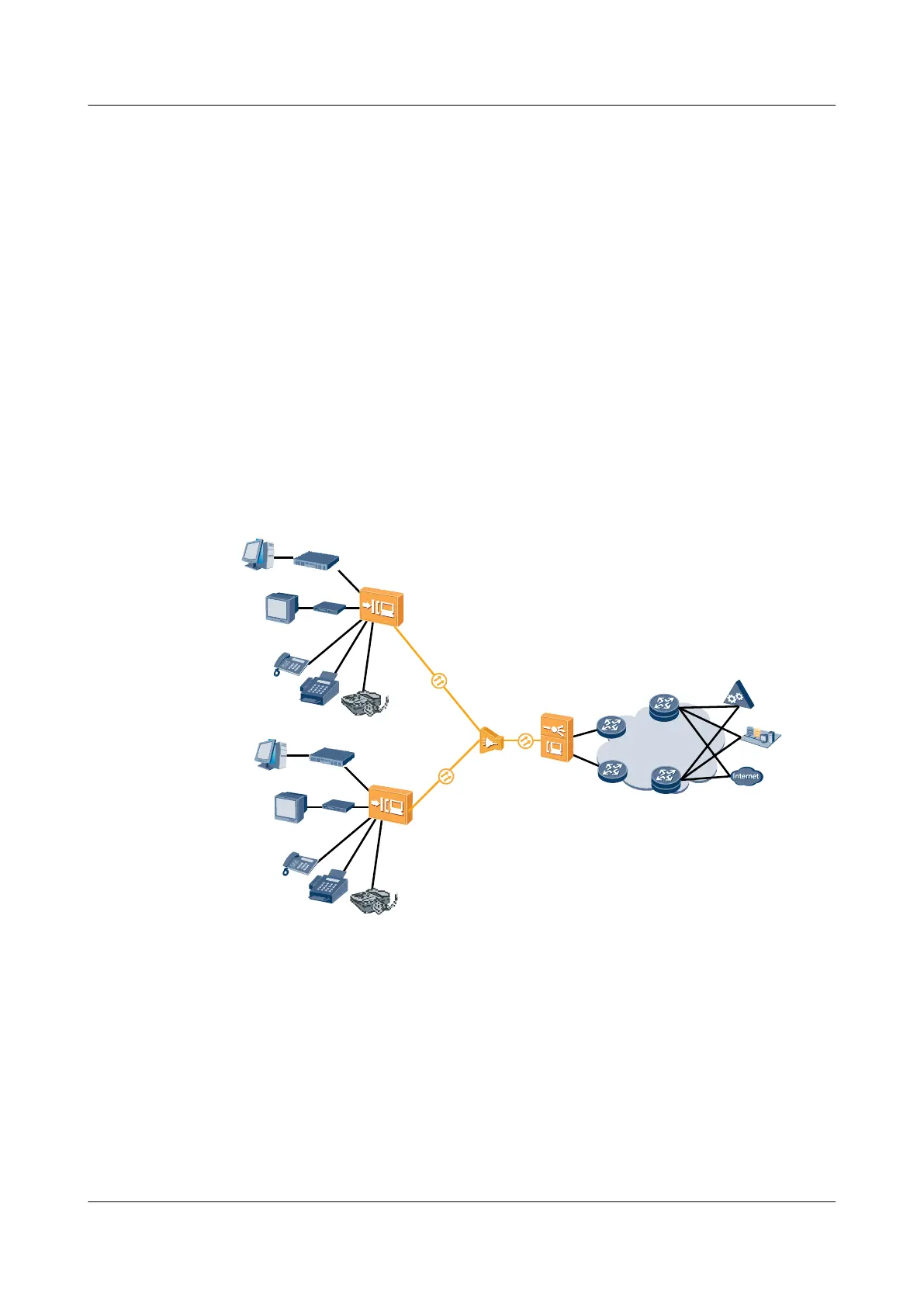

Figure 12-9 Gateway networking
Metro Network
NGN/IMS
IPTV
Headend
Internet
UPE
PE-AGG
OLT
PE-AGG
UPE
Optical
splitter
ONU
PC
TV
STB
Phone
Fax
POS
TV
STB
Phone
Fax
POS
ONU
PC
LSW
LSW
12.4.2.2 Configuration Procedure
Figure 12-10 shows the configuration procedure in the FTTO small- and medium-sized
enterprises (SME) scenario.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
12 FTTO Configuration(SOHO and SME)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1188
