Step 4 Check whether settings of DIP switches on the H801ESC board are consistent with the
application. If the settings are inconsistent with the application, set the DIP switches again
according to "Description of DIP Switches".
Step 5 Insert the H801ESC board into the PDU, as shown in (1) of Figure 1-4.

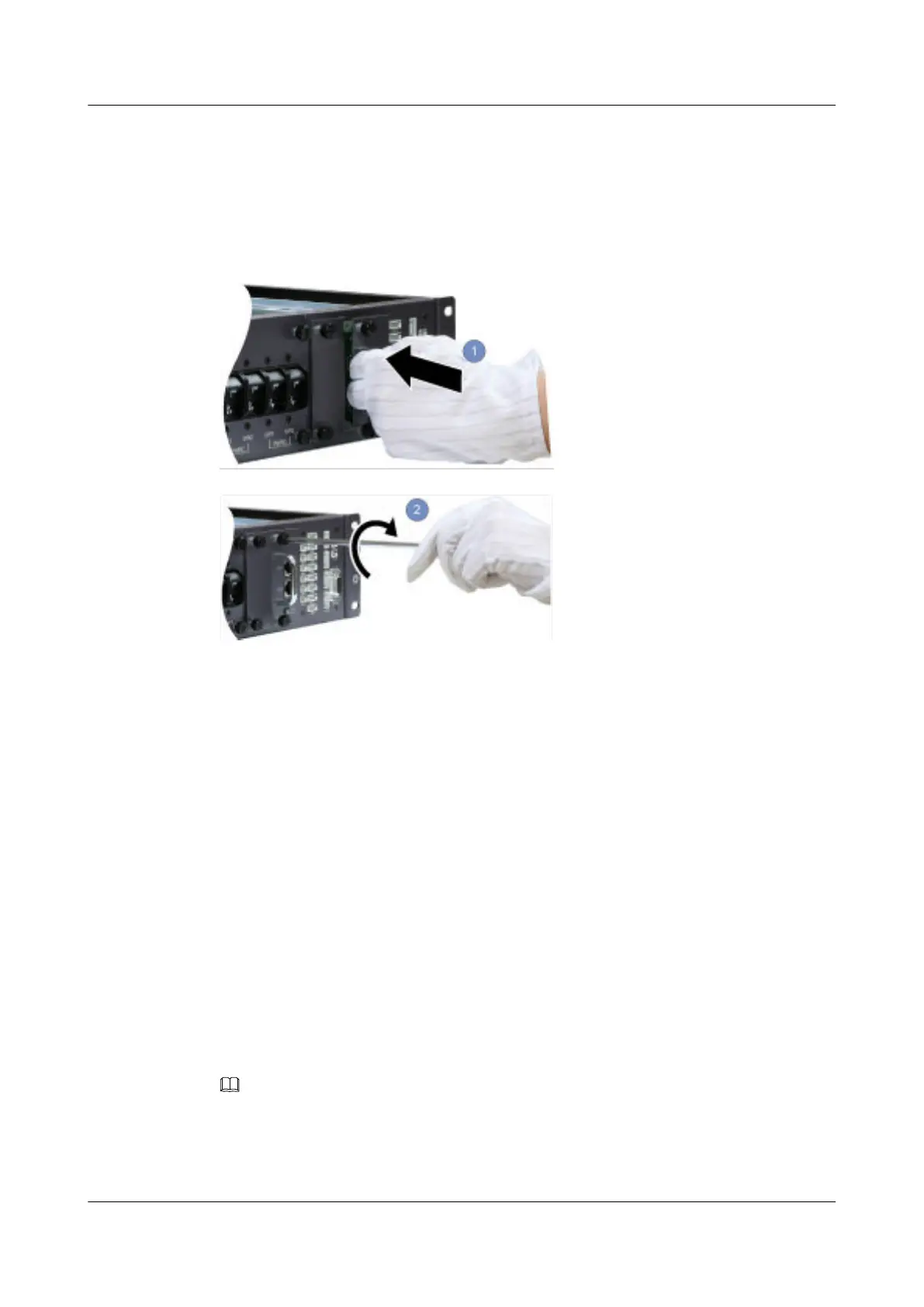

Figure 1-4 Inserting the H801ESC board
Step 6 Fasten the screws on the H801ESC board clockwise by using the Phillips screwdriver, as shown
in (2) of Figure 1-4.
Step 7 Reconnect the environment monitoring cable to the H801ESC board.
----End
Result
The settings of DIP switches on the H801ESC board are consistent with the actual requirements.
1.3.1.2 Checking the Settings of DIP Switches on the Fan Monitoring Board
This topic describes how to check the settings of DIP switches on the fan monitoring board.
Checking the settings of DIP switches helps ensure that the settings meet the application of DIP
switches.
Prerequisites
NOTE
Do not change the DIP switch setting on the fan monitoring board of the MA5603T. The DIP switches on
the fan monitoring board of the MA5608T does not support the DIP switch.
The device must be powered off.
