Considering simple and flexible service provisioning and easy OM, category-5 cables and FTTB
(LAN access) are used for deployment.
Application Scenarios
As shown in Figure 11-3, the ONU is deployed in the building and is connected to the user's
home through the category-5 cable.
l For the Internet access service: Users are connected to the ONU through category-5 cables
and are authenticated by dialup using PCs. Each user has an independent account and is
authenticated and managed on the BRAS.
l For the VoIP service: Users are provisioned with the VoIP service through the ONU with
the build-in voice module.
ONU for FTTB networking: MA5616, MA5822, MA5612.

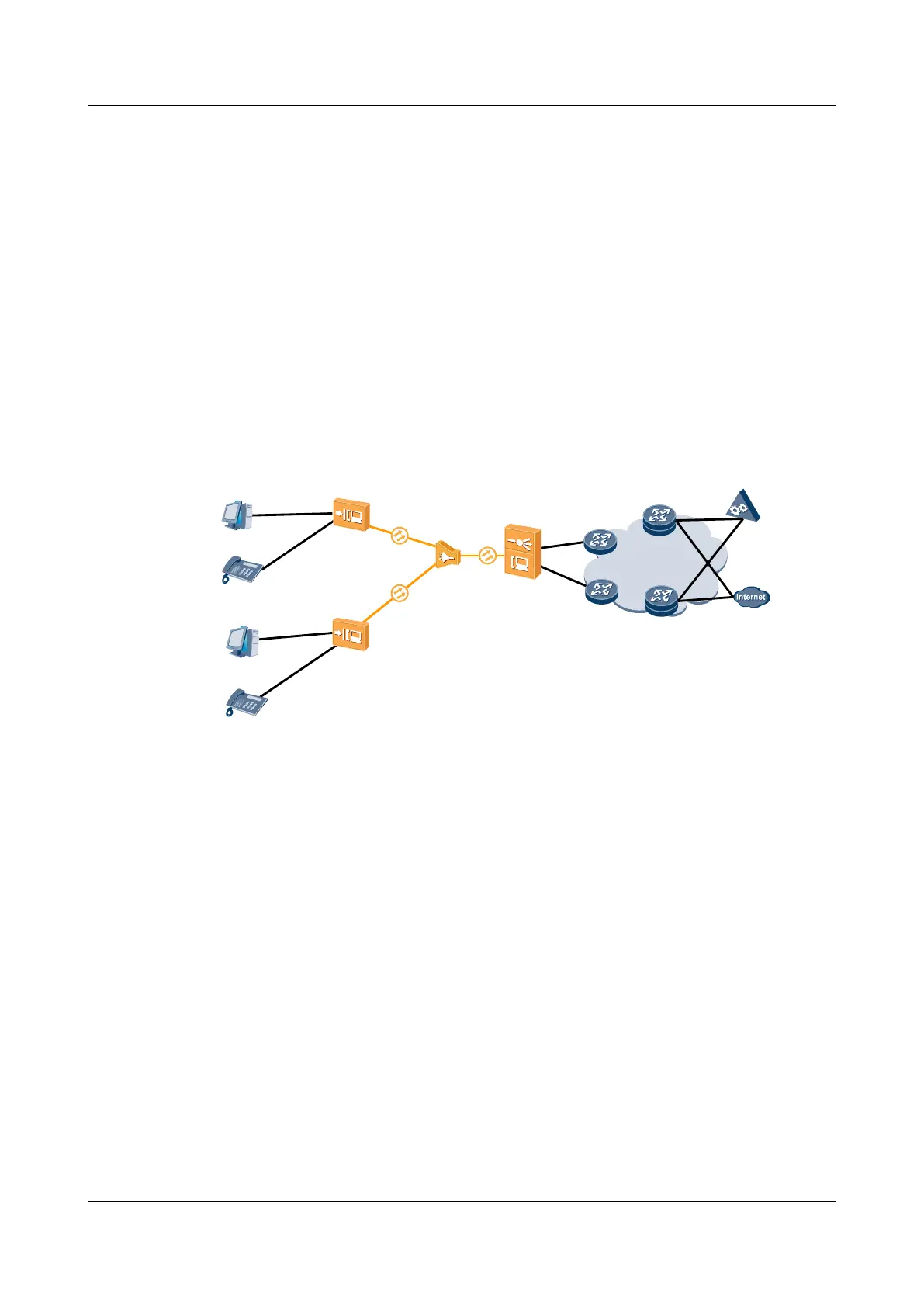

Figure 11-3 Example network of the FTTB service (LAN access)
ONU
Phone
PC
PC
Optical
splitter
Phone
ONU
P
O
T
S
P
O
T
S
LAN
LAN
Metro Network
NGN/IMS
Internet
UPE
PE-AGG
OLT
PE-AGG
UPE
11.3.1.2 Configuration Procedure
Figure 11-4 shows the configuration roadmap diagram in the FTTB and FTTC networking
scenarios using LAN access without HGWs.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 11 FTTB and FTTC Solution Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
858
