1.4.1.3 Commissioning Inband Management (SNMP V1 and V2)
This topic describes how to implement the inband network management on the MA5600T/
MA5603T/MA5608T through the upstream port (inband network management port). This
enables the U2000 to maintain the MA5600T/MA5603T/MA5608T through this management
channel. In the inband network management mode, the service channel of the device is used to
transmit the management information. The network is flexible and requires no additional
devices, which helps save the cost for carriers. This network, however, is difficult to maintain.
Service Requirements
In the network as shown in Figure 1-60, the service requirements are as follows:
l The MA5600T/MA5603T/MA5608T provides the inband network management through
the upstream port.
l The upstream port of the GIU board on the MA5600T/MA5603T/MA5608T is used as the
inband network management port.
l A static route is used between the MA5600T/MA5603T/MA5608T and the U2000.

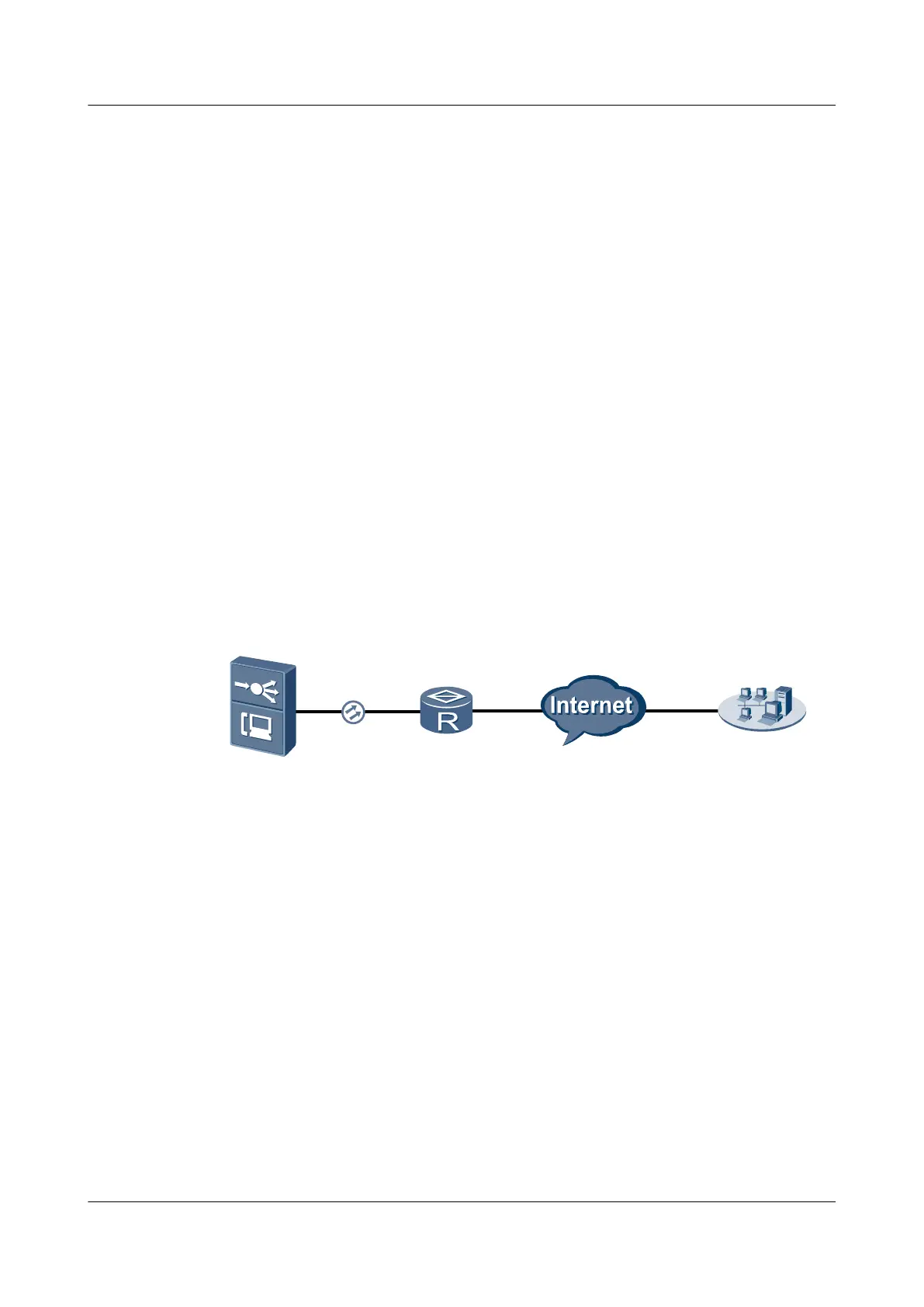

Figure 1-60 Example network for the inband network management
=
U2000
10.10.1.10/24
VLAN:1000
10.50.1.10/24
10.50.1.1/24
Router
Access node
Figure 1-61 shows the flowchart for commissioning the inband network management.
