quit
service-port vlan 20 gpon 0/2/0 ont 0 gemport 0 multi-service user-vlan 20
save
1.4.7 Commissioning the Management Channel Between the OLT
and the GPON ONT
This topic describes how to commission the GPON OLT to ensure that the service configuration
and centralized management of the GPON ONTs are performed on the GPON OLT using the
ONT Management and Control Interface (OMCI) protocol.
Service Requirements
In the network as shown in Figure 1-81, the service requirements are as follows:
l A GPON port on the MA5600T/MA5603T/MA5608T is connected to 128 ONTs using an
optical splitter.
NOTE
The following considers ONT 0 as an example for commissioning the management channel between
the OLT and the GPON ONT.
l On the MA5600T/MA5603T/MA5608T, you can configure ONTs at different locations in
a centralized manner.
l The DBA profile is used to limit the user rate to the fixed 10 Mbit/s bandwidth.

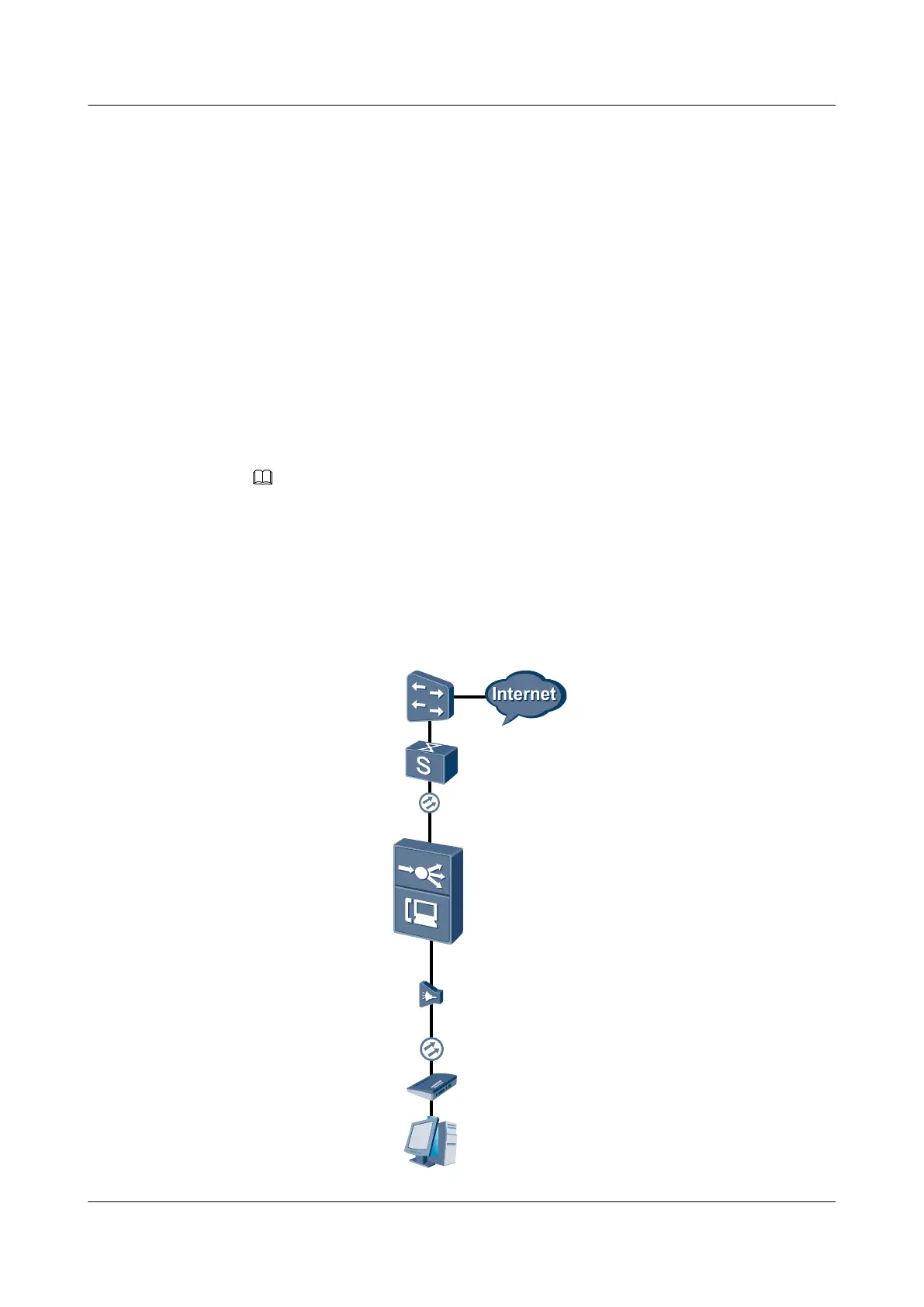

Figure 1-81 Example network for commissioning the management channel between the OLT
and the GPON ONT
ONT
Splitter
PC
192.168.1.200/24
BRAS
LSW
VLAN: 20
192.168.1.100/24
Access node
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
179
