NOTE
The multicast commands that are not listed in this table are the commands shared by IPv4 and IPv6 multicast
services.
19.2.3 Configuration Difference Between IPv6 and IPv4 on the ONT
For the bridging ONT, configurations for IPv6 and IPv4 are the same. For the gateway ONT,
the HSI service configurations for IPv6 and IPv4 are different.
Configuring the IPv6 WAN Port on the Gateway ONT
For IPv6 IPTV multicast service, no extra configuration is required. For the IPv6 HSI service,
the Internet WAN port on the gateway ONT must be configured (only Internet WAN port
supports IPv6). If the gateway ONT uses the IPv6/IPv4 DS scheme, select IPv4/IPv6 for
Protocol Type. If the gateway ONT uses the DS-Lite scheme, select IPv6 for Protocol Type.
For details, see Figure 19-1.

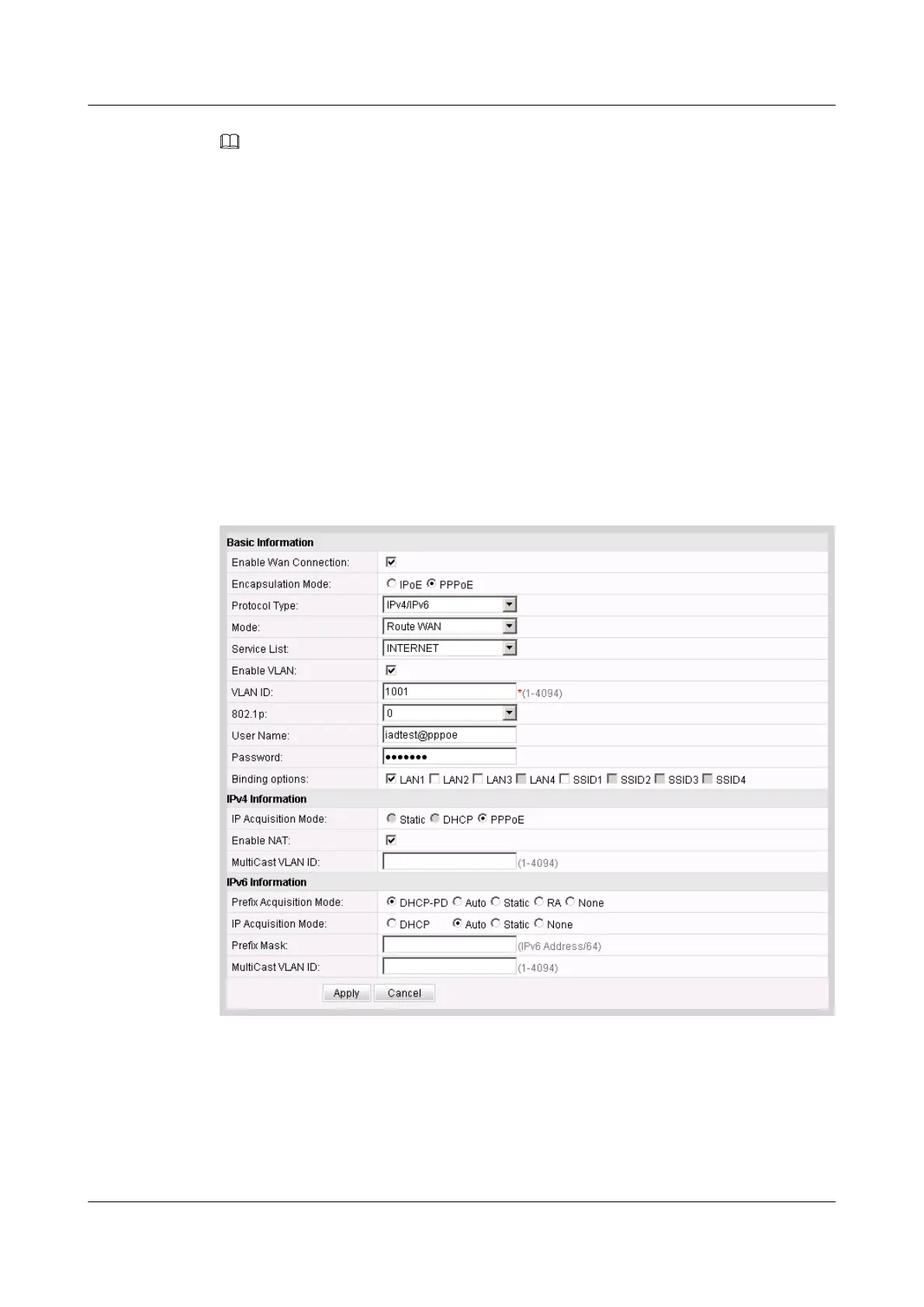

Figure 19-1 Configuring the IPv6 WAN port
Configuring the IPv6 Address of the LAN Side on the Gateway ONT
The gateway ONT can be configured to allocate IPv6 addresses to the terminals after IPv6 is
introduced. For details, see Figure 19-2.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
19 IPv6 Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1883
