3-50 ENGINE
CYLINDER

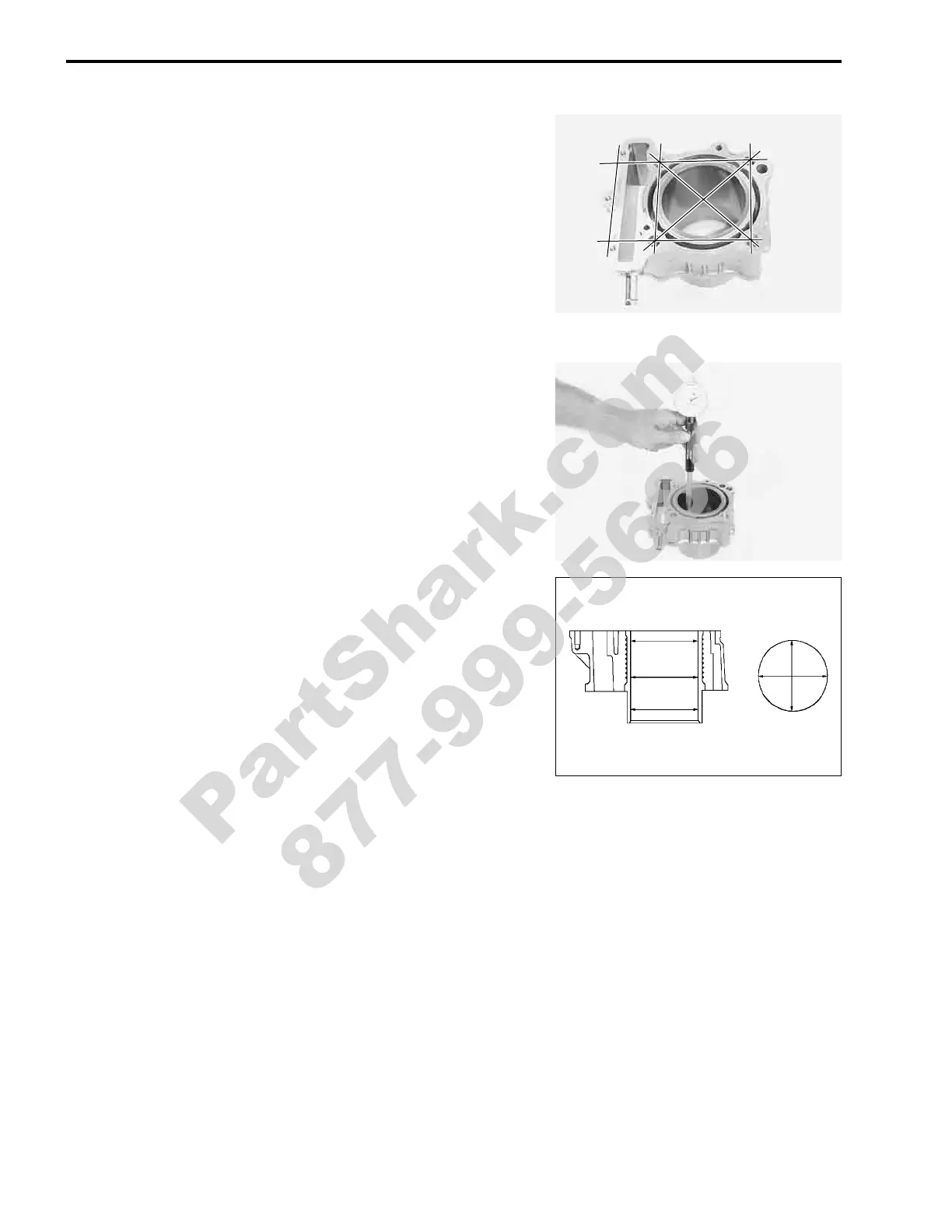

CYLINDER DISTORTION
Check the gasketed surface of the cylinder for distortion with a
straightedge and thickness gauge, taking a clearance reading at
several places as indicated.
If the largest reading at any position of the straightedge exceeds
the limit, replace the cylinder.
& Cylinder distortion
Service Limit: 0.05 mm (0.002 in)
" 09900-20803: Thickness gauge
CYLINDER BORE
Inspect the cylinder wall for any scratches, nicks or other dam-
age. Measure the cylinder bore diameter at six places.
& Cylinder bore
Standard: 81.000 – 81.015 mm (3.1890 – 3.1896 in)
" 09900-20508: Cylinder gauge set
