4-8 FI SYSTEM DIAGNOSIS
USING TESTERS
• Use the Suzuki multi-circuit tester set (09990-25008).
• Use well-charged batteries in the tester.
• Be sure to set the tester to the correct testing range.
USING THE TESTER
• Incorrectly connecting the
+ and
- probes may cause the
inside of the tester to burnout.
• If the voltage and current are not known, make measure-
ments using the highest range.

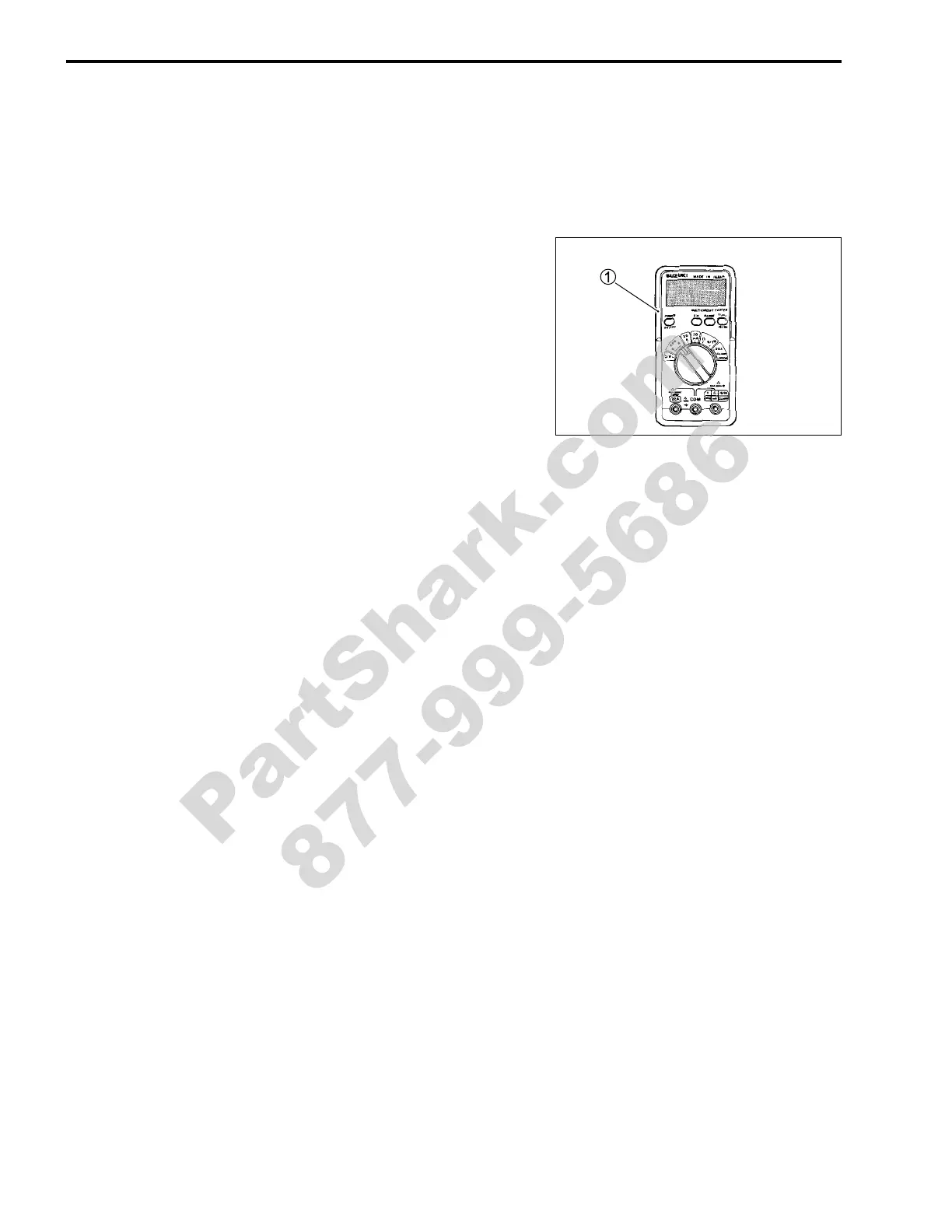

• When measuring the resistance with the multi-circuit tester
1,
∞ will be shown as 10.00 MΩ and “1” flashes in the display.
• Check that no voltage is applied before making the measure-
ment. If voltage is applied the tester may be damaged.
• After using the tester, turn the power off.
! 09900-25008: Multi-circuit tester set
NOTE:
* When connecting the multi-circuit tester, use the needle
pointed probe to the back side of the lead wire coupler and
connect the probes of tester to them.
* Use the needle pointed probe to prevent the rubber of the
water proof coupler from damage.
! 09900-25009: Needle pointed probe set
