7-74 CHASSIS
BRAKE DISC INSPECTION
Inspect the rear brake disc in the same manner as the front
brake disc. ("7-65)
% Service Limit
Rear disc thickness: 5 mm (0.20 in)
Rear disc runout: 0.30 mm (0.012 in)
* Brake disc removal ("7-37)
* Brake disc installation ("7-42)

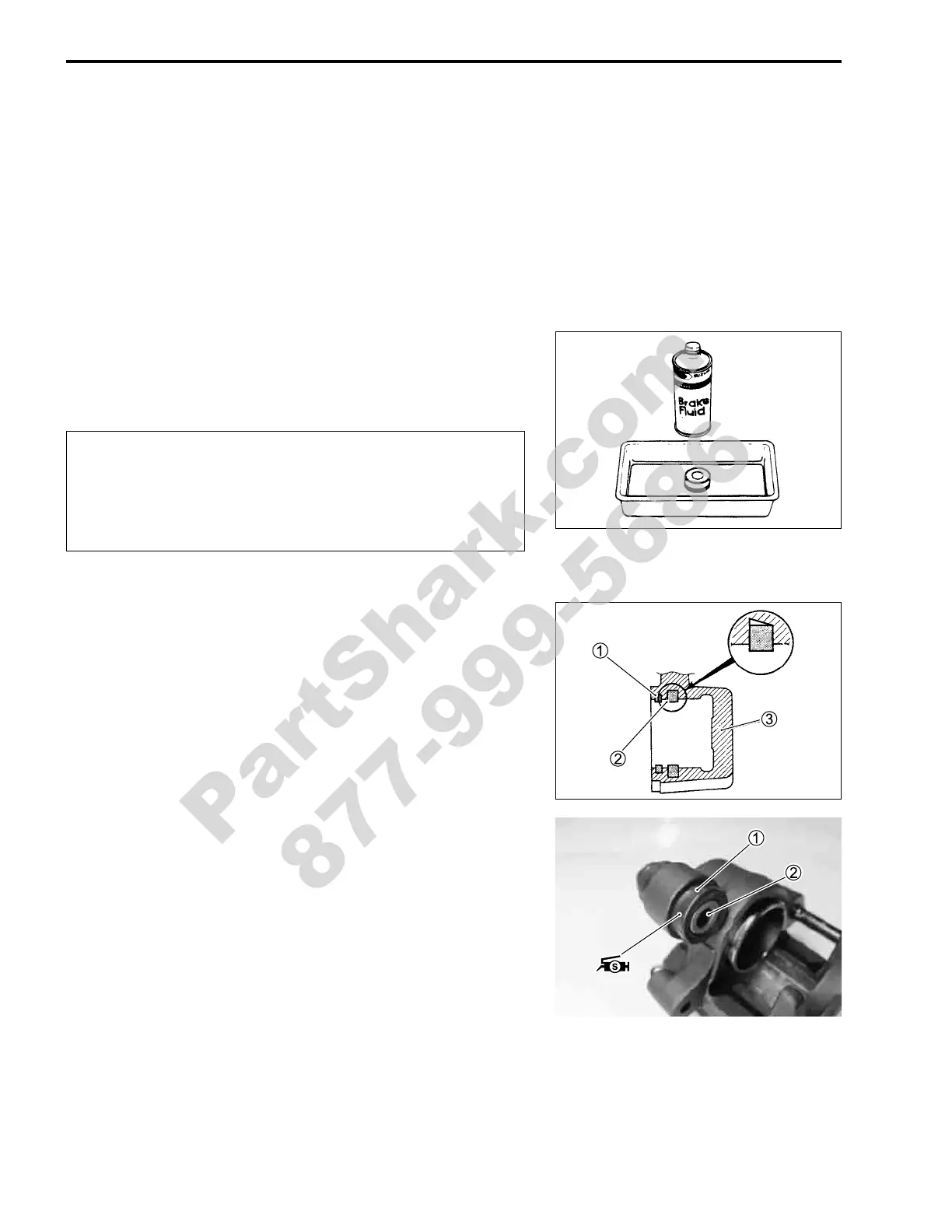

CALIPER REASSEMBLY AND REMOUNTING
Reassemble and remount the caliper in the reverse order of
removal and disassembly. Pay attention to the following points:
#
, Specification and Classification: DOT 4
PISTON SEAL
• Install the piston seals as shown in the illustration.
• Install the piston to the caliper.

1 Dust seal

2 Piston seal

3 Caliper
BRAKE CALIPER SLIDING PIN
• Install the boot

1.
• Apply SUZUKI SILICONE GREASE to the inside of the boot.
- 99000-25100: SUZUKI SILICONE GREASE
• Install the spacer

2.
* Wash the caliper components with fresh brake fluid
before reassembly. Never use cleaning solvent or
gasoline to wash them.
* Apply brake fluid to the caliper bore and piston to be
inserted into the bore.
