CHASSIS 7-49

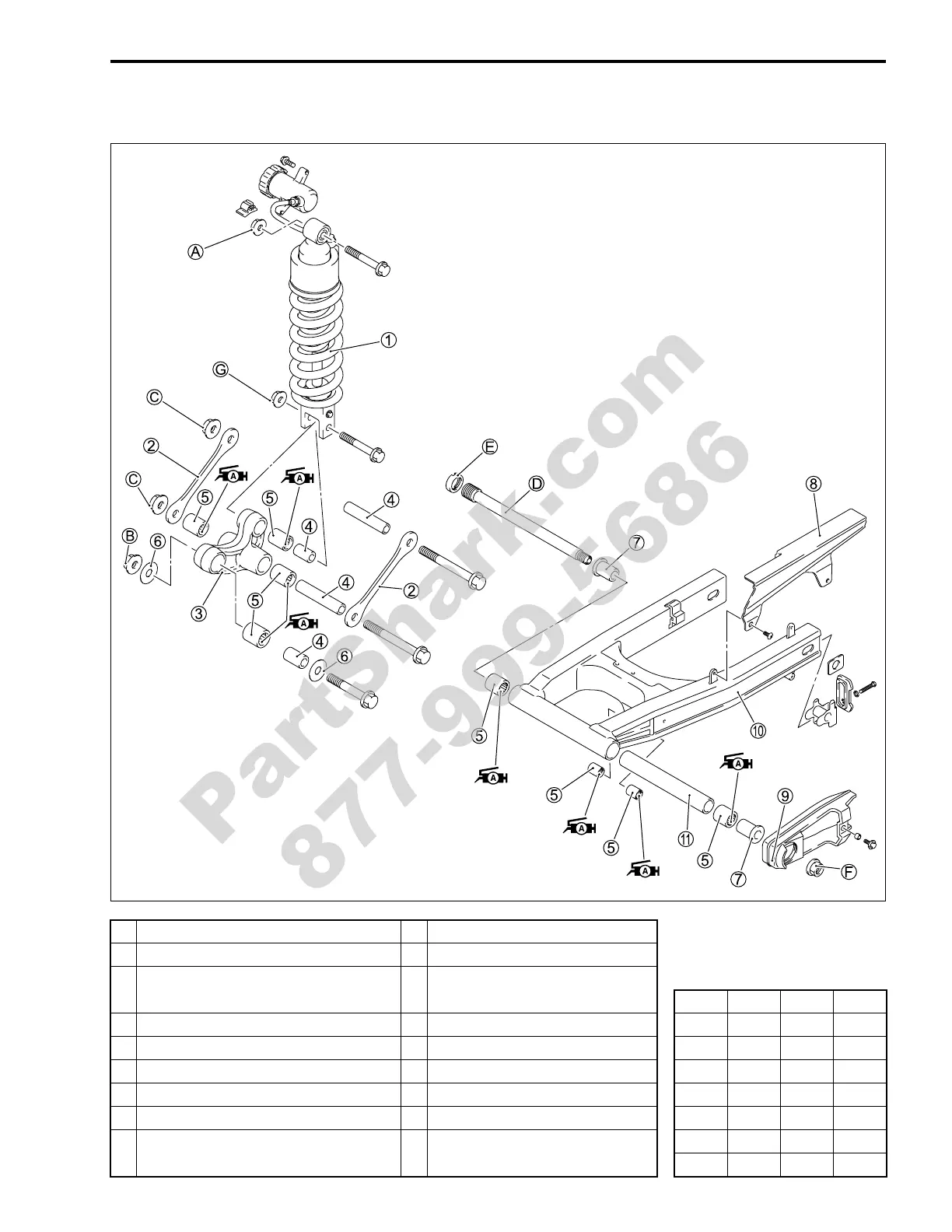

REAR SWINGARM
CONSTRUCTION

1 Rear shock absorber

0 Swingarm

2 Rear cushion rod

A Center spacer

3 Rear cushion lever

A
Rear shock absorber upper
mounting nut
!
ITEM N·m
kgf-m lb-ft

4 Spacer

B Cushion lever nut

A 50 5.0 36.0

5 Bearing

C Cushion rod nut

B 78 7.8 56.5

6 Washer

D Swingarm pivot shaft

C 78 7.8 56.5

7 Pivot spacer

E Swingarm pivot lock-nut

D 15 1.5 11.0

8 Chain cover

F Swingarm pivot nut

E 90 9.0 65.0

9 Chain buffer

G
Rear shock absorber lower
mounting nut

F 100 10.0 72.5

G 50 5.0 36.0
