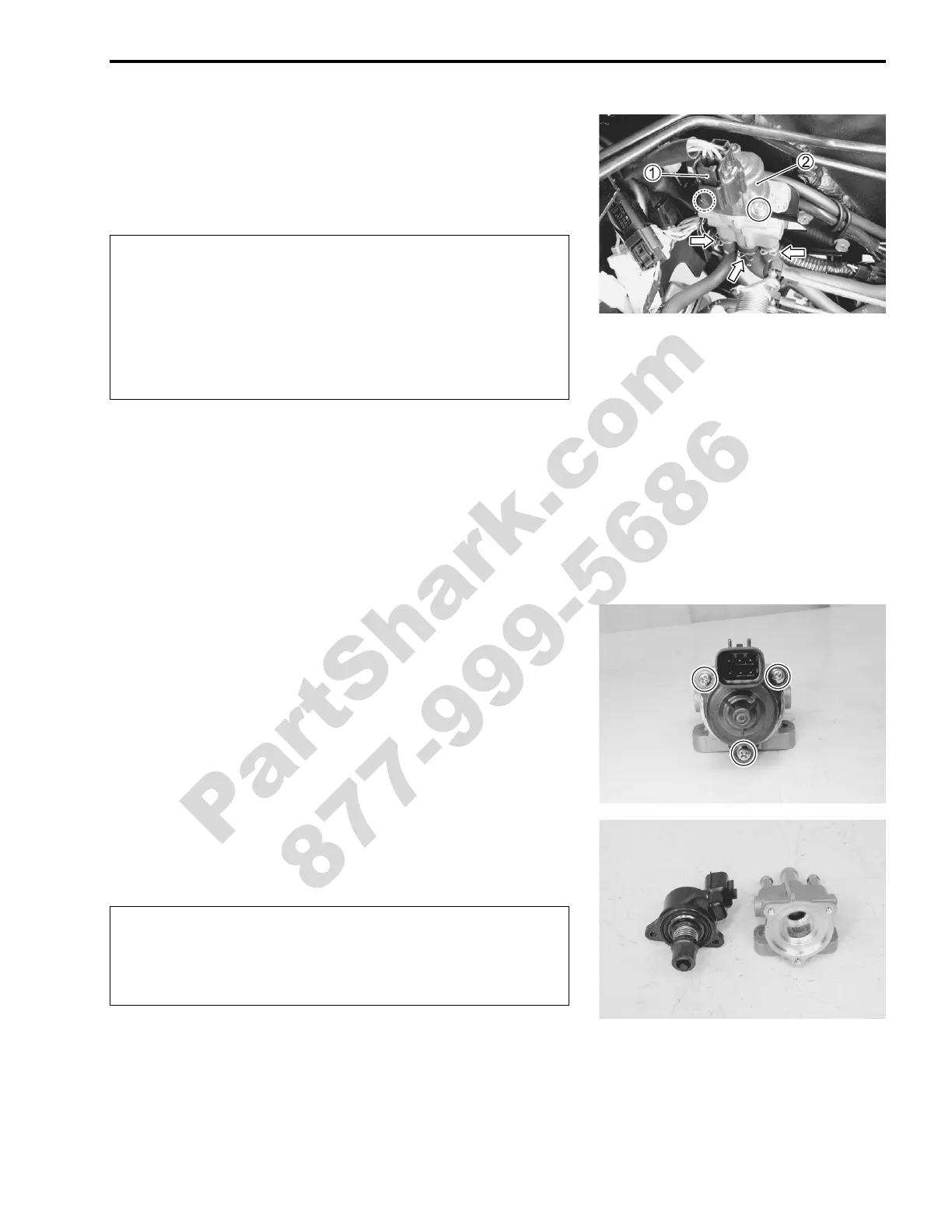

ISC VALVE
REMOVAL
• Remove the air cleaner box. (!Page 51)
• Disconnect the ISC valve coupler 1.
%
• Disconnect the hoses and remove the ISC valve 2.
INSTALLATION
Install the ISC valve in the reverse order of removal.
NOTE:
When removing or replacing the ISC valve, must be set the ISC
valve to the PRE-SET position. (!Page 64)
INSPECTION
The ISC valve can be checked without removing it.
NOTE:
The ISC valve can be checked without removing it.
(!Page 37)
If the resistance is not within the standard range, replace the
ISC valve motor assembly with a new one.
Visual inspection
• Remove the screws.
• Check the ISC valve for wear, damage or carbon deposited,
replace it with a new one.
%
Be careful not to disconnect the ISC valve coupler at
least 5 seconds after ignition switch is turned to OFF.
If the ECM coupler or ISC valve coupler is discon-
nected within 5 seconds after ignition switch is turned
to OFF, there is a possibility of an usual valve posit-
ion being written in the ECM and causing an error of the
ISC valve operation.
Normally, the removed O-ring must be replaced with a
new one. However, this O-ring is not available for the
spare parts. If it is found to be damaged, replace the
ISC valve with new one.
DL650K7/AK7 (’07-MODEL) 13-63
