ELECTRICAL SYSTEM 8-7

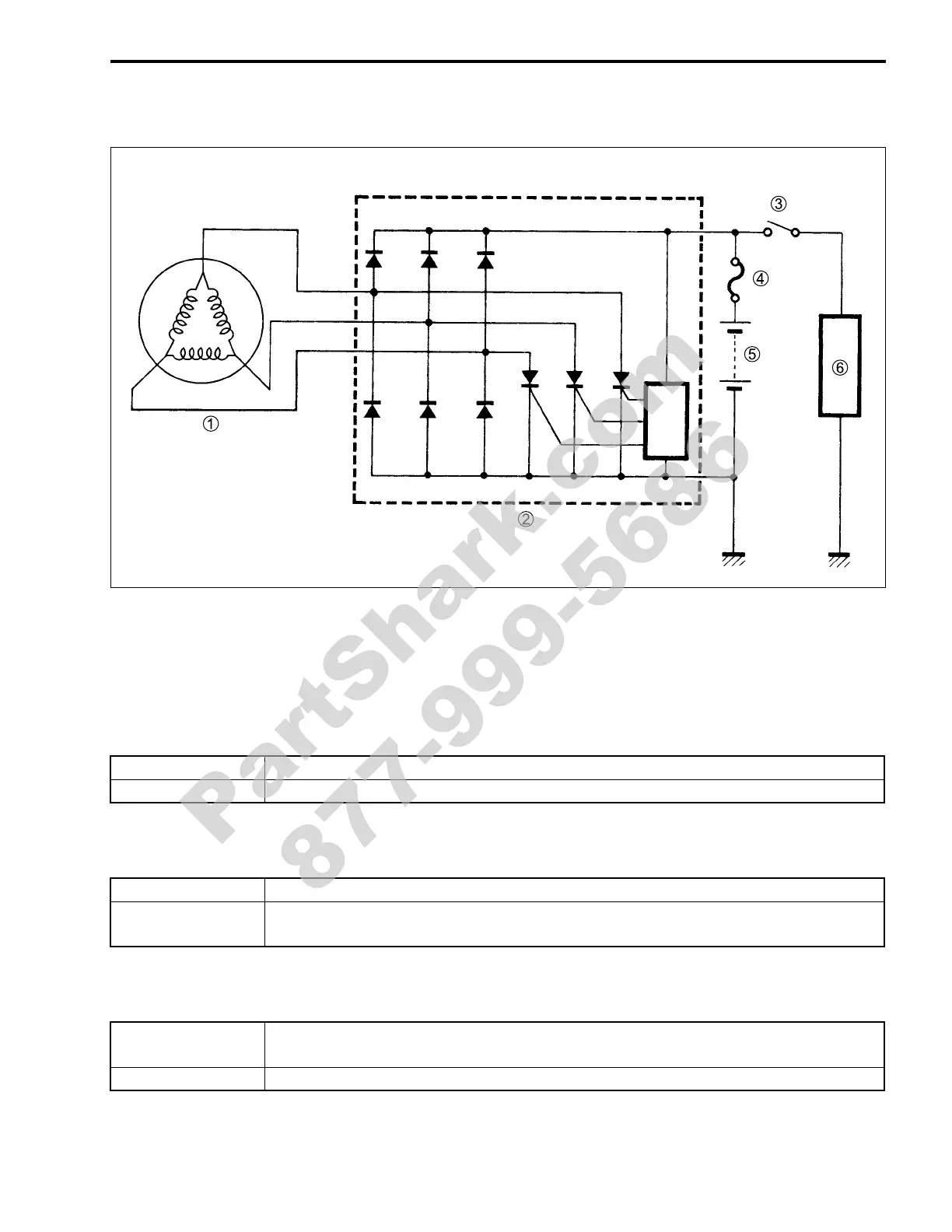

CHARGING SYSTEM

1 Generator

2 Regulator/rectifier

3 Ignition switch

4 Main fuse

5 Battery

6 Load
TROUBLE SHOOTING
Battery runs down quickly
Step1
1) Check accessories which use excessive amounts of electricity.
Are accessories being installed?
Step2
1) Check the battery for current leaks. (!8-9)
Is the battery for current leaks OK?
Step3
1) Measure the charging voltage between the battery terminals. (!8-9)
Is the battery charging of voltage OK?
YES Remove accessories.
NO Go to Step2.
YES Go to Step3.
NO
• Short circuit of wire harness.
• Faulty electrical equipment.
YES
• Faulty battery.
• Abnormal driving condition.
NO Go to Step4.
