7-58 CHASSIS

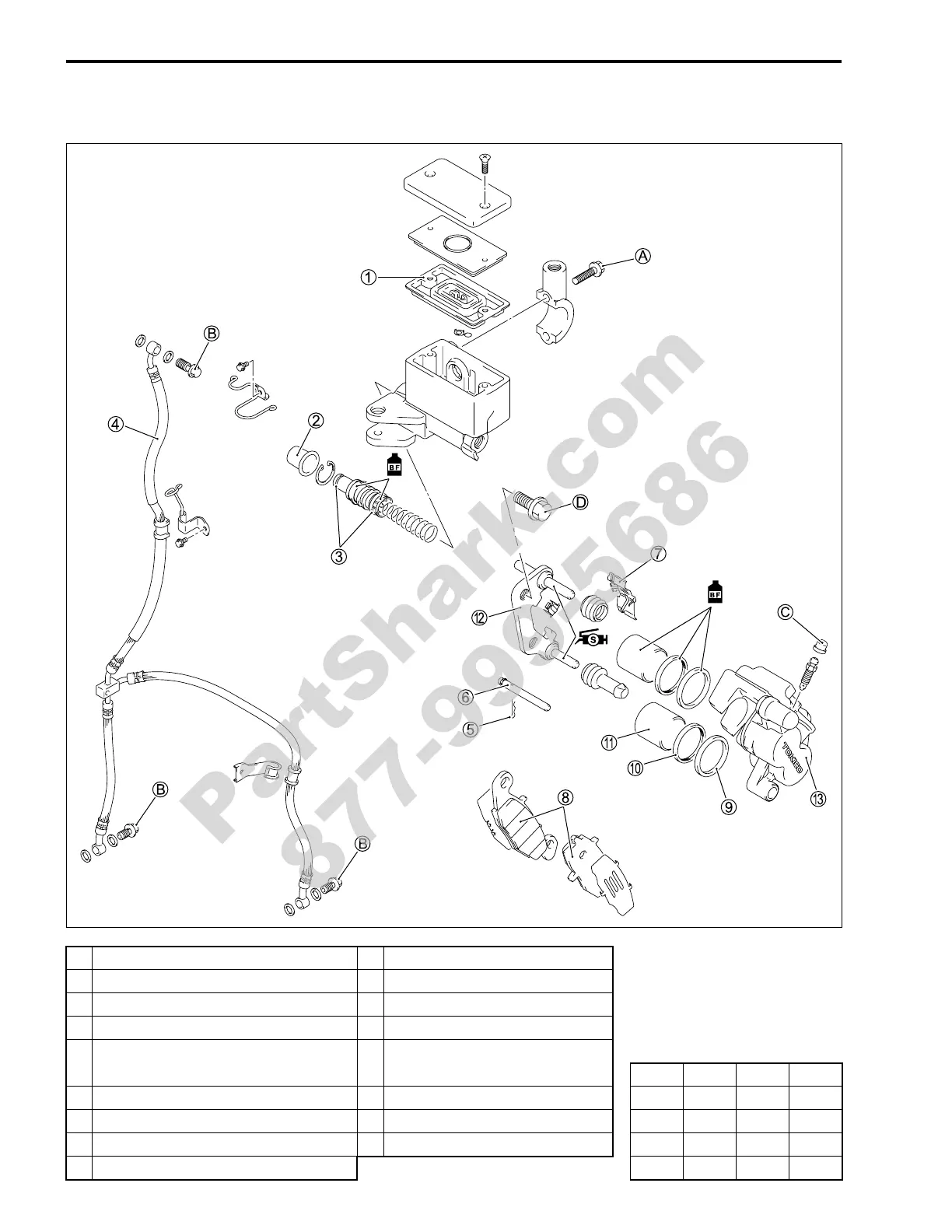

FRONT BRAKE
CONSTRUCTION

1 Diaphragm

0 Dust seal

2 Dust boot

A Piston

3 Piston/cup set

B Caliper holder

4 Brake hose

C Caliper

5 Pin

A
Front brake master cylinder
mounting bolt
!
ITEM N·m
kgf-m lb-ft

6 Pad mounting pin

B Brake hose union bolt

A 10 1.0 7.0

7 Brake pad spring

C Air bleeder valve

B 23 2.3 16.5

8 Brake pad

D Brake caliper mounting bolt

C 7.50.755.5

9 Piston seal

D 39 3.9 28.0
