COOLING AND LUBRICATION SYSTEM 6-21
OIL COOLER

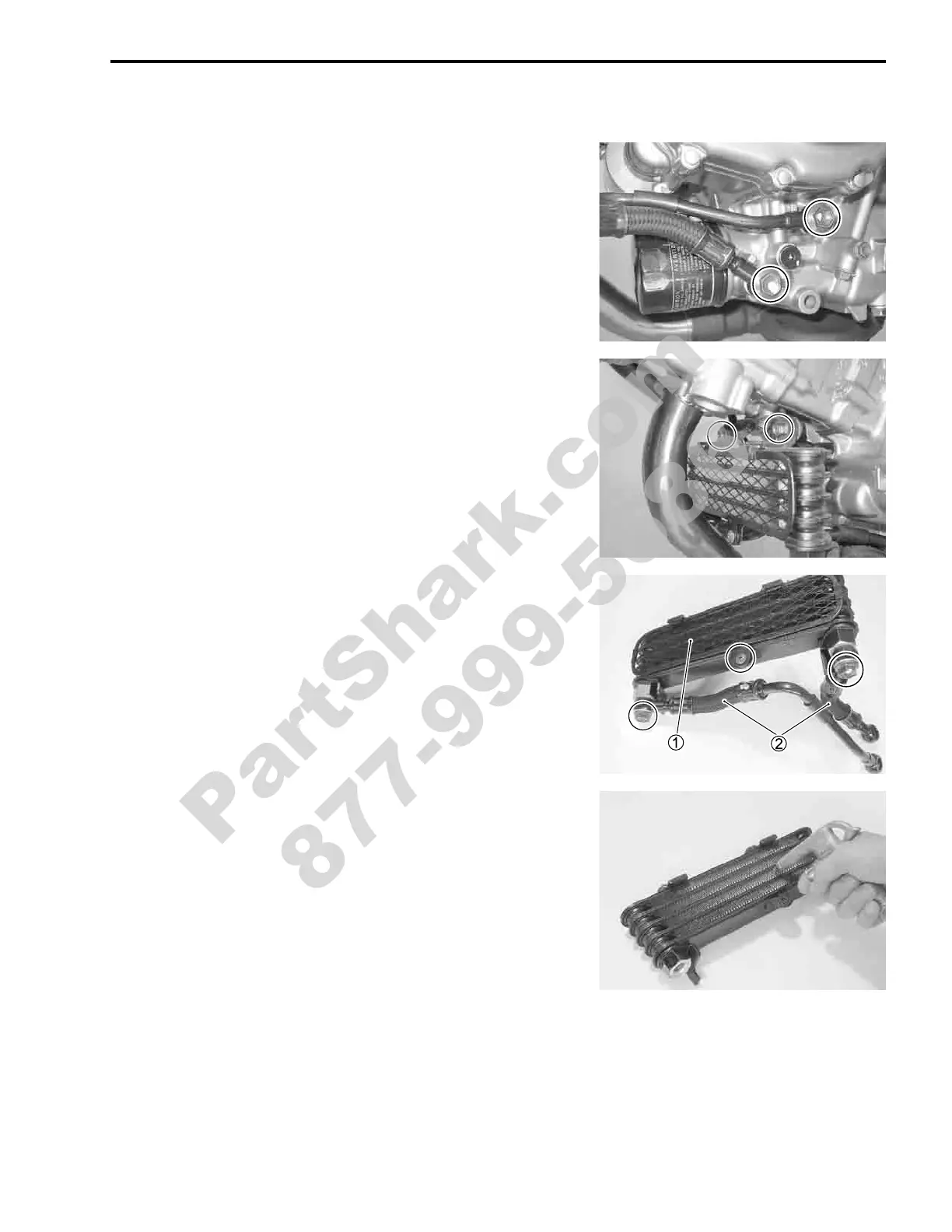

REMOVAL
• Drain the engine oil. (#2-13)
• Disconnect the oil cooler hoses.
• Remove the oil cooler.
• Remove the oil cooler fin guard net

1.
• Remove the oil hoses

2.
INSPECTION AND CLEANING
Inspect the oil cooler and hose joints for oil leakage. If any
defect are found, replace the oil cooler and oil hoses with the
new ones.
Road dirt or trash stuck to the fins must be removed.
Use of compressed air is recommended for this cleaning.
