10-6 EMISSION CONTROL INFORMATION
(FOR E-33: K7)
PAIR (AIR SUPPLY) SYSTEM INSPECTION
HOSES
• Inspect the hoses for wear or damage.
• Inspect that the hoses are securely connected.
PAIR REED VALVE
• Remove the PAIR reed valve cover. (3-36)
• Inspect the reed valve for the carbon deposit.
• If the carbon deposit is found in the reed valve, replace the
PAIR reed valve with a new one
• Installation is in the reverse order of removal.


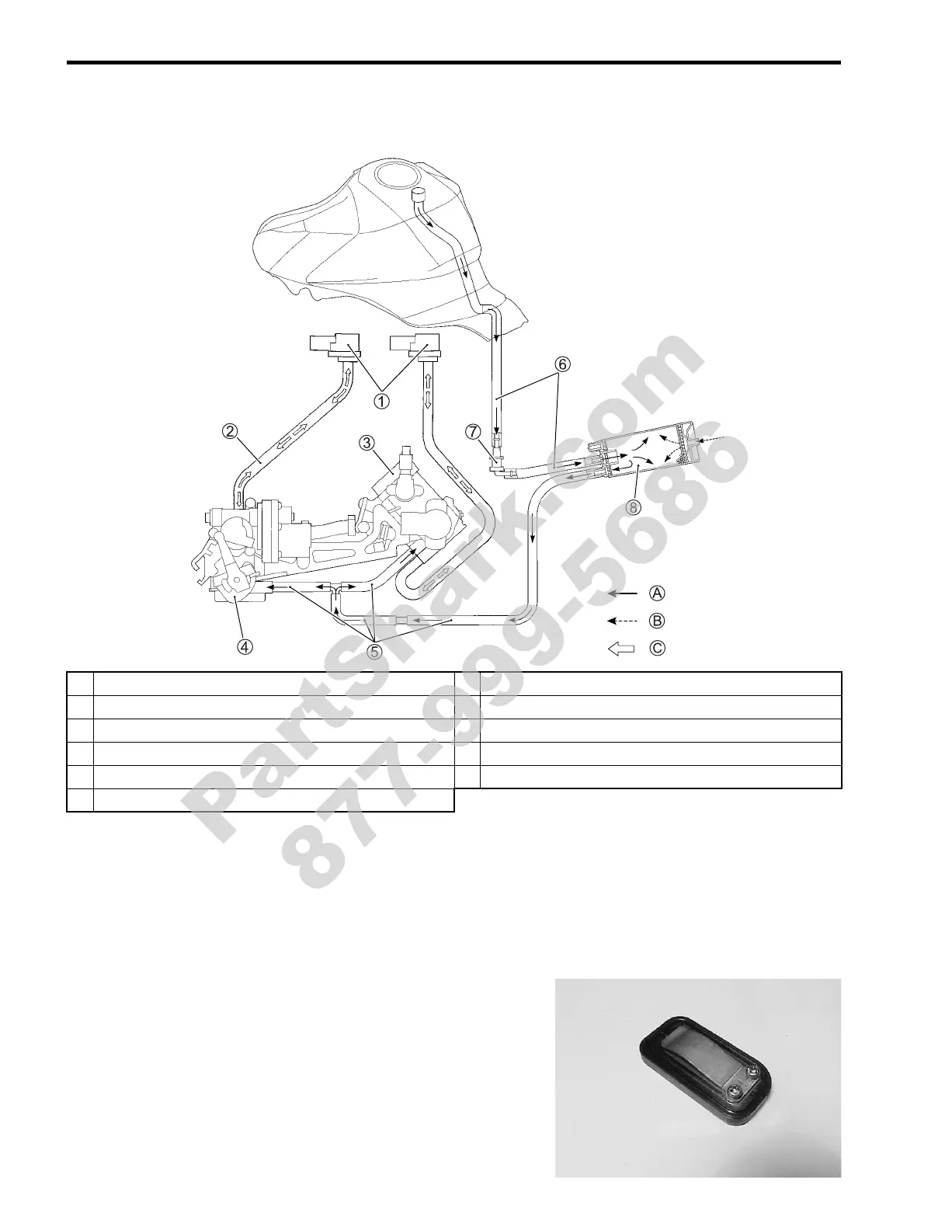

1 IAP sensor

7 Fuel shut-off valve

2 Vacuum hose

8 EVAP canister

3 No.2 Throttle body

A HC VAPOR

4 No.1 Throttle body

B FRESH AIR

5 Purge hose

C VACUUM

6 Surge hose
