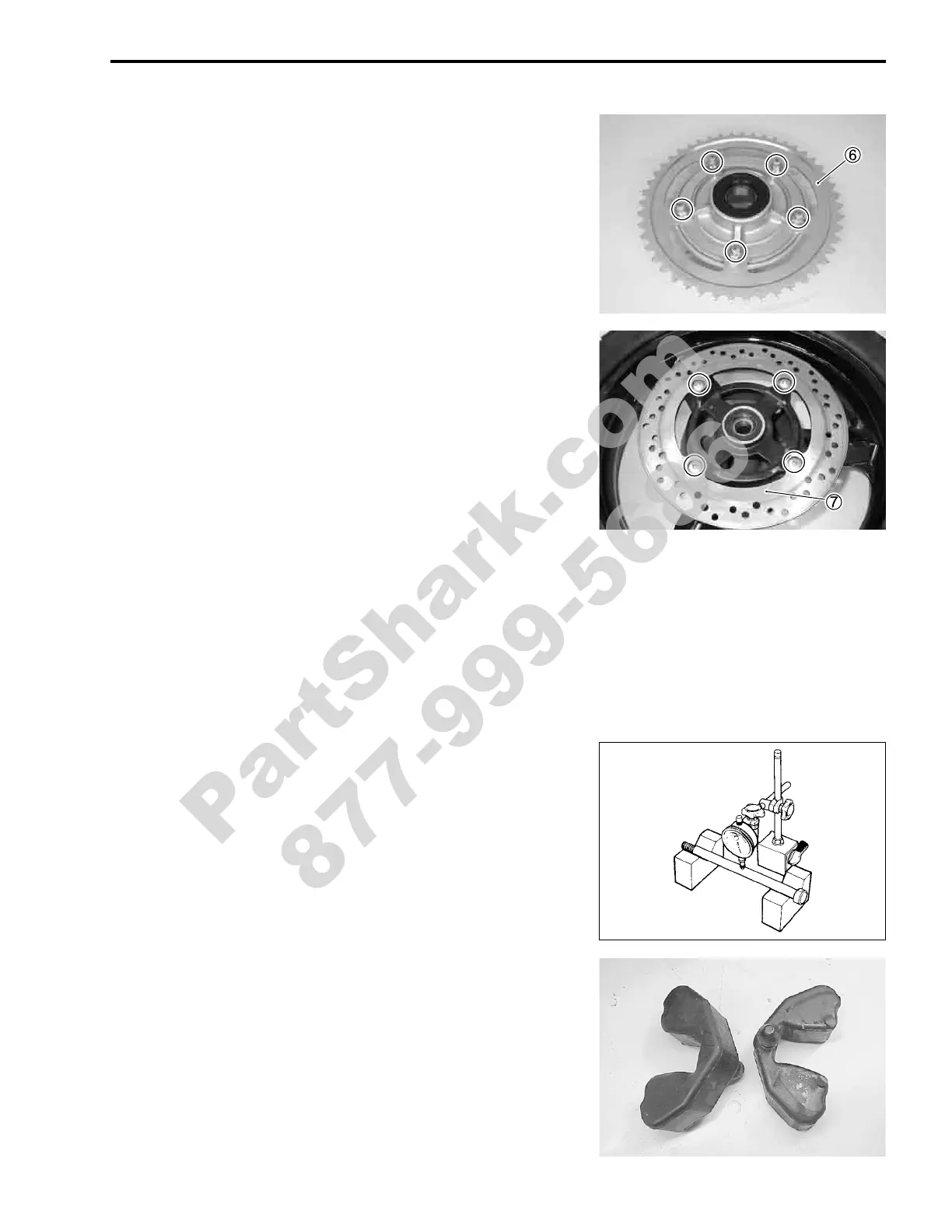

CHASSIS 7-37
• Remove the rear sprocket

6 from the rear sprocket mounting
drum.
• Remove the brake disc

7.
INSPECTION AND DISASSEMBLY
TIRE: ("7-79)
WHEEL: ("7-11 and 7-79)
REAR AXLE
Using a dial gauge, check the rear axle for runout.
If the runout exceeds the limit, replace the rear axle.
% Axle shaft runout: Service Limit: 0.25 mm (0.010 in)
$ 09900-20607: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
WHEEL DAMPER
Inspect the dampers for wear and damage.
Replace the damper if there is anything unusual.
