CHASSIS 7-27
REMOVAL

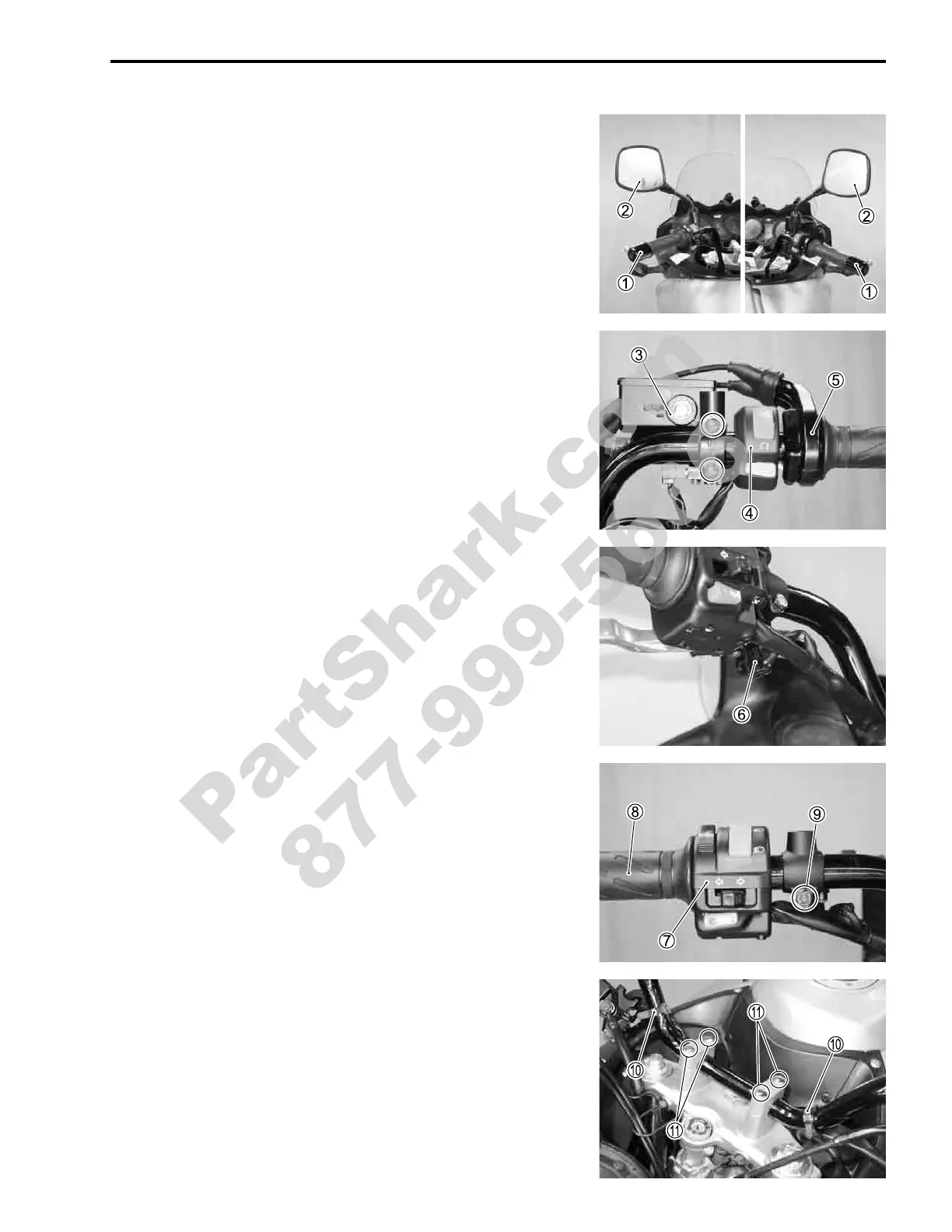

HANDLEBARS
• Remove the handlebar balancers

1.
• Remove the rear view mirrors

2.
NOTE:
Do not remove the handlebar balancer mounting screw before
removing the handlebar balancer. Slightly loosen the mounting
screw, and then pull the balancer assembly out of handlebars.
• Remove the front brake master cylinder

3.
• Remove the right handlebar switch box

4 and throttle case

5.
• Disconnect the clutch switch lead wire coupler

6.
• Remove the left handlebar switch box

7.
• Remove the grip rubber

8.
• Loosen the clutch lever holder bolt

9.
• Disconnect the clamps

0.
• Remove the clamp bolt caps

A.
