FUEL SYSTEM AND THROTTLE BODY 5-5

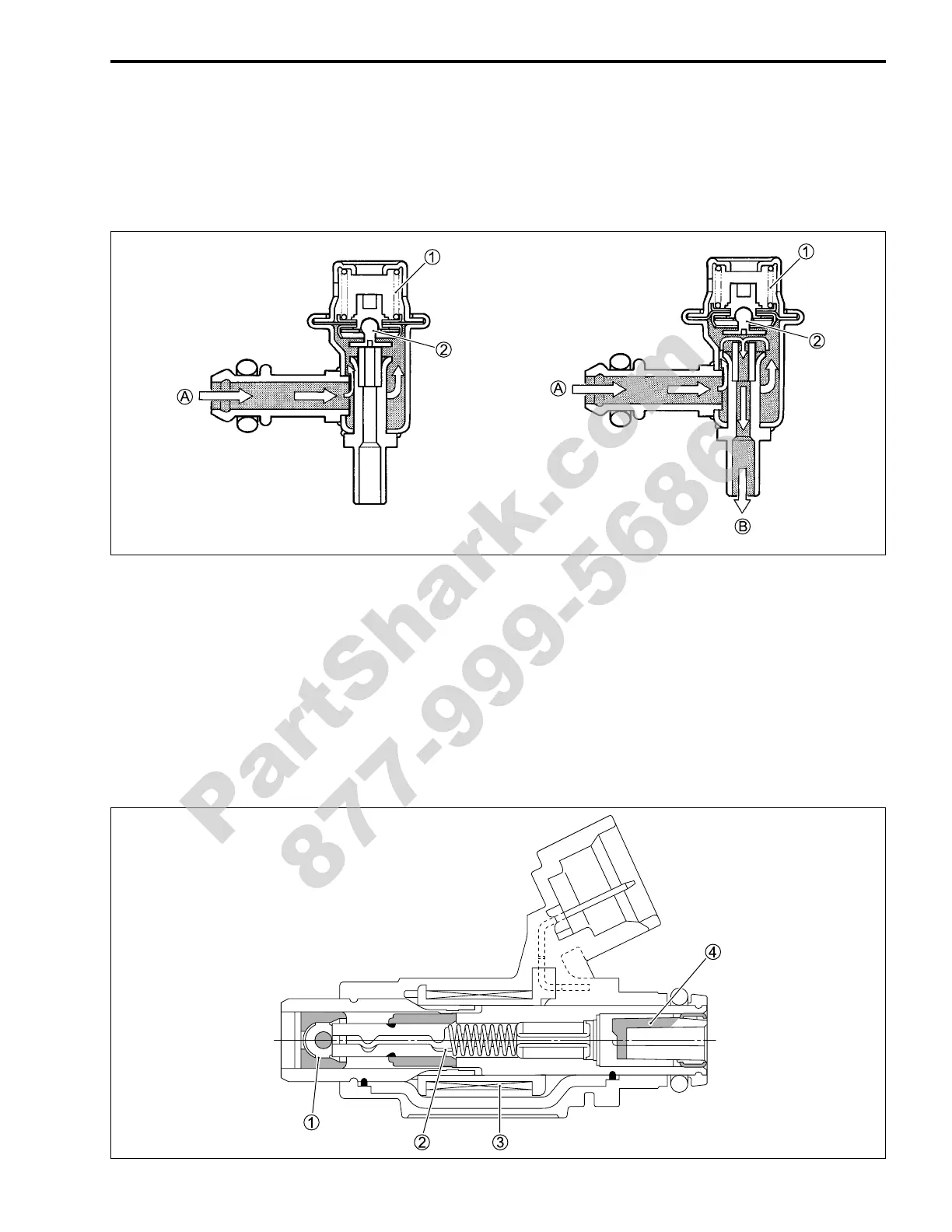

FUEL PRESSURE REGULATOR
The fuel pressure regulator consists of the spring and valve. It keeps absolute fuel pressure of 300 kPa
(3.0 kgf/cm
2
, 43 psi) to be applied to the injector at all times.
When the fuel pressure rises more than 300 kPa (3.0 kgf/cm
2
, 43 psi), the fuel pushes the valve in the regu-
lator open and excess fuel returns to the fuel tank.

1 Spring

2 Valve

A Fuel from fuel pump

B Fuel returns to the fuel tank
FUEL INJECTOR
The fuel injector consists of the solenoid coil, plunger, needle valve and filter.
It is an electromagnetic type injection nozzle which injects fuel in the throttle body according to the signal
from the ECM.
When the solenoid coil of the injector is energized by the ECM, it becomes an electromagnet and attracts
the plunger. At the same time, the needle valve incorporated with the plunger opens and the injector which
is under the fuel pressure injects fuel in conic dispersion. As the lift stroke of the needle valve of the injector
is set constant, the volume of the fuel injected at one time is determined by the length of time during which
the solenoid coil is energized (injection time).

1 Needle valve

2 Plunger

3 solenoid coil

4 Filter
