3-36 ENGINE
ENGINE COMPONENTS INSPECTION
AND SERVICING
CYLINDER HEAD COVER
DISASSEMBLY
#

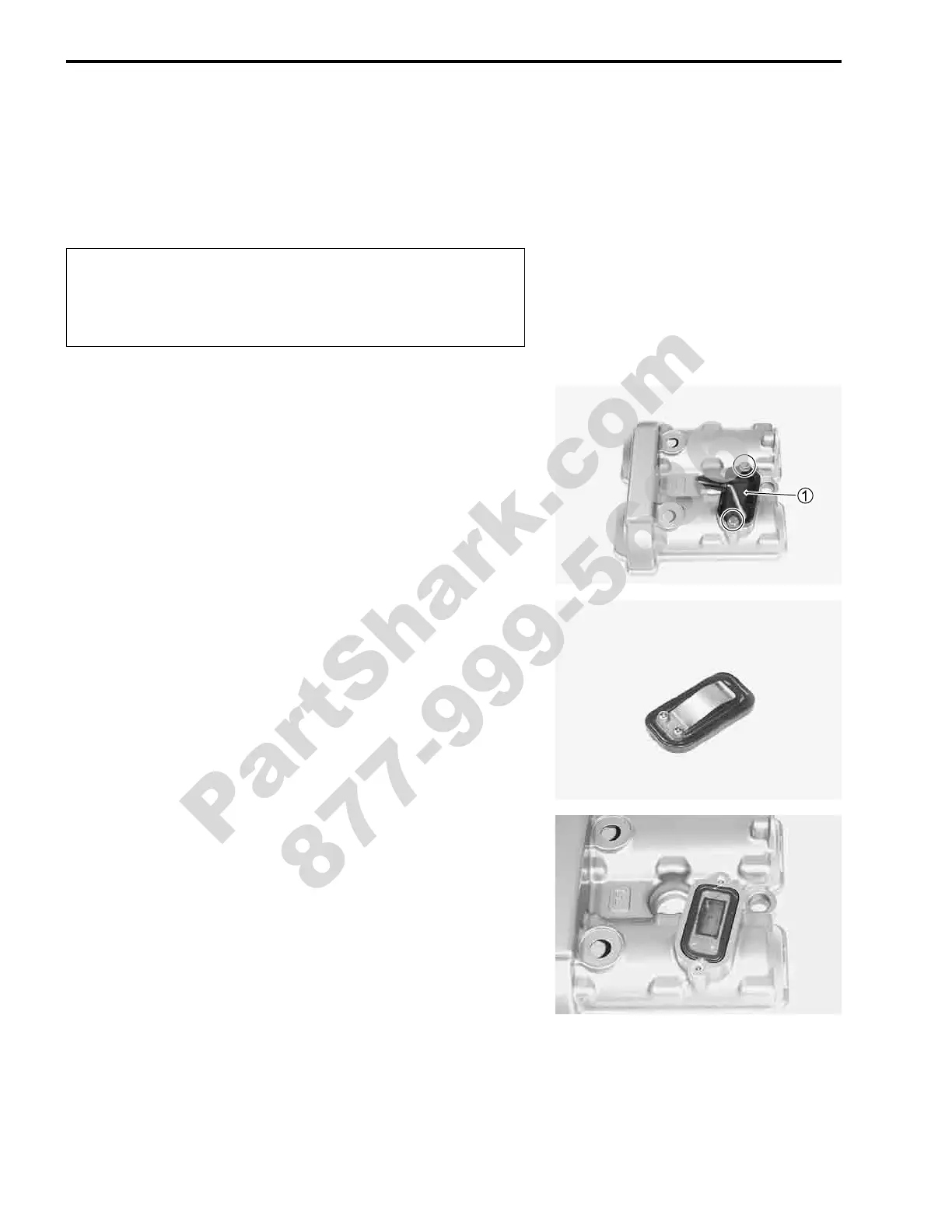

• Remove the PAIR reed valve cover
1.
INSPECTION
Inspect the PAIR reed valve for damage and the carbon deposit.
If any damage or the carbon deposit is found in the reed valve,
replace it with a new one.
REASSEMBLY
• Install the PAIR reed valve as shown.
Be sure to identify each removed part as to its loca-
tion, and lay the parts out in groups designated as
“No.1”, “No.2” “Exhaust”, “Intake”, so that each will
be restored to the original location during assembly.
