3-82 ENGINE
ENGINE REASSEMBLY
Reassemble the engine in the reverse order of disassembly.
The following steps require special attention or precautionary
measures should be taken.
NOTE:
Apply engine oil to each running and sliding part before reas-
sembling.
ENGINE BOTTOM SIDE
TRANSMISSION

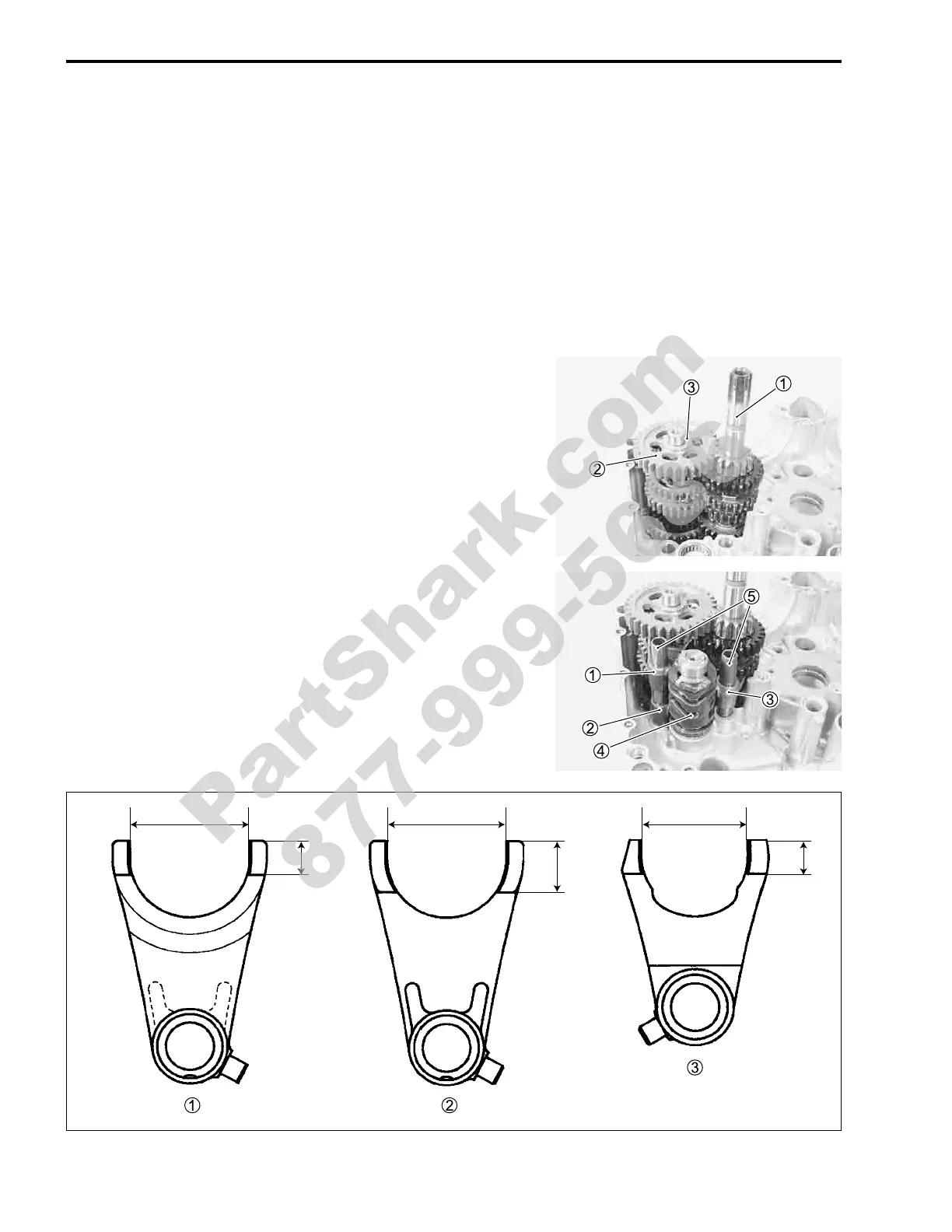

• Install the countershaft assembly

1 and the driveshaft
assembly

2 to the left crankcase half.
• Install the washer

3 onto the driveshaft assembly

2.
GEARSHIFT
• Install the gearshift forks

1/

2/

3, gearshift cam

4 and gear-
shift fork shafts

5.
NOTE:
Identify the gearshift forks as follows.

1 For 5th driven gear

2 For 6th driven gear

3 For 3rd/4th drive gear

1 For 5th driven gear

2 For 6th driven gear

3 For 3rd/4th drive gear
35
15
10
10
35 31
