CHASSIS 7-47
REMOUNTING
Remount the rear shock absorbers in the reverse order of
removal. Pay attention to the following points:

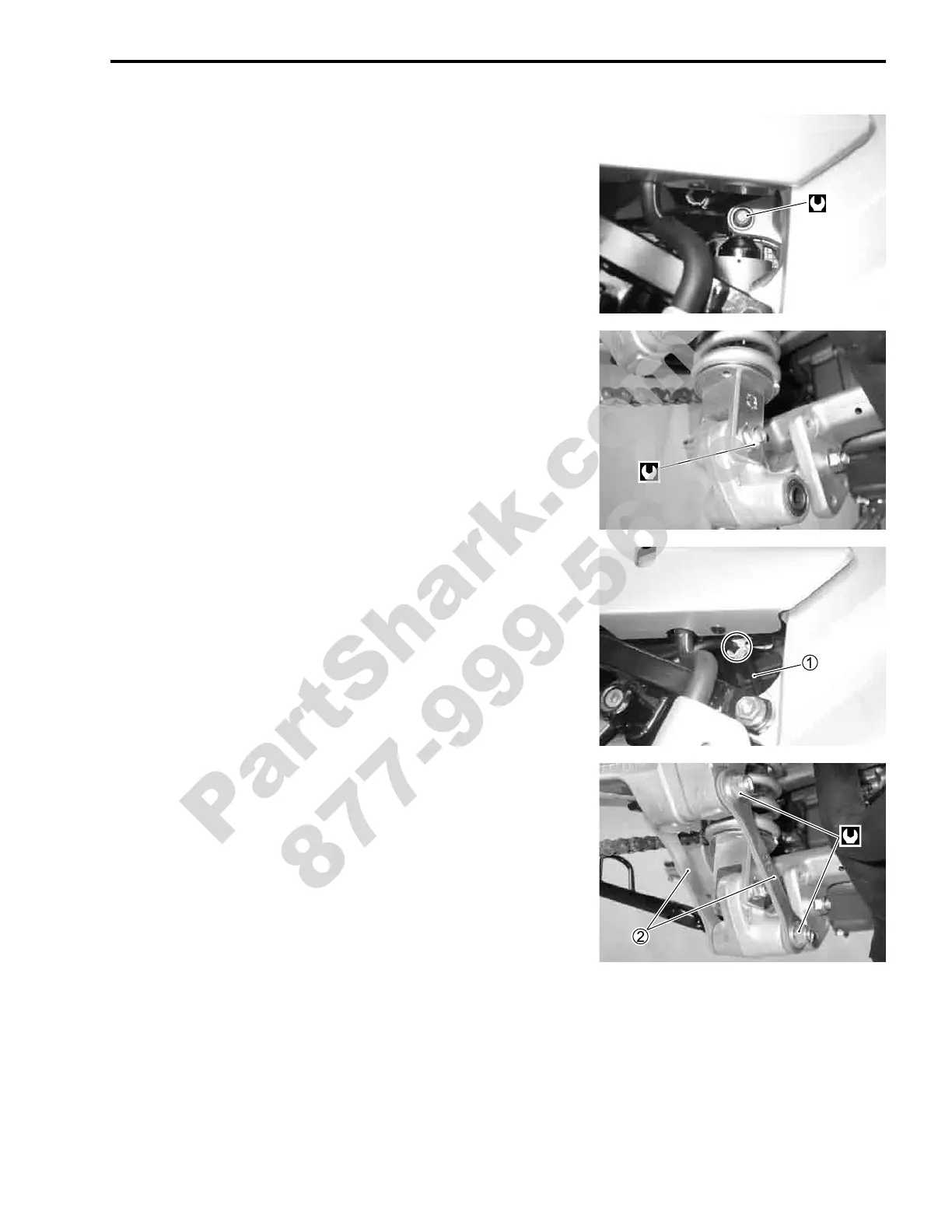

• Install the rear shock absorber and tighten the rear shock
absorber upper/lower mounting nuts.
! Rear shock absorber lower mounting nut:
50 N·m (5.0 kgf-m, 36.0 lb-ft)
Rear shock absorber upper mounting nut:
50 N·m (5.0 kgf-m, 36.0 lb-ft)
NOTE:
When installing the rear shock absorber, the outlet hose of the
prel-load adjuster faces backward.
• Clamp the pre-load adjuster hose

1.
• Install the cushion rod

2.
• Tighten the cushion rod nuts to the specified torque.
! Cushion rod nut: 78 N·m (7.8 kgf-m, 56.5 lb-ft)
