7-54 CHASSIS
REASSEMBLY

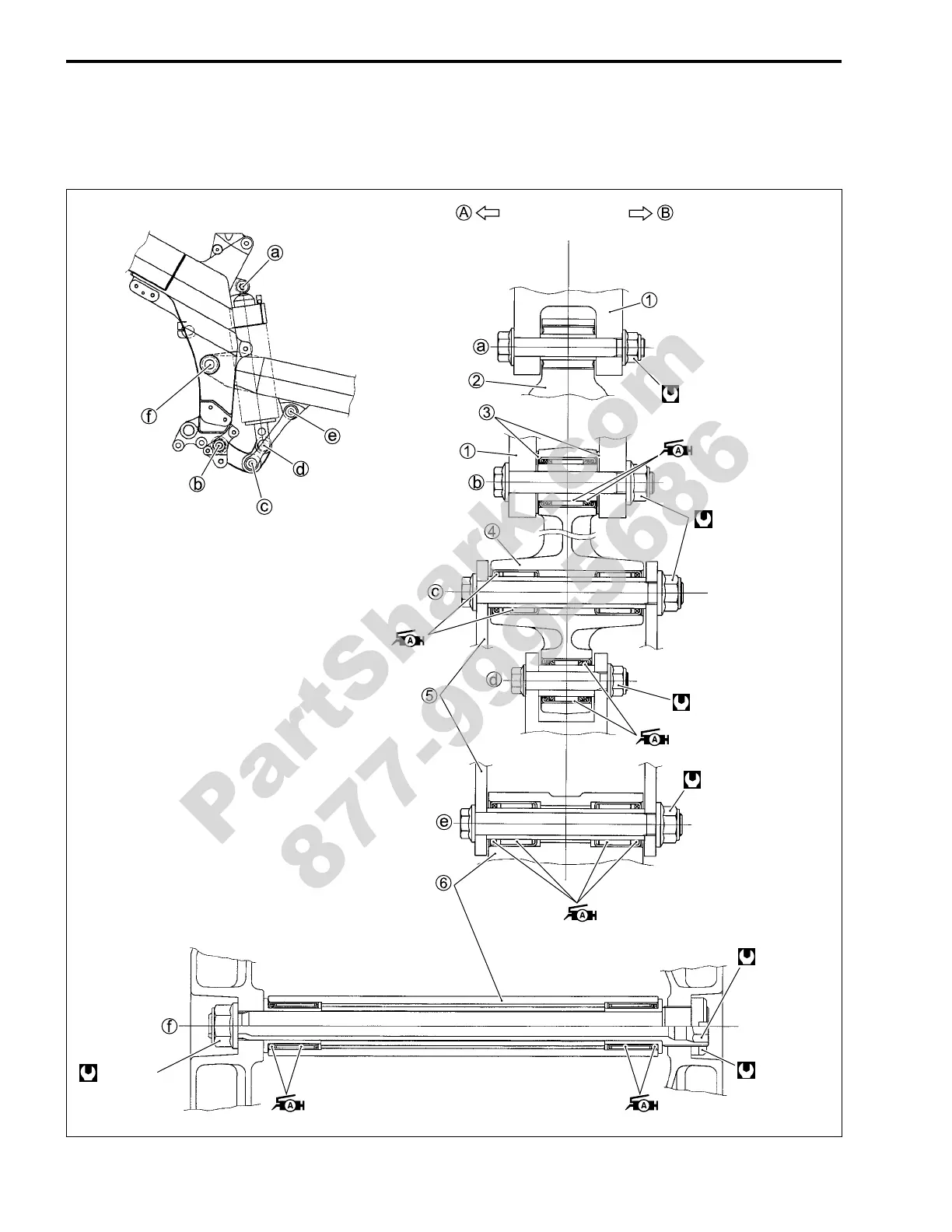

Reassemble the swingarm in the reverse order of disassembly and removal.
Pay attention to the following points:

1 Frame

2 Rear shock absorber

3 Washer

4 Cushion lever

5 Cushion rod

6 Swingarm

A Left

B Right
50 N·m
5.0 kgf-m
36.0 lb-ft
()
50 N·m
5.0 kgf-m
36.0 lb-ft
()
90 N·m
9.0 kgf-m
65.0 lb-ft
()
78 N·m
7.8 kgf-m
56.5 lb-ft
()
78 N·m
7.8 kgf-m
56.5 lb-ft
()
15 N·m
1.5 kgf-m
11.0 lb-ft
()
100 N·m
10.0 kgf-m
72.5 lb-ft
()
