CHASSIS 7-57
CUSHION LEVER AND CUSHION ROD

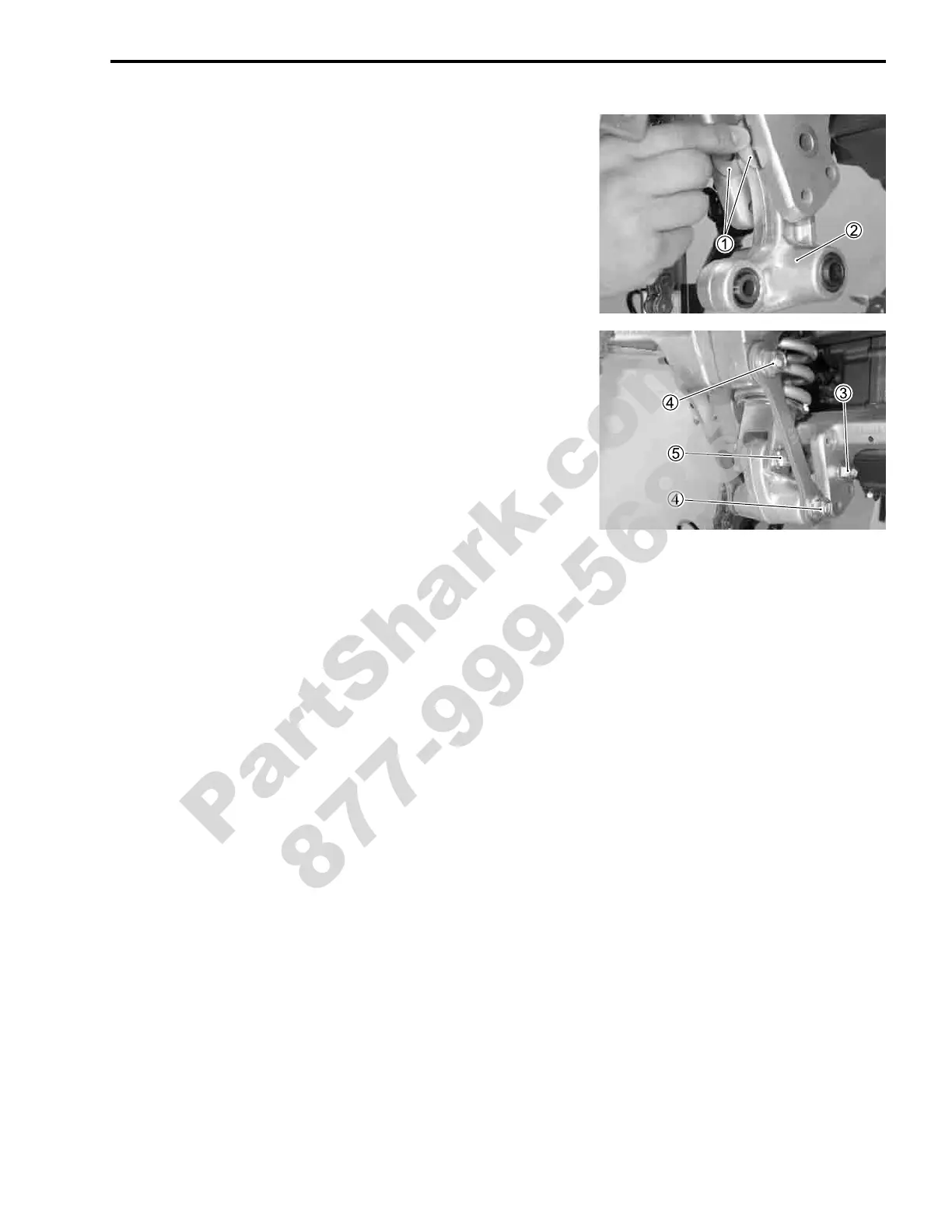

• Install the washers

1 and cushion lever

2.
NOTE:
Insert the cushion lever mounting bolt from the left side.
(
"
7-54)
• Install the cushion rod and rear shock absorber.
NOTE:
Insert the cushion rod mounting bolts and rear shock absorber
mounting bolts from the left side. (
"
7-54)
• Tighten the cushion lever nut

3, cushion rod nut

4 and rear
shock absorber lower mounting nut

5 to the specified torque.
! Cushion lever nut: 78 N·m (7.8 kgf-m, 56.5 lb-ft)
Cushion rod nut: 78 N·m (7.8 kgf-m, 56.5 lb-ft)
Rear shock absorber lower mounting nut:
50 N·m (5.0 kgf-m, 36.0 lb-ft)
• Install the rear wheel. ("7-40)
• Install the exhaust pipe and muffler. ("3-14)
FINAL INSPECTION AND ADJUSTMENT
After installing the rear suspension and wheel, the following
adjustments are required before driving.
* Drive chain: ("2-21)
* Tire pressure: ("7-82)
* Chassis bolts and nuts: ("2-28)
