ELECTRICAL SYSTEM 8-37
RELAYS

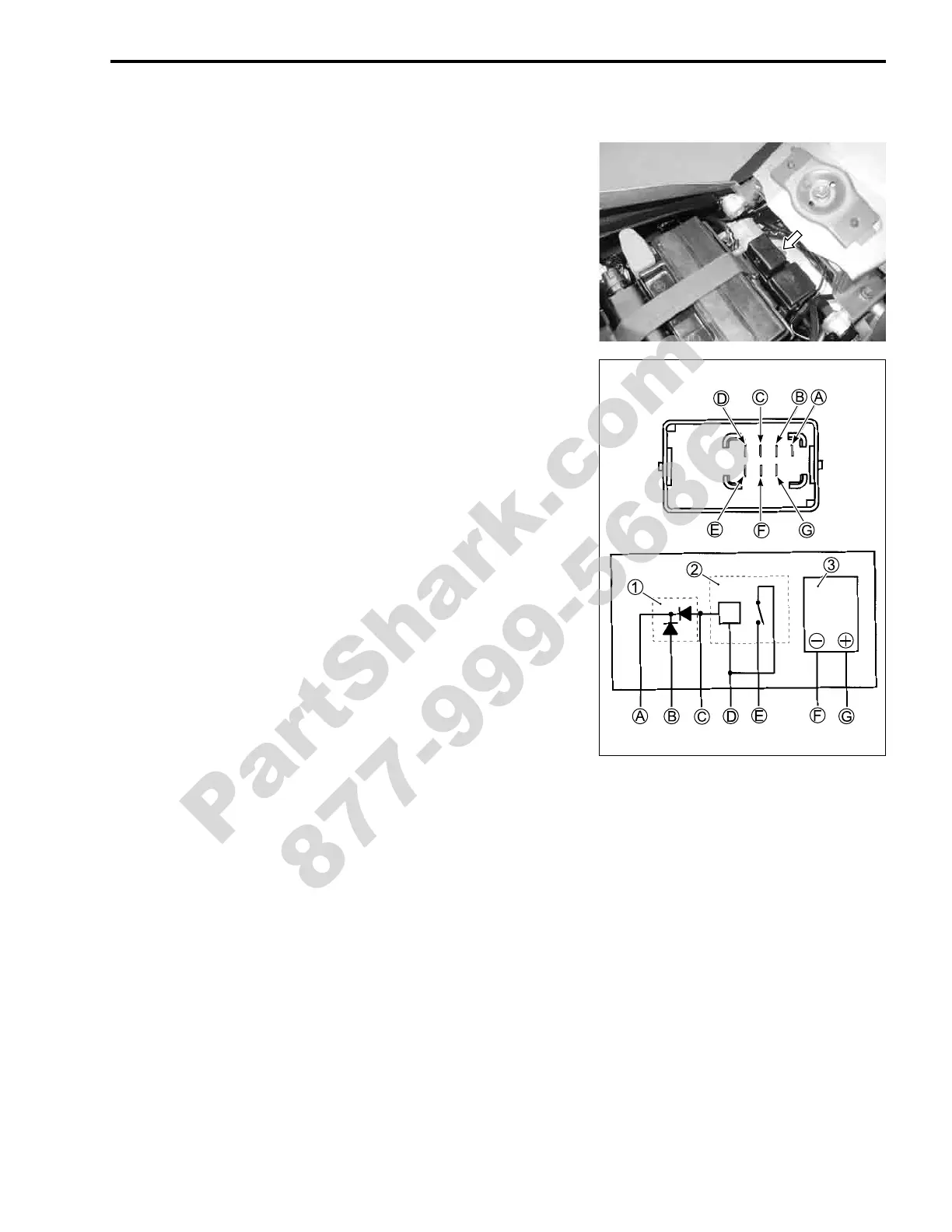

TURN SIGNAL/SIDE-STAND RELAY
The turn signal/side-stand relay is composed of the turn signal
relay, side-stand relay and diode.
INSPECTION
Before removing the turn signal/side-stand relay, check the
operation of the turn signal light.
If the turn signal light does not illuminate, inspect the bulb, turn
signal switch and circuit connection.
If the bulb, turn signal switch and circuit connection are OK, the
turn signal relay may be faulty; therefore, replace the turn signal/
side-stand relay with a new one.
NOTE:
* Make sure that the battery is fully charged.
* Refer to the page 8-22 for the side-stand relay and diode
inspection.

1 Diode

2 Side-stand relay

3 Turn signal relay
STARTER RELAY
(!8-19)
FUEL PUMP RELAY
(!5-10)
