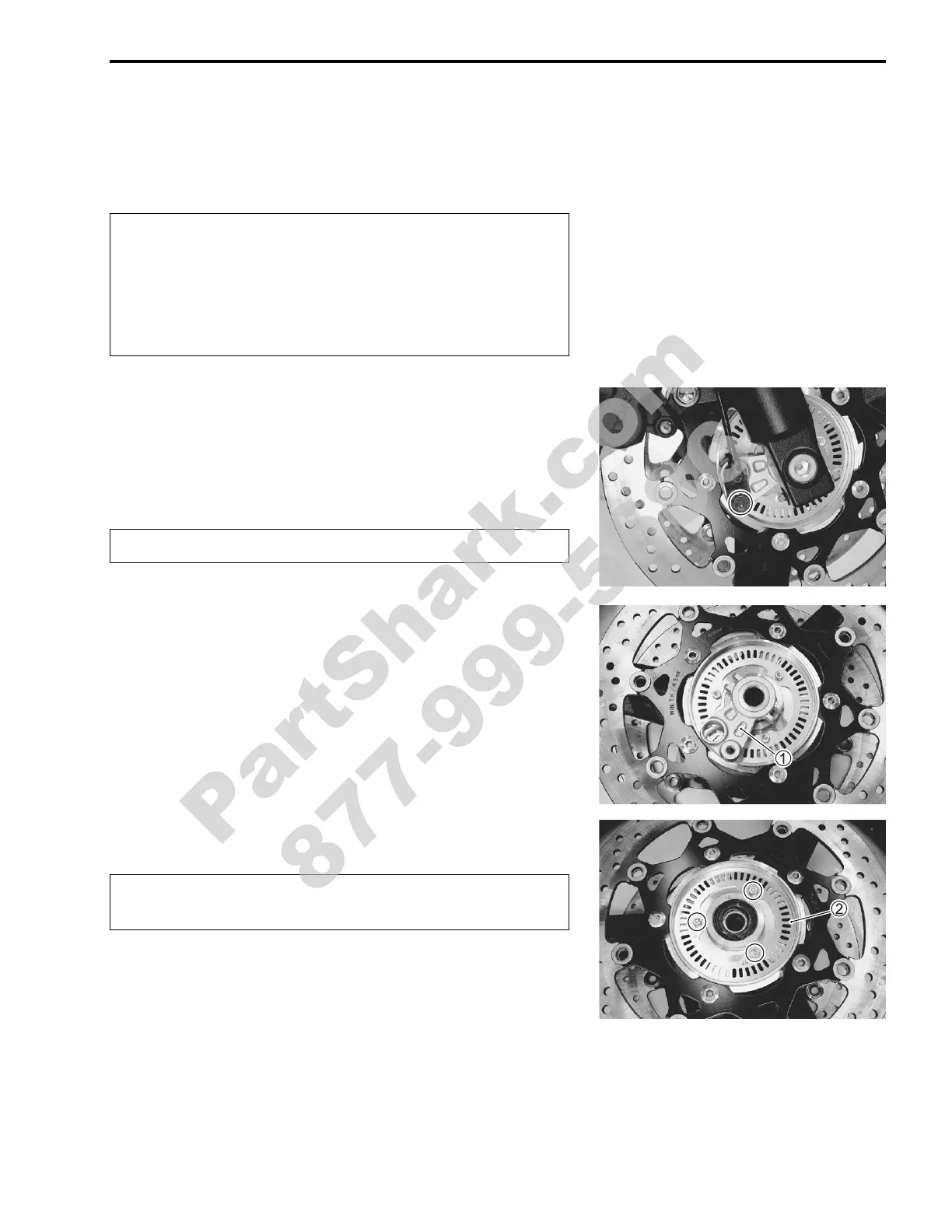

ABS COMPONENT REMOVAL, INSPECTION AND INSTALLATION
FRONT WHEEL SPEED SENSOR/SENSOR ROTOR
REMOVAL
%
• Raise the front wheel off the ground and support the motorcy-
cle with a jack or wooden block.
• Remove the front wheel speed sensor by removing the
mounting bolt.
• Remove the front wheel assembly. (!DL650K4 7-10)
"
• Remove the front wheel speed sensor bracket 1.
• Remove the front wheel speed sensor rotor 2.
%
* The ABS is made up of many precision parts; never
subject it to strong impacts or allow it to become
dirty or dusty.
* Do not hit the sensor rotor when dismounting the
wheel.
* The wheel speed sensor cannot be disassembled.
Make sure that the motorcycle is supported securely.
When replacing the tire, make sure not to damage the
sensor rotor.
DL650K7/AK7 (’07-MODEL) 13-119
